SELECT A DIAGRAM
01 - Top And Console, Lit/optional

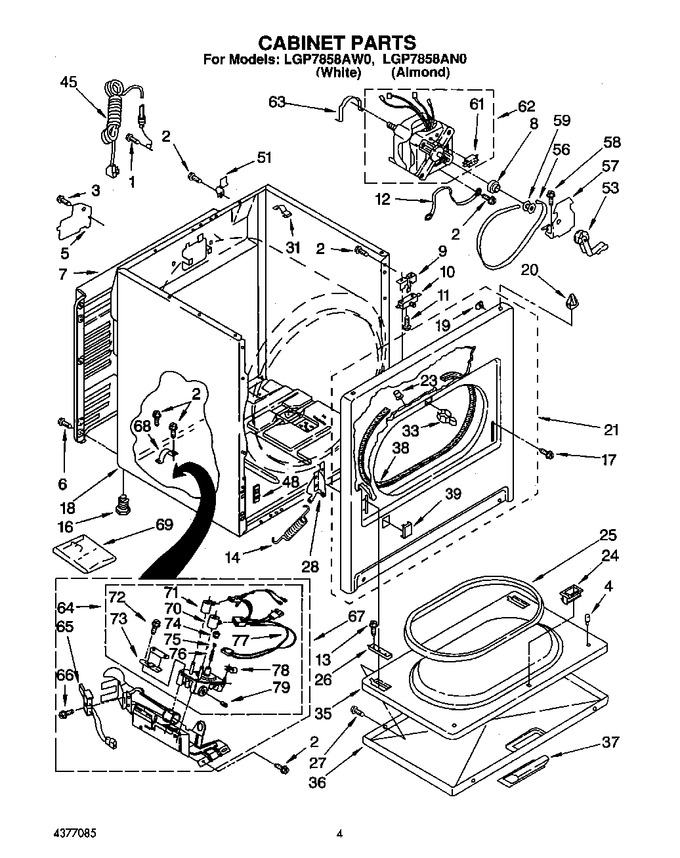

02 - Cabinet
03 - Bulkhead
04 - 694670 Burner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10850756 | Screw, 10-32 X 1/2 (external Ground) (Replaces: 697776) |
|
$ 7.76 | |||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 3 | WP693995 | Screw, 10-16 X 1/2 (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 4 | 238614 | Bumper |
|
$ 80.76 | |||||
| 5 | W11736322 | Cover, Block (Replaces: 690893) |
|
- | |||||
| 6 | WP489069 | Screw, Hex Washer Head (Replaces: 693994) |
|
Immediately | $ 7.86 | ||||
| 7 | 348364 | Panel, Rear |
|
- | |||||
| 8 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 132.46 | ||||
| 9 | WP691581 | Lever, Door Switch (Replaces: 691581) |
|
Immediately | $ 8.09 | ||||
| 10 | W10820036 | Switch, Door (Replaces: 3397503) |
|
Immediately | $ 30.50 | ||||
| 11 | WP98129 | Screw, 6-20 X 1-3/8 (Replaces: 98129) |
|
$ 7.56 | |||||
| 12 | 690236 | Wire, Ground |
|
- | |||||
| 13 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 14 | WPW10041960 | Spring, Door (2) (Replaces: 692495) |
|
Immediately | $ 40.67 | ||||
| 16 | 49621 | Foot, Dryer (4) (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 17 | 342043 | Screw |
|
- | |||||
| 18 | 3394118 | Cabinet (white) |
|
- | |||||
| 18 | 3394119 | Cabinet (almond) |
|
- | |||||
| 19 | WP98234 | Clip, Ground (2) (Replaces: 98234) |
|
Immediately | $ 11.39 | ||||
| 20 | WP18776 | Lock, Front Top (2) (Replaces: 690363) |
|
Immediately | $ 12.68 | ||||
| 21 | 279740 | Panel Front (white) (Replaces: 3395197) |
|
$ 361.97 | |||||
| 21 | 3395198 | Panel, Front (almond) |
|
- | |||||
| 23 | 279220 | Clip, Felt Pad (2) (Replaces: 685203) |
|
$ 20.65 | |||||
| 24 | 279570 | Catch, Door Assembly (Replaces: 690081) |
|
Immediately | $ 8.89 | ||||
| 25 | W10906683 | Seal, Door (Replaces: 3390731) |
|
$ 128.53 | |||||
| 26 | W11252547 | Clip, Hinge (2) (Replaces: 337189) |
|
$ 21.39 | |||||
| 27 | WP694091 | Screw (Replaces: 694091) |
|
$ 7.19 | |||||
| 28 | WP8066057 | Hinge, L.h. (Replaces: 692501) |
|
$ 96.14 | |||||
| 28 | WP8066056 | Hinge, R.h. (Replaces: 692498) |
|
Immediately | $ 98.56 | ||||
| 31 | WP98997 | Clip, Harness (Replaces: 98997) |
|
$ 11.09 | |||||
| 33 | 279570 | Strike, Panel (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 35 | WP695737 | Door, Rear (Replaces: 695737) |
|
$ 254.56 | |||||
| 36 | 3393550 | Door, Front (almond) |
|
- | |||||
| 36 | WP3393549 | Door, Front (white) (Replaces: 3393549) |
|
$ 176.51 | |||||
| 37 | WP348721 | Handle, Door (white) (Replaces: 690270) |
|
$ 77.89 | |||||
| 37 | 690271 | Handle, Door (almond) |
|
- | |||||
| 38 | W11035878 | Seal & Bearing Assembly (Replaces: 692493) |
|
Immediately | $ 78.78 | ||||
| 39 | 3394976 | Plug, Front Panel (almond) |
|
- | |||||
| 39 | 3394975 | Plug, Front Panel (white) |
|
$ 5.70 | |||||
| 45 | W11222083 | Cord, Power (Replaces: 344020) |
|
$ 120.59 | |||||
| 48 | W10854425 | Clip, Front Panel (Replaces: 3394083) |
|
Immediately | $ 15.56 | ||||
| 51 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 7.82 | |||||
| 53 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 22.47 | ||||
| 56 | 341241 | Belt, Drive (Replaces: 660996) |
|
Immediately | $ 18.15 | ||||
| 57 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 121.57 | ||||
| 58 | 3400500 | Bolt, 5/16-18 X 3/4 (Replaces: 172455) |
|
Immediately | $ 13.37 | ||||
| 59 | WP8066184 | Pulley 60 Hz (Replaces: 3389627) |
|
Immediately | $ 51.02 | ||||
| 61 | 279827 | Switch (use W/3391886 Motor) (Replaces: 3388235) |
|
Immediately | $ 191.95 | ||||
| 62 | 279827 | Motor Assembly (60 Hz.) (Replaces: 3391886) |
|
Immediately | $ 191.95 | ||||
| 63 | WP660658 | Clamp, Motor (2) (Replaces: 660658) |
|
$ 7.83 | |||||
| 63 | WP660658 | (alt.) (Replaces: 685441) |
|
$ 7.83 | |||||
| 63 | WP660658 | (alt.) (Replaces: 343481) |
|
$ 7.83 | |||||
| 64 | 279923 | Valve, Gas 60 Hz. (complete) (Replaces: 694054) |
|
Immediately | $ 286.03 | ||||
| 65 | 279311 | Ignitor (Replaces: 660991) |
|
Immediately | $ 78.90 | ||||
| 65 | 279311 | (alt.) (Replaces: 686590) |
|
Immediately | $ 78.90 | ||||
| 66 | WPW10366705 | Lock Screw & Washer (8-32 X 5/8) (Replaces: 3393909) |
|
$ 7.50 | |||||
| 67 | 694670 | Burner Assembly, 60 Hz. (see Pages For Further Burner Breakdown) |
|
- | |||||
| 68 | 341029 | Clamp, Pipe |
|
- | |||||
| 69 | 279243 | Kit, Conversion Type 1 To Type 3 (mfd) |
|
- | |||||
| 69 | 49572A | Kit, Conversion Type 1, 2 & 3 To Type 4 (lpg) (Replaces: 694572) |
|
Immediately | $ 36.19 | ||||
| 70 | 279834 | Coil, 60 Hz. (split) (3 Terminal) (pilot Position) (Replaces: 694539) |
|
Immediately | $ 32.85 | ||||
| 71 | 279834 | Coil, 60 Hz. (2 Terminal) (main) (Replaces: 694540) |
|
Immediately | $ 32.85 | ||||
| 72 | 694421 | Screw, Bracket Mounting (8-32 X 1/2) (2) |
|
- | |||||
| 73 | 694538 | Bracket, Coil |
|
$ 72.05 | |||||
| 74 | WP694424 | Leak Limiter (Replaces: 694424) |
|
$ 34.57 | |||||
| 75 | WP694423 | Screw, Regulator Adjustment (Replaces: 694423) |
|
$ 6.95 | |||||
| 76 | WP694422 | Spring, Regulator (Replaces: 694422) |
|
$ 24.27 | |||||
| 77 | WP3401850 | Harness, Wiring (complete) (Replaces: 694426) |
|
$ 242.98 | |||||
| 78 | 694510 | Clip, Harness |
|
- | |||||
| 79 | W10295523 | Plug, Pipe (Replaces: 239822) |
|
- |
