Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3397545 Panel, Rear Console Appelez-nous -
2 WP3394427 Clip, Harness   (Replaces: 3394427) Special Order $ 7.79

3 WP694419 Buzzer, Mini   (Replaces: 694419) Special Order $ 127.67

4 3358532 Cap, End (l.h.) (almond) Appelez-nous -
4 3358531 Cap, End (l.h.) (white) Appelez-nous -
5 3397269 Connector, Timer Special Order $ 25.55

6 WP688805 Clip   (Replaces: 688805) In-Stock Immediately $ 7.81

7 3402365 For Model Lgp7858az2 Appelez-nous -
7 3402364 For Model Lgp7858aq2 Appelez-nous -
7 3396242 Switch, 4-position Temperature Appelez-nous -
8 3358517 Cap, End (r.h.) (almond) Appelez-nous -
8 3358516 Cap, End (r.h.) (white) Appelez-nous -
9 WP693995 Screw, Hex Washer Head   (Replaces: 693995) In-Stock Immediately $ 7.19

10 WP349639 Handle & Lint Screen Assembly   (Replaces: 349639) In-Stock Immediately $ 37.21

11 689310 Cover, Lint Screen (almond) Appelez-nous -
11 688150 Cover, Lint Screen (white) Appelez-nous -
12 WPW10044480 Hinge, L.h.   (Replaces: 339230) Special Order $ 7.72

12 WPW10044470 Hinge, R.h.   (Replaces: 339229) Special Order $ 7.72

13 W11693756 Screw, 8-18 X 5/8   (Replaces: 688983) In-Stock Immediately $ 14.06

14 3396011 Switch, Temperature Appelez-nous -
15 3393811 Wire, Jumper (violet) Appelez-nous -
15 3393812 Wire, Jumper (blue) Appelez-nous -
16 3396022 Top (white) Appelez-nous -
16 3396023 Top (almond) Appelez-nous -
17 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 7.85

18 3359139 For Model Lgp7858aq2 Appelez-nous -
18 3359140 For Model Lgp7858az2 Appelez-nous -
18 3359137 Pushbutton Appelez-nous -
20 WP388326 Screw, Console   (Replaces: 3353145) Special Order $ 8.11

21 WP3397273 Timer Assembly (60 Hz.)   (Replaces: 3397273) Special Order $ 305.18

22 WPW10476828 Control, Electronic   (Replaces: 3390537) In-Stock Immediately $ 314.22

23 3391885 Connector, Edge Special Order $ 86.40

24 3399964 Connector, 2-position (gas Valve) Appelez-nous -
25 3399963 Connector, 3-position (gas Valve) Appelez-nous -
26 3395683 Connector (motor) In-Stock Immediately $ 51.86

27 3401144 Connector (relay/buzzer) Special Order $ 12.20

29 WPW10139210 Screw, 8-18 X 5/16   (Replaces: 3390646) Special Order $ 7.50

30 WP357213 Nut, Push-in (2)   (Replaces: 357213) Special Order $ 7.39

31 3401638 Harness, Wiring Appelez-nous -
32 3396031 Wire-jumper Assembly Appelez-nous -
39 WP3398094 Relay, Push-to-start   (Replaces: 3398094) In-Stock Immediately $ 88.09

48 WP3957752 Timer Knob Assembly   (Replaces: 3396145) Special Order $ 53.96

48 WP3957752 For Model Lgp7858aq2   (Replaces: 3396146) Special Order $ 53.96

48 3957753 For Model Lgp7858az2   (Replaces: 3396149) Appelez-nous -
49 3396160 Knob, Push To Start Appelez-nous -
49 WP3957800 For Model Lgp7858aq2   (Replaces: 3396161) Special Order $ 50.40

49 WP3957800 For Model Lgp7858az2   (Replaces: 3396164) Special Order $ 50.40

50 717252 Receptacle, 2 Way Appelez-nous -
53 3396295 Bracket, Control Appelez-nous -
54 3398518 Panel, Control For Model (lgp7858an2) Appelez-nous -
54 3398525 Panel, Control For Model (lgp7858aq2) Appelez-nous -
54 3398526 Panel, Control For Model (lgp7858az2) Appelez-nous -
54 3398517 Panel, Control For Model (lgp7858aw2) Appelez-nous -
56 WP3957796 For Model Lgp7858aq2   (Replaces: 3358435) In-Stock Immediately $ 54.83

56 3950760 For Model Lgp7858az2   (Replaces: 3358436) Appelez-nous -
56 WP8538957 Knob, Control   (Replaces: 3358431) Special Order $ 55.74

70 689180 Clip, Retainer Appelez-nous -
72 690853 Wire, Ground Appelez-nous -
LIT3401725 Label, Wiring Diagram Appelez-nous -
350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 38.21

350938 Paint, Pressurized Spray (12 Oz.) (primer,grey) Appelez-nous -
LIT677818 Dryer Appelez-nous -
350956 Paint, Spray 13 Oz. (almond) Special Order $ 51.44

978883 Almond (uncut) Appelez-nous -
72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 12.30

WP72107 Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107) Special Order $ 17.91

LIT3395332 Instructions, Installation Appelez-nous -
LIT3401083 Guide, Use & Care Appelez-nous -
799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46


    View Diagram in Separate Window     Print Icon   Print Part List

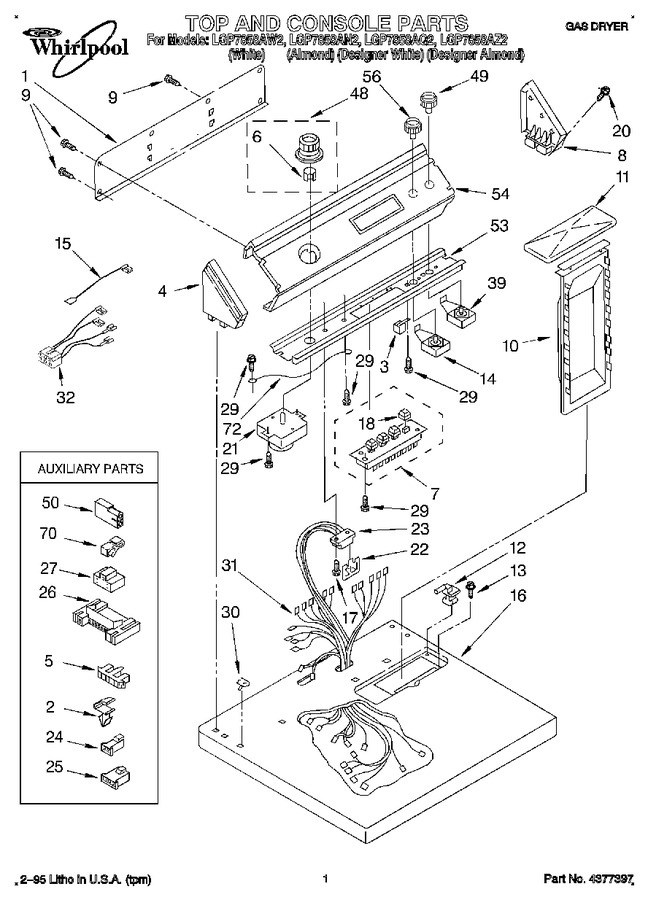

Diagram for LGP7858AQ2
