SELECT A DIAGRAM

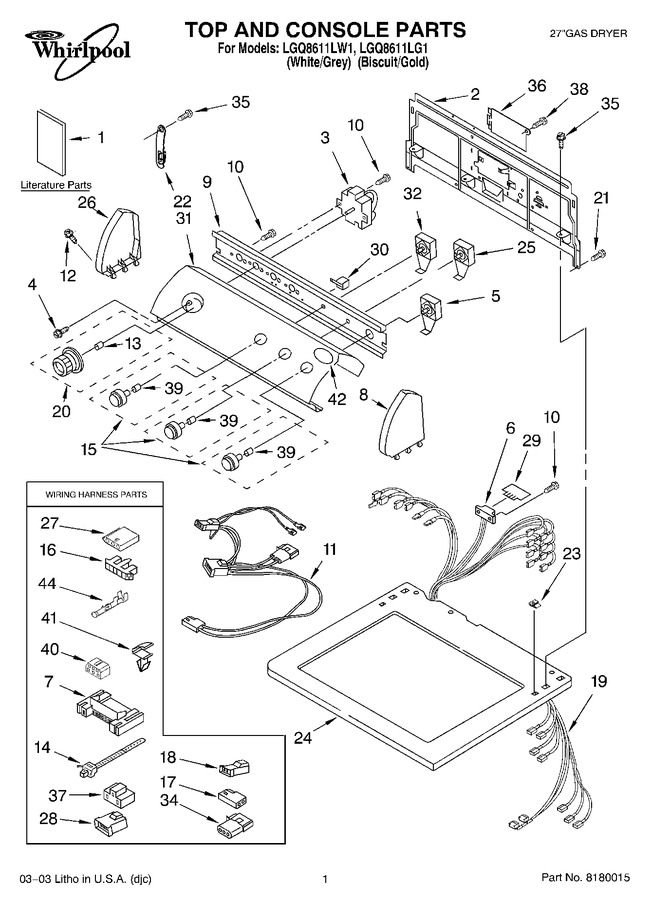

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318276 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8522243		Literature Parts (guide, Use & Care)		Appelez-nous	-
1	LIT677818		Literature Parts (manual, Do-it- Yourself Repair (dryer))		Appelez-nous	-
1	N/A		Following May Be Purchased Do-it-yourself Repair Manuals		Appelez-nous	-
1	LIT8535834		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT8541832		Literature Parts (wiring Diagram)		Appelez-nous	-
2	285909		Panel, Rear Console   (Replaces: 8317305)				$ 261.42
3	WP3406725		Timer   (Replaces: 3406725)				$ 387.01
4	3400859		Screw, Grounding (8-18 X 7/32)				$ 13.88
5	WP3398095		Switch, Push-to-start   (Replaces: 3398095)			Immediately	$ 92.88
6	3391885		Connector, Edge				$ 90.72
7	3395683		Connector (motor)			Immediately	$ 54.45
8	8271362		Cap, End (r.h.) (biscuit)		Appelez-nous	-
8	8271359		Cap, End (r.h.) (white)		Appelez-nous	-
9	8271316		Bracket, Control		Appelez-nous	-
10	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
11	WP3401850		Harness, Gas   (Replaces: 3401850)				$ 255.13
12	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
13	WP688805		Clip   (Replaces: 688805)			Immediately	$ 8.20
14	WP3391018		Tie Cable (push Mount)   (Replaces: 3391018)				$ 33.43
15	8538958		Knob, Control (3) (lgq8611lg1)		Appelez-nous	-
15	WP8538957		Knob, Control (3) (lgq8611lw1)   (Replaces: 8538957)				$ 58.53
16	3397269		Connector, Timer				$ 25.55
17	717252		Receptacle, 2 Way		Appelez-nous	-
18	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 6.02
19	8299948		Harness, Wiring		Appelez-nous	-
20	8538954		Timer Knob Assembly (lgq8611lg1)		Appelez-nous	-
20	WP8557455		Timer Knob Assembly (lgq8611lw1)   (Replaces: 8538953)				$ 59.61
21	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
22	WP8568314		Strap, Console   (Replaces: 8318255)				$ 8.17
23	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
24	8271399		Top (white)		Appelez-nous	-
24	8271401		Top (biscuit)		Appelez-nous	-
25	WP3405156		Switch, Wrinkle Shield   (Replaces: 3405156)				$ 152.79
26	8271365		Cap, End (l.h.) (white)		Appelez-nous	-
26	8271368		Cap, End (l.h.) (biscuit)		Appelez-nous	-
27	3936144		Connector				$ 21.22
28	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 7.30
29	WPW10476828		Control, Electronic   (Replaces: 3390537)			Immediately	$ 329.93
30	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
31	8532623		Panel, Control (includes Illus. 42) (grey)		Appelez-nous	-
31	8532624		Panel, Control (includes Illus. 42) (gold)		Appelez-nous	-
32	8530169		Switch, Temperature				$ 147.06
34	697779		Plug, 3-way		Appelez-nous	-
35	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
36	W10819767		Cover, Terminal Block   (Replaces: 8317340)		Appelez-nous	-
37	3401144		Connector, (pts Relay)				$ 12.81
38	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 8.25
39	WP8536939		Spring Clip   (Replaces: 8536939)			Immediately	$ 8.20
40	3347243		Connector 6-circuit		Appelez-nous	-
41	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
42	3955775		Medallion		Appelez-nous	-
44	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
