01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts

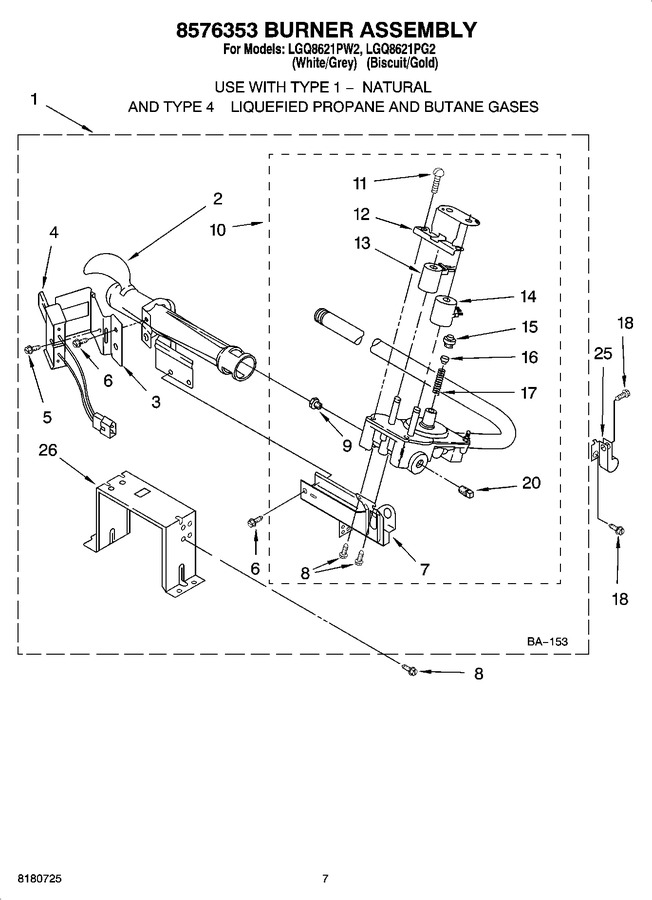

04 - 8576353 Burner Assembly, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 280119 | Burner Assembly 60 Hz. (type 1) (white Rodgers) (Replaces: 8576353) |
|
$ 416.13 | |||||
| 2 | WP693140 | Tube, Burner (Replaces: 688617) |
|
$ 179.88 | |||||
| 3 | WP694298 | Bracket, Ignitor (Replaces: 694298) |
|
$ 25.92 | |||||
| 4 | 279311 | Ignitor (Replaces: 686590) |
|
Immediately | $ 78.90 | ||||
| 5 | WPW10366705 | Screw & Washer (8-32 X 7/8) (Replaces: 3393909) |
|
$ 7.50 | |||||
| 6 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 7 | 3389871 | Base, Burner |
|
$ 79.29 | |||||
| 8 | WP693995 | Screw, 8-18 X 3/8 (Replaces: 3387057) |
|
Immediately | $ 7.19 | ||||
| 9 | WP229742 | Orifice, Burner (type 4) (propane) (Replaces: 234867) |
|
$ 34.85 | |||||
| 9 | 15422 | Orifice, Burner (type 4) (butane) |
|
$ 3,441.42 | |||||
| 9 | WP15418 | Orifice, Burner (type 1) (Replaces: 15418) |
|
$ 35.54 | |||||
| 10 | 279923 | Valve, Gas 60 Hz. (complete) (includes Pipe & Illus. 7). (Replaces: 8281914) |
|
Immediately | $ 286.03 | ||||
| 11 | 694421 | Screw, Bracket Mounting (8-32 X 1/2) (2) |
|
- | |||||
| 12 | 694538 | Bracket, Coil |
|
$ 72.05 | |||||
| 13 | 279834 | Coil, 60 Hz. (2 Terminal) (main) (Replaces: 694540) |
|
Immediately | $ 32.85 | ||||
| 14 | 279834 | Coil, 60 Hz. (split) (3 Terminal) (pilot Position) (Replaces: 694539) |
|
Immediately | $ 32.85 | ||||
| 15 | WP694424 | Leak Limiter (Replaces: 694424) |
|
$ 34.57 | |||||
| 16 | WP694423 | Screw, Regulator Adjustment (Replaces: 694423) |
|
$ 6.95 | |||||
| 17 | WP694422 | Spring, Regulator (Replaces: 694422) |
|
$ 24.27 | |||||
| 18 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 20 | W10295523 | Plug, Pipe (Replaces: 239822) |
|
- | |||||
| 25 | 3387561 | Clamp, Pipe |
|
- | |||||
| 26 | 3389888 | Bracket, Support (Replaces: 3389889) |
|
- | |||||
| 26 | N/A | Following Parts Not Illustrated |
|
- | |||||
| 26 | W11581317 | Conversion Kit (type (1) To Type (4) Lpg) (Replaces: 8576846) |
|
Immediately | $ 93.17 | ||||
| 4392067 | Kit, Dryer Repair |
|
Immediately | $ 62.25 | |||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| 8212450A | Dry Rack (Replaces: 3406911) |
|
Immediately | $ 83.99 | |||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | |||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 26.45 | |||||
| W11224254 | Kit, Dryer Vent Testing (Replaces: 8522199) |
|
$ 11.75 | ||||||
| 346764 | Kit, Hold-down (gas Dryer Mobile Home Installation) |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 |
