01 - Top And Console, Lit/optional


02 - Cabinet


03 - Bulkhead


04 - 8318272 Burner Assembly

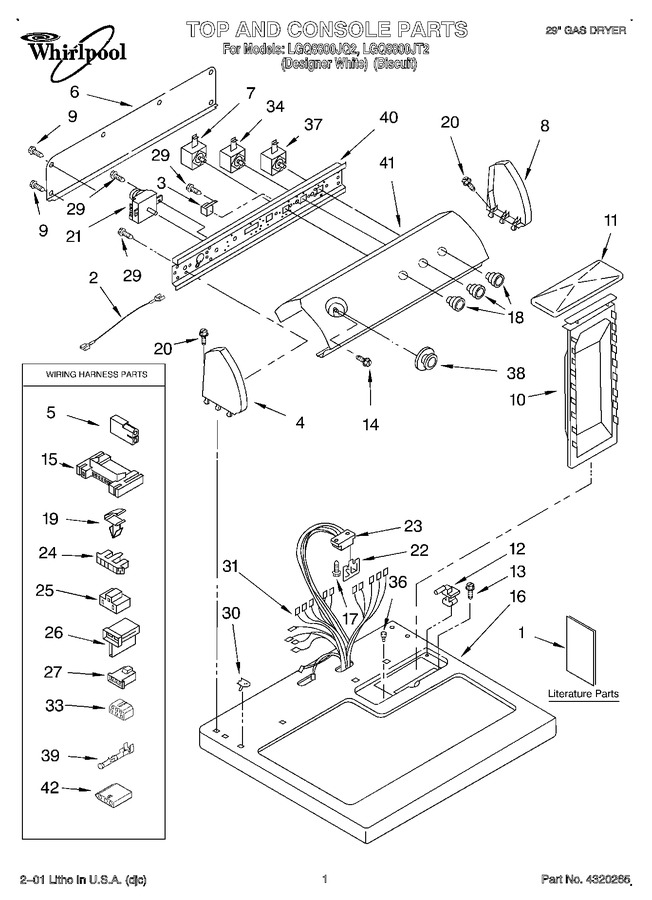

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT3978906		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT8299799		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT8314844		Literature Parts (use & Care Guide)		Appelez-nous	-
2	3401684		Wire, Jumper (black)				$ 34.57
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
4	8271368		Cap, End (l.h.) (biscuit)		Appelez-nous	-
4	8271365		Cap, End (l.h.) (white)		Appelez-nous	-
5	717252		Plug, 2-way Terminal		Appelez-nous	-
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 128.87
7	W11106324		Switch, Temperature   (Replaces: 3405155)				$ 223.93
8	8271359		Cap, End (r.h.) (white)		Appelez-nous	-
8	8271362		Cap, End (r.h.) (biscuit)		Appelez-nous	-
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.19
10	WP349639		Handle & Lint Screen Assembly   (Replaces: 349639)			Immediately	$ 37.21
11	8283380		Cover, Lint Screen (biscuit)		Appelez-nous	-
11	8283378		Cover, Lint Screen (white)				$ 44.80
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 7.72
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 7.72
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	3400859		Screw, Grounding				$ 13.22
15	3395683		Connector (motor)			Immediately	$ 51.86
16	8271390		Top (white)		Appelez-nous	-
16	8271392		Top (biscuit)		Appelez-nous	-
17	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
18	3957797		Knob, Control (3) (biscuit)   (Replaces: 8271348)				$ 50.40
18	WP3957799		Knob, Control (3) (white)   (Replaces: 8271339)				$ 52.44
19	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
20	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
21	WP3406725		Timer Assembly 60 Hz.   (Replaces: 3406725)				$ 368.58
22	WPW10476828		Control, Electronic   (Replaces: 3390537)			Immediately	$ 314.22
23	3391885		Connector, Edge				$ 86.40
24	3397269		Connector, Timer				$ 25.55
25	3401144		Connector, (pts Relay)				$ 12.20
26	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 5.73
27	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 6.95
29	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.50
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
31	8299860		Harness, Wiring		Appelez-nous	-
33	3347243		Connector 6-circuit		Appelez-nous	-
34	3405154		Switch, Finish Guard				$ 152.88
36	297535		Bumper, Lint Lid		Appelez-nous	-
37	WP3398095		Switch, Push-to-start   (Replaces: 3398095)			Immediately	$ 92.88
38	WP3957755		Timer Knob Assembly (biscuit)   (Replaces: 8271404)				$ 2.49
38	WP3957754		Timer Knob Assembly (white)   (Replaces: 8312687)				$ 59.87
39	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
40	8271418		Bracket, Control				$ 57.15
41	3977824		Panel, Control (biscuit)		Appelez-nous	-
41	3977823		Panel, Control (white)		Appelez-nous	-
42	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
42	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
42	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
42	3936144		Connector				$ 20.21
42	3406839		Dry Rack			Immediately	$ 65.68
42	4392899		Biscuit			Immediately	$ 26.45
42	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
42	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
42	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	LIT677818		Dryer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
