SELECT A DIAGRAM

01 - Top And Console, Lit/optional

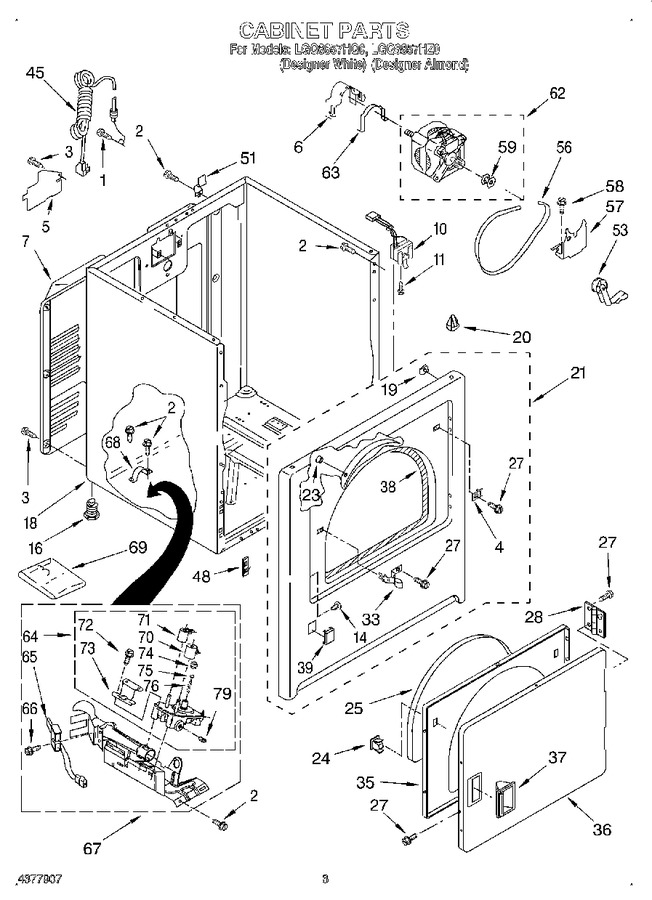

02 - Cabinet


03 - Bulkhead


04 - 3402844 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10850756		Screw, 10-32 X 5/8 (external Ground)   (Replaces: 697776)				$ 7.76
2	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.19
4	WP3403630		Plug, Strike Hole (white)   (Replaces: 3403630)				$ 7.53
4	WP3403630		Plug, Strike Hole (almond)   (Replaces: 3403631)				$ 7.53
5	W11539855		Cover, Block   (Replaces: 3396795)			Immediately	$ 599.76
6	WP3404162		Clamp, Motor (w/shield)   (Replaces: 3404162)			Immediately	$ 7.82
7	280043		Panel, Rear   (Replaces: 3396805)				$ 341.30
10	WP3406105		Door Switch Assembly   (Replaces: 3406105)			Immediately	$ 36.90
11	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 7.70
14	3404414		Plug, Hinge Hole (almond)		Appelez-nous	-
14	WP3404413		Plug, Hinge Hole (white)   (Replaces: 3404413)			Immediately	$ 7.95
16	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
16	49621		Foot - Optional (extended Length Package Of 2 ) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
18	3399585		Cabinet (white)		Appelez-nous	-
18	3399586		Cabinet (almond (includes Illus. Nos. 5, 7, 16, 48, And 57.))		Appelez-nous	-
19	WP98234		Clip, Ground (2)   (Replaces: 98234)			Immediately	$ 11.39
20	WP18776		Lock, Front Top (2)   (Replaces: 690363)			Immediately	$ 12.68
21	3403447		Front Panel Assembly (white)		Appelez-nous	-
21	3403448		Front, Panel Assembly (almond)		Appelez-nous	-
23	279220		Clip, Felt Pad (2)   (Replaces: 685203)				$ 20.65
24	279570		Catch, Door Assembly   (Replaces: 690081)			Immediately	$ 8.89
25	W10861521		Seal, Door   (Replaces: 3405246)			Immediately	$ 58.69
27	WP488627		Screw, 8-18 X 1/2   (Replaces: 342055)				$ 7.57
28	WPW10362431		Hinge, Door   (Replaces: 3405514)			Immediately	$ 7.91
33	W11429589		Strike, Door   (Replaces: 3403431)			Immediately	$ 20.99
35	WP3402341		Door, Rear   (Replaces: 3402341)				$ 198.77
36	3402336		Door, Front (almond)		Appelez-nous	-
36	W10861227		Door, Front (white)   (Replaces: 3402335)				$ 256.44
37	3405185		Handle, Door (almond)				$ 6.18
37	WP3405184		Handle, Door (white)   (Replaces: 3405184)				$ 76.01
38	W11035878		Seal & Bearing Assembly   (Replaces: 3406129)			Immediately	$ 78.78
39	3394976		Plug, Front Panel (almond)		Appelez-nous	-
39	3394975		Plug, Front Panel (white)				$ 5.70
45	W11222083		Cord, Power   (Replaces: 344020)				$ 120.59
48	W10854425		Clip, Front Panel   (Replaces: 3394083)			Immediately	$ 15.56
51	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 7.82
53	WP691366		Idler & Pulley Assembly   (Replaces: 691366)			Immediately	$ 22.47
56	341241		Belt, Drive   (Replaces: 660996)			Immediately	$ 18.15
57	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 121.57
58	3400500		Bolt, 5/16-18 X 3/4			Immediately	$ 13.37
59	WP8066184		Pulley, 60 Hz.   (Replaces: 3394341)			Immediately	$ 51.02
62	279827		Motor Assembly 60 Hz.   (Replaces: 3976707)			Immediately	$ 191.95
63	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.83
64	279923		Valve, Gas 60 Hz. (complete)   (Replaces: 3401775)			Immediately	$ 286.03
65	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
66	WPW10366705		Lock Screw & Washer (8-32 X 5/8)   (Replaces: 3393909)				$ 7.50
67	3402844		Burner Assembly, 60 Hz. (see Parts Page For Further Burner Breakdown)		Appelez-nous	-
68	341029		Clamp, Pipe		Appelez-nous	-
69	49572A		Kit, Conversion Type 1, 2 & 3 To Type 4 (lpg)   (Replaces: 694572)			Immediately	$ 36.19
70	279834		Coil, 60 Hz. (split) (3 Terminal) (pilot Position)   (Replaces: 694539)			Immediately	$ 32.85
71	279834		Coil, 60 Hz. (2 Terminal) (main)   (Replaces: 694540)			Immediately	$ 32.85
72	694421		Screw, Bracket Mounting (8-32 X 1/2)		Appelez-nous	-
73	694538		Bracket, Coil				$ 72.05
74	WP694424		Leak Limiter   (Replaces: 694424)				$ 34.57
75	WP694423		Screw, Regulator Adjustment   (Replaces: 694423)				$ 6.95
76	WP694422		Spring, Regulator   (Replaces: 694422)				$ 24.27
79	W10295523		Plug, Pipe   (Replaces: 239822)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
