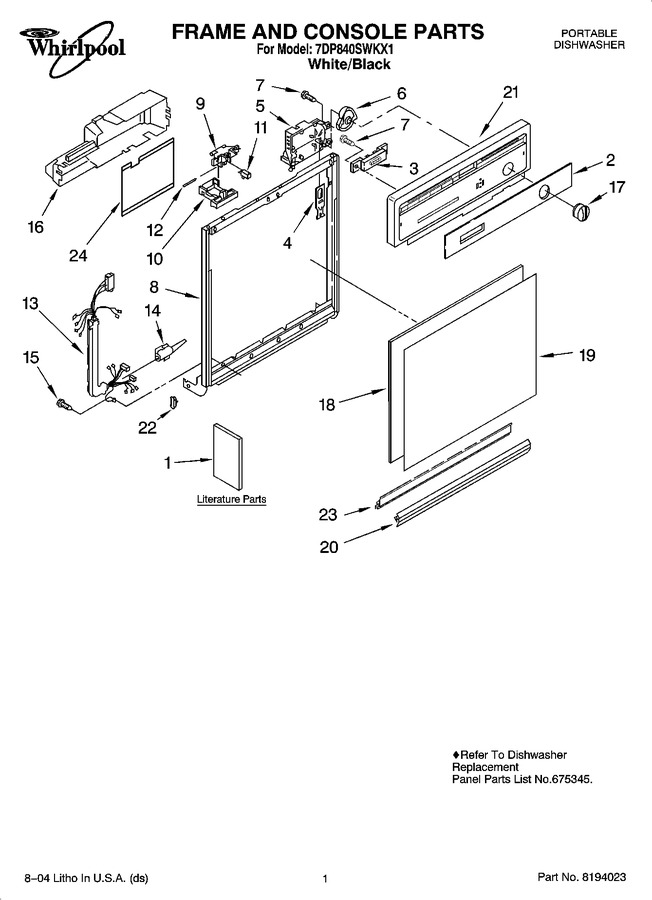

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3367007 | Instructions, Installation (supplement) (locating Your Water Supply) |
|
- | |||||
| 1 | 3385765 | Guide, Use & Care |
|
- | |||||
| 1 | 3385449 | Diagram, Wiring |
|
- | |||||
| 1 | 677967 | Do-it Yourself Manual |
|
- | |||||
| 2 | 8269385 | Insert, Console |
|
- | |||||
| 3 | 8269365 | Switch |
|
- | |||||
| 4 | WP3369529 | Follower, Cam (Replaces: 3369529) |
|
$ 65.43 | |||||
| 5 | WP8535372 | Timer (Replaces: 8535372) |
|
$ 333.90 | |||||
| 6 | WP8271510 | Cam (Replaces: 8271510) |
|
$ 8.96 | |||||
| 7 | WP304231 | Screw, 8-18 X 1/2 (5) (Replaces: 304231) |
|
Immediately | $ 8.14 | ||||
| 8 | 3374711 | Door Frame (includes Item 23) |
|
$ 158.94 | |||||
| 9 | WP3380854 | Bolt, Latch (Replaces: 3380854) |
|
Immediately | $ 66.11 | ||||
| 10 | 3369457 | Lever, Latch |
|
$ 5.84 | |||||
| 11 | 3369325 | Switch, (2) |
|
- | |||||
| 12 | 3368955 | Pin, Switch (2) |
|
$ 7.75 | |||||
| 13 | 8275122 | Harness And Protector |
|
- | |||||
| 14 | 3376405 | Elbow, Harness |
|
$ 14.02 | |||||
| 15 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 8.24 | |||||
| 16 | 8269526 | Cover, Control |
|
- | |||||
| 17 | 8275308 | Knob, Timer |
|
$ 75.05 | |||||
| 18 | 3368979 | Spacer |
|
$ 38.99 | |||||
| 19 | WP3369769 | Front Panel (white/black) (Replaces: 3369769) |
|
$ 59.42 | |||||
| 20 | 3374010 | Retainer, Panel |
|
$ 40.68 | |||||
| 21 | 8275189 | Console (includes Item 2) |
|
- | |||||
| 22 | WP3373234 | Bearing Spring (2) (Replaces: 3373234) |
|
$ 11.01 | |||||
| 23 | WP3374716 | Channel, Retainer (also Order Item 20) (Replaces: 3374716) |
|
$ 100.22 | |||||
| 24 | 3379671 | Shield, Control Cover Refer To Dishwasher Replacement Panel Parts List No.675345. |
|
- |
