SELECT A DIAGRAM

01 - Bulkhead, Lit/optional

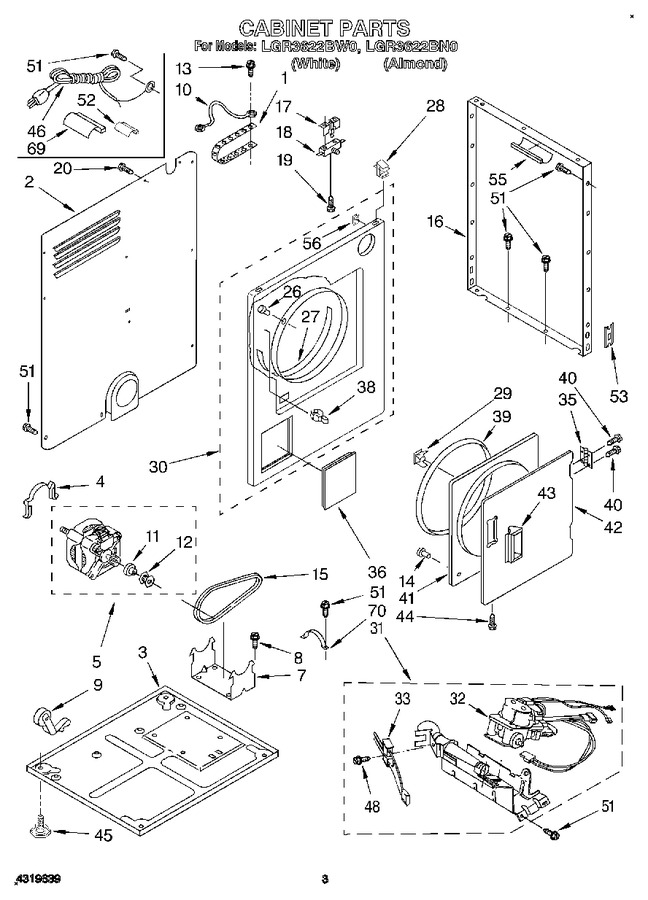

02 - Cabinet


03 - 4319410 Burner Assembly


04 - Top And Console


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	22965		Strap, Ground		Appelez-nous	-
2	4319401		Panel, Rear		Appelez-nous	-
3	WP348726		Base Assembly   (Replaces: 4319418)				$ 292.16
4	WP660658		Clip, Motor   (Replaces: 4319313)				$ 8.22
5	279827		Motor, Drive 60 Hz.   (Replaces: 3398046)			Immediately	$ 217.20
7	696541		Base, Motor				$ 97.86
8	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 8.25
9	WP691366		Idler & Pulley   (Replaces: 691366)			Immediately	$ 22.47
10	364089		Wire, Ground		Appelez-nous	-
11	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 139.08
12	8066051		Pulley, 60 Hz.   (Replaces: 3396426)				$ 118.78
13	132848		Screw, 10-24 X 1		Appelez-nous	-
14	238614		Bumper				$ 84.79
15	3394652		Belt, Drive			Immediately	$ 52.32
16	4319382		Panel, Side (2) (white)		Appelez-nous	-
16	4319406		Panel, Side (2) (almond)		Appelez-nous	-
17	WP691581		Clip, Door Switch   (Replaces: 295998)			Immediately	$ 8.49
18	W10820036		Switch, Door   (Replaces: 347207)			Immediately	$ 30.50
19	WP98129		Screw, 6-20 X 1-3/8   (Replaces: 98129)				$ 8.18
20	W10850756		Screw, Ground   (Replaces: 697776)				$ 8.20
26	279220		Clip, Felt Pad (2)   (Replaces: 685203)				$ 23.55
27	279264		Seal & Bearing Assembly   (Replaces: 349462)			Immediately	$ 85.45
28	WP345670		Lock, Top   (Replaces: 345670)			Immediately	$ 8.09
29	WP3389441		Catch, Door   (Replaces: 3389441)			Immediately	$ 7.29
30	4319403		Front Panel (white)		Appelez-nous	-
30	4319409		Front Panel (almond (when Ordering Any Of The Above Panels, Key No. 31, Page 7, Must Also Be Ordered		Appelez-nous	-
31	4319410		Burner, Complete (refer To Burner Assembly Part Page For Further Burner Breakdown)		Appelez-nous	-
32	279923		Valve, Gas (complete)   (Replaces: 694054)			Immediately	$ 286.03
33	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
35	9830792		Hinge & Pin Assembly (2)		Appelez-nous	-
36	693040		Door, Access (almond)		Appelez-nous	-
36	693039		Door, Access (white)		Appelez-nous	-
38	279570		Strike, Panel   (Replaces: 696144)			Immediately	$ 8.89
39	W11613302		Seal, Door   (Replaces: 3390734)				$ 56.31
40	WP694091		Screw, Door Hinge (4)   (Replaces: 694091)				$ 7.55
41	4319397		Door, Rear		Appelez-nous	-
42	4319333		Door, Front (almond)		Appelez-nous	-
42	4319327		Door, Front (white)		Appelez-nous	-
43	WP3405184		Handle, Door (white)   (Replaces: 4319329)				$ 79.81
43	4319334		Handle, Door (almond)		Appelez-nous	-
44	WP694091		Screw, Door (4)   (Replaces: 694091)				$ 7.55
45	WP233550		Foot, Dryer (4)   (Replaces: 233550)				$ 8.35
46	4319443		Cord, Power		Appelez-nous	-
48	WPW10366705		Screw & Washer   (Replaces: 3393909)				$ 7.88
51	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
52	686768		Protector, Support (7``)		Appelez-nous	-
53	W10854425		Clip, Front Panel (2)   (Replaces: 3394083)			Immediately	$ 16.34
55	9830279		Protector, Support		Appelez-nous	-
56	WP98234		Clip, Panel (2)   (Replaces: 98234)			Immediately	$ 11.96
69	686770		Protector, Support (16``)		Appelez-nous	-
70	341029		Clamp, Pipe (rear)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
