SELECT A DIAGRAM

01 - Top And Console, Lit/optional


02 - Cabinet


03 - 3402844 Burner Assembly


04 - Bulkhead

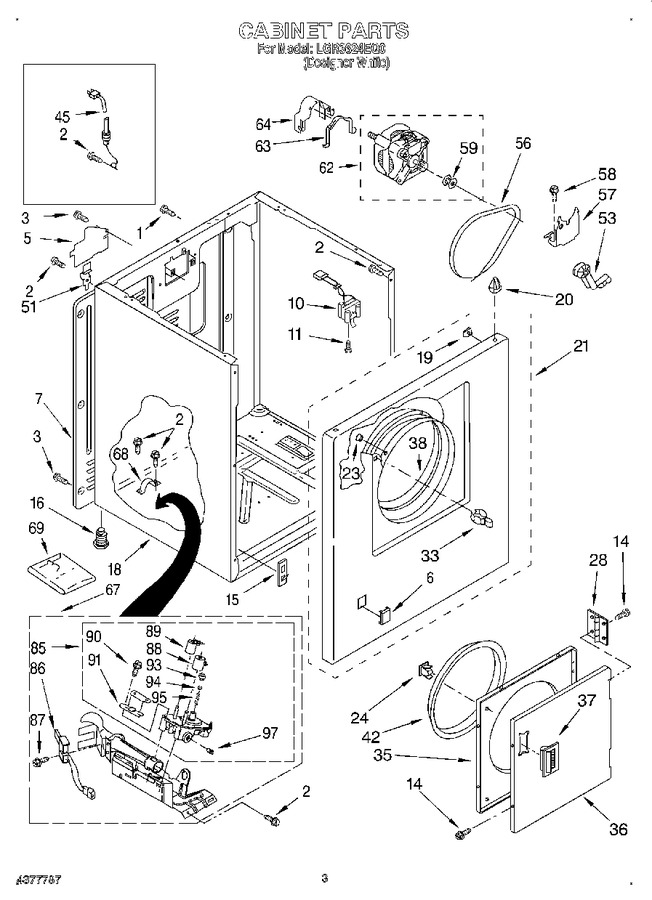

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10850756		Screw, 10-16 X 5/8   (Replaces: 697776)				$ 8.20
2	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
5	W11539855		Cover, Block   (Replaces: 3396795)			Immediately	$ 629.75
6	3394975		Plug, Front Panel (white)				$ 5.70
7	3396807		Panel, Rear		Appelez-nous	-
10	WP3406102		Door Switch Assembly   (Replaces: 3406102)				$ 41.66
11	WP3395530		Screw, 6-20 X 7/8 (2)   (Replaces: 697773)				$ 8.57
14	WP694091		Screw, 8-18 X 3/8   (Replaces: 694091)				$ 7.55
15	W10854425		Clip, Front Panel   (Replaces: 3394083)			Immediately	$ 16.34
16	49621		Foot, Dryer (4)   (Replaces: 3392100)			Immediately	$ 8.55
18	3399580		Cabinet Assembly (includes Illus. Nos. 5, 7, 15, 16 & 57) (white)		Appelez-nous	-
19	WP98234		Clip, Ground (2)   (Replaces: 98234)			Immediately	$ 11.96
20	WP18776		Lock, Front Top (2)   (Replaces: 690363)			Immediately	$ 13.31
21	3394895		Front Panel Assembly (white)		Appelez-nous	-
23	279220		Clip, Felt Pad   (Replaces: 685203)				$ 23.55
24	WP3389441		Catch, Door   (Replaces: 3389441)				$ 6.20
28	WP348023		Hinge & Pin Assembly (2)   (Replaces: 348023)				$ 9.32
33	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
35	280077		Door, Rear   (Replaces: 695656)				$ 207.46
36	WP348205		Door, Front (white)   (Replaces: 348205)			Immediately	$ 154.76
37	WP686711		Handle, Door (white)   (Replaces: 686711)			Immediately	$ 8.35
38	279264		Seal & Bearing Assembly   (Replaces: 349462)			Immediately	$ 74.52
42	W11613302		Seal, Door   (Replaces: 3390734)				$ 56.31
45	W11222083		Cord, Power   (Replaces: 344020)				$ 126.62
51	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 8.21
53	WP691366		Idler & Pulley Assembly   (Replaces: 691366)			Immediately	$ 22.47
56	341241		Belt, Drive   (Replaces: 660996)			Immediately	$ 18.15
57	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 127.65
58	3400500		Bolt, 5/16-18 X 3/4			Immediately	$ 14.04
59	WP8066184		Pulley, 60 Hz.   (Replaces: 3401143)			Immediately	$ 51.02
62	279827		Motor, 60 Hz.   (Replaces: 3395652)			Immediately	$ 191.95
63	WP660658		Clamp, Motor   (Replaces: 660658)				$ 8.22
64	WP3404162		Clamp, Motor (w/shield)   (Replaces: 3404162)			Immediately	$ 8.21
67	3402844		Burner Assembly, 60 Hz. (refer To Burner Assembly Parts Page For Further Breakdown)		Appelez-nous	-
68	341029		Clamp, Pipe		Appelez-nous	-
69	49572A		Kit, Conversion (type 1, 2 & 3 To Type 4)   (Replaces: 694572)			Immediately	$ 36.19
85	279923		Valve, Gas 60 Hz. (complete)   (Replaces: 3401775)			Immediately	$ 286.03
86	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
87	WPW10366705		Screw & Washer   (Replaces: 3393909)				$ 7.88
88	279834		Coil, 60 Hz. (split) (3 Terminal) (pilot Position)   (Replaces: 694539)			Immediately	$ 32.85
89	279834		Coil, 60 Hz. (2 Terminal) (main)   (Replaces: 694540)			Immediately	$ 32.85
90	694421		Screw, Bracket Mounting (8-32 X 1/2)		Appelez-nous	-
91	694538		Bracket, Coil				$ 72.05
93	WP694424		Leak Limiter   (Replaces: 694424)				$ 36.30
94	WP694423		Screw, Regulator Adjustment   (Replaces: 694423)				$ 7.30
95	WP694422		Spring, Regulator   (Replaces: 694422)				$ 25.48
97	W10295523		Plug, Pipe   (Replaces: 239822)		Appelez-nous	-
