01 - Top And Console, Lit/optional
02 - Cabinet
03 - 3402844 Burner Assembly

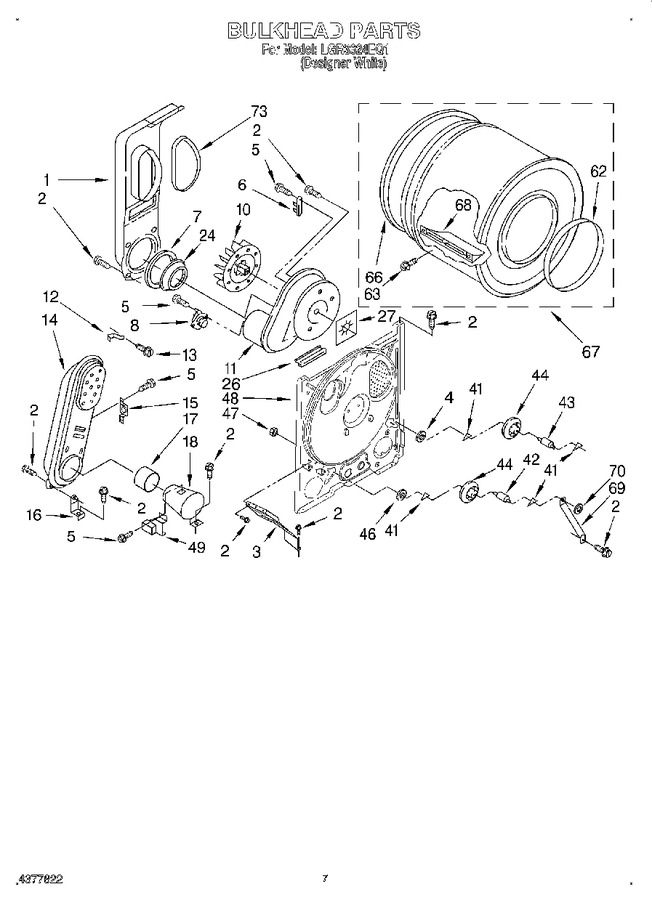

04 - Bulkhead
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 279505 | Lint Chute, Assembly (Replaces: 694283) |
|
$ 317.74 | |||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 3 | W11398682 | Bracket, Bulkhead (Replaces: 3406022) |
|
$ 58.88 | |||||
| 4 | WP3388703 | Washer-support (Replaces: 3388703) |
|
$ 7.85 | |||||
| 5 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 6 | WP3392519 | Fuse, Thermal (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 7 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 19.14 | ||||
| 8 | AT022 | Thermostat, 150 F (66c) (Replaces: 660039) |
|
Immediately | $ 35.17 | ||||
| 10 | WP694089 | Wheel, Blower (Replaces: 694089) |
|
Immediately | $ 37.66 | ||||
| 11 | WP8577230 | Housing, Blower (Replaces: 3405016) |
|
$ 186.85 | |||||
| 12 | 279771 | Clip (Replaces: 3398161) |
|
$ 15.05 | |||||
| 13 | WP489463 | Screw (Replaces: 489463) |
|
$ 8.25 | |||||
| 14 | 279900 | Box, Heater (Replaces: 685458) |
|
$ 361.58 | |||||
| 15 | W11050897 | Thermostat, 205~f (96~c) (Replaces: 3403140) |
|
Immediately | $ 15.30 | ||||
| 16 | 337445 | Support, Heater Box (2) |
|
- | |||||
| 17 | 279900 | Collar, Funnel (Replaces: 337450) |
|
$ 361.58 | |||||
| 18 | 279900 | Funnel, Burner (Replaces: 347389) |
|
$ 361.58 | |||||
| 24 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 23.40 | |||||
| 26 | 686889 | Pad, Blower Housing (Replaces: 3392247) |
|
- | |||||
| 27 | 3394196 | Seal, Blower Shaft |
|
$ 5.65 | |||||
| 41 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 42 | WPW10359270 | Shaft, L.h. (Replaces: 3399506) |
|
Immediately | $ 72.71 | ||||
| 43 | WPW10359269 | Shaft, R.h. (Replaces: 3399507) |
|
Immediately | $ 47.30 | ||||
| 44 | 349241T | Roller, Support (Replaces: 3397588) |
|
Immediately | $ 29.53 | ||||
| 46 | WP348197 | Washer, Support (Replaces: 348197) |
|
$ 7.55 | |||||
| 47 | WP3359452 | Nut, 3/8-16 (Replaces: 3359452) |
|
Immediately | $ 7.55 | ||||
| 48 | 3397264 | Bulkhead |
|
- | |||||
| 49 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 51.91 | ||||
| 62 | WP3394508 | Bearing, Ring (Replaces: 3394508) |
|
$ 131.86 | |||||
| 63 | WPW10109200 | Screw, 11-16 X 7/8 (Replaces: 97787) |
|
Immediately | $ 8.80 | ||||
| 66 | 239087 | Seal, Rear Drum (Replaces: 337449) |
|
Immediately | $ 62.78 | ||||
| 67 | 3396775 | Drum Assembly |
|
$ 353.03 | |||||
| 68 | WP342847 | Baffle, Drum (Replaces: 342847) |
|
$ 154.33 | |||||
| 69 | 3976435 | Bracket, Support |
|
$ 43.74 | |||||
| 70 | WP90296 | Clip (Replaces: 90296) |
|
$ 8.24 | |||||
| 73 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 9.06 |
