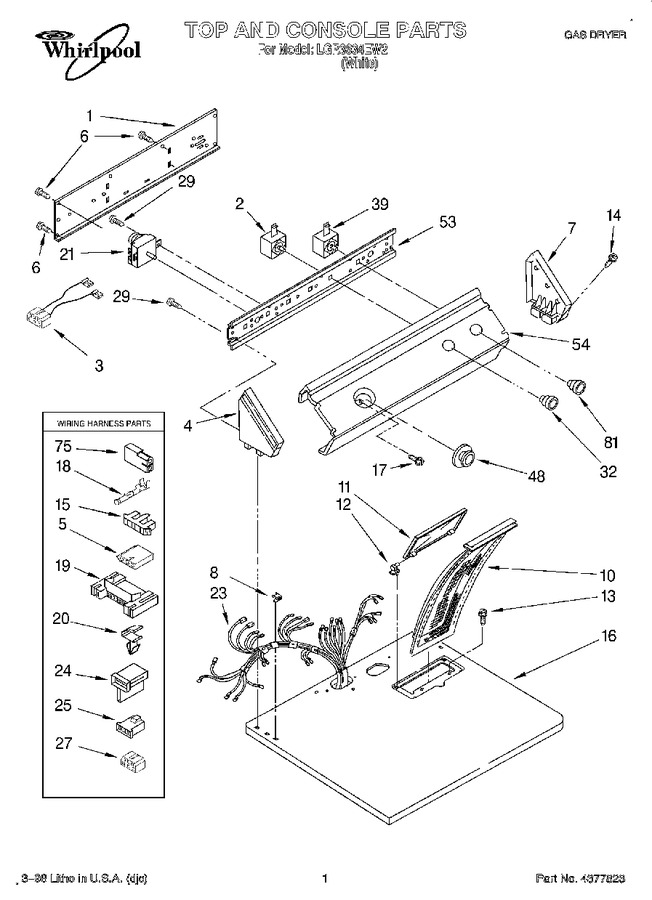

01 - Top And Console, Lit/optional
02 - Cabinet
03 - 3402844 Burner Assembly
04 - Bulkhead
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3397545 | Panel, Rear Console |
|
- | |||||
| 2 | 3399638 | Switch, Temperature |
|
$ 136.24 | |||||
| 3 | 8283286 | Wire Jumper Assembly (Replaces: 3396028) |
|
- | |||||
| 4 | 3358530 | Cap, End (l.h.) |
|
- | |||||
| 5 | 3936144 | Connector |
|
$ 21.22 | |||||
| 6 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 7 | 3358515 | Cap, End (r.h.) |
|
- | |||||
| 8 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.76 | |||||
| 10 | 339392V | Screen, Lint (Replaces: 339392) |
|
Immediately | $ 41.91 | ||||
| 11 | 688150 | Cover, Lint Screen (white) |
|
- | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 339230) |
|
$ 8.11 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 339229) |
|
$ 8.11 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 9.29 | |||||
| 15 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 16 | 3396022 | Top (white) |
|
- | |||||
| 17 | 3400859 | Screw, Grounding |
|
$ 13.88 | |||||
| 18 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 8.05 | |||||
| 19 | 3395683 | Connector (motor) |
|
Immediately | $ 54.45 | ||||
| 20 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 21 | WP3976568 | Timer Assembly, 60 Hz. (Replaces: 3976568) |
|
Immediately | $ 382.06 | ||||
| 23 | 3394291 | Harness, Wiring |
|
- | |||||
| 24 | WP3403499 | Connector, 2-position Gas Valve (Replaces: 3403499) |
|
$ 6.02 | |||||
| 25 | WP3403498 | Connector, 3-position (gas Valve) (Replaces: 3403498) |
|
$ 7.30 | |||||
| 27 | 3347243 | Connector 6-circuit |
|
- | |||||
| 29 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 8.03 | |||||
| 32 | WP8538957 | Knob, Control (Replaces: 3950757) |
|
$ 58.53 | |||||
| 39 | WP3395382 | Switch, Push-to-start (Replaces: 3395382) |
|
Immediately | $ 43.80 | ||||
| 48 | WP3957752 | Timer Knob & Dial (Replaces: 3406145) |
|
$ 56.66 | |||||
| 53 | 8054298 | Bracket, Control |
|
- | |||||
| 54 | 3976747 | Panel, Control |
|
- | |||||
| 75 | 717252 | Receptacle, Latching (2-way) |
|
- | |||||
| 81 | 3406135 | Knob, Push-to-start |
|
- | |||||
| LIT3406071 | Guide, Use & Care |
|
- | ||||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 54.01 | ||||||
| LIT3405338 | Instructions, Installation |
|
- | ||||||
| LIT677818 | Dryer |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | ||||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| LIT3406688 | Label, Wiring Diagram |
|
- |
