SELECT A DIAGRAM

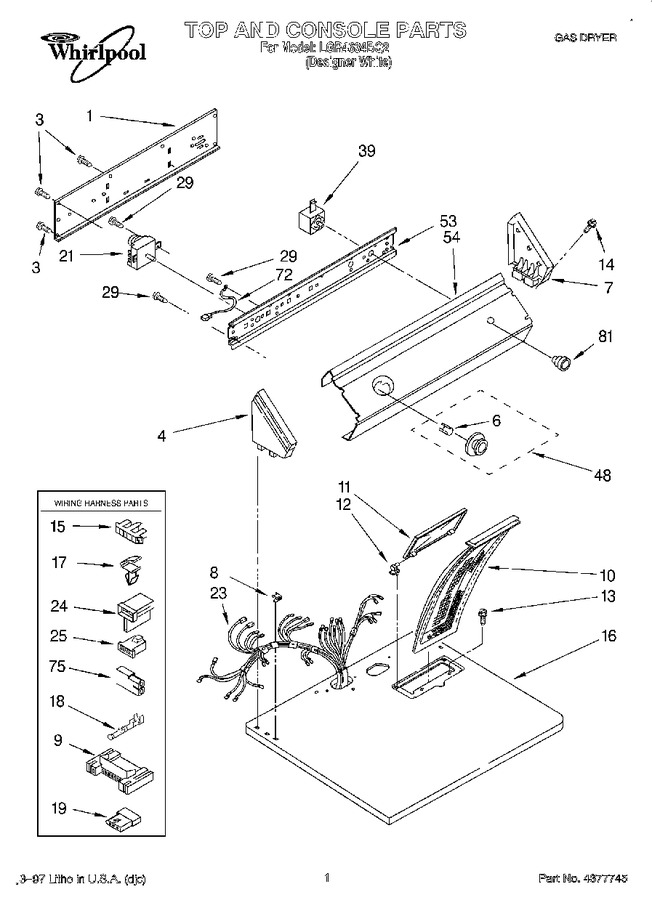

01 - Top And Console, Lit/optional


02 - Cabinet


03 - 3401771 Burner Assembly


04 - Bulkhead


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3397545		Panel, Rear Console		Appelez-nous	-
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
4	3358531		Cap, End (l.h.)		Appelez-nous	-
6	WP688805		Clip   (Replaces: 688805)			Immediately	$ 8.20
7	3358516		Cap, End (r.h.)		Appelez-nous	-
8	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
9	3395683		Housing, Connector (motor)			Immediately	$ 54.45
10	339392V		Screen, Lint   (Replaces: 339392)			Immediately	$ 41.91
11	688150		Cover, Lint Screen (white)		Appelez-nous	-
12	WPW10044480		Hinge, L.h.   (Replaces: 339230)				$ 8.11
12	WPW10044470		Hinge, R.h.   (Replaces: 339229)				$ 8.11
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
15	3397269		Connector, Timer				$ 25.55
16	3396022		Top (white)		Appelez-nous	-
17	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
18	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
19	353424		Connector, 3-circuit				$ 18.95
21	WP3976569		Timer Assembly, 60 Hz.   (Replaces: 3393934)			Immediately	$ 335.49
23	3401614		Harness, Wiring		Appelez-nous	-
24	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 6.02
25	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 7.30
29	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
39	WP3395382		Switch, Push-to-start   (Replaces: 3395382)			Immediately	$ 43.80
48	WP3957752		Timer Knob & Dial   (Replaces: 3396146)				$ 56.66
53	3396293		Bracket, Control		Appelez-nous	-
54	3399022		Panel, Control		Appelez-nous	-
72	690853		Wire, Ground		Appelez-nous	-
75	717252		Receptacle, Latching (2-way) (uses Terminal 94614)		Appelez-nous	-
81	WP3957800		Knob, Push To Start   (Replaces: 3396161)				$ 52.92
	LIT3401092		Guide, Use & Care		Appelez-nous	-
	LIT677818		Dryer		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	LIT3397286		Label, Warning		Appelez-nous	-
	LIT3393288		Instructions, Dryer Vent		Appelez-nous	-
	LIT3401728		Label, Wiring Diagram		Appelez-nous	-
	LIT3395337		Instructions, Installation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
