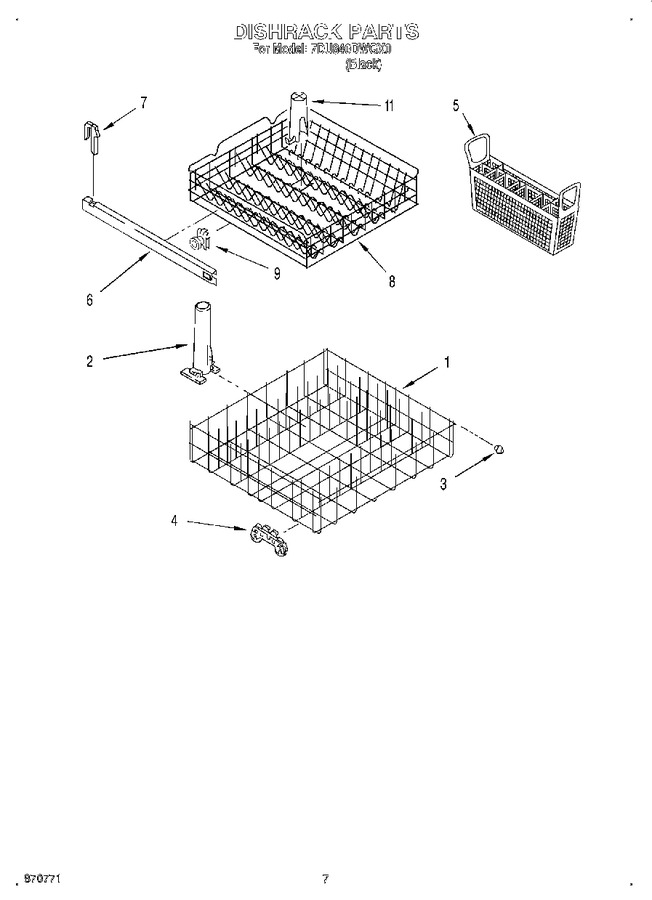

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10311986 | Dishrack, Lower (Replaces: 8051111) |
|
Immediately | $ 188.14 | ||||
| 2 | WP8268825 | Tower, Protector (Replaces: 3369761) |
|
$ 103.71 | |||||
| 3 | WP3385142 | Bumper, Dishrack (2) (Replaces: 3368006) |
|
$ 90.30 | |||||
| 4 | WP3376961 | Wheel & Transport Assembly (4) (Replaces: 3376961) |
|
$ 93.99 | |||||
| 5 | 8051119 | Basket, Silverware |
|
- | |||||
| 6 | WP3385089 | Track, Dishrack (2) (Replaces: 9742998) |
|
Immediately | $ 80.00 | ||||
| 7 | 3379941 | Stop, Track (4) |
|
$ 42.08 | |||||
| 8 | W11169039 | Dishrack, Upper (Replaces: 3371655) |
|
Immediately | $ 203.14 | ||||
| 9 | 3380863 | Wheel & Axle Assembly (4) |
|
- | |||||
| 11 | 3371908 | Diffuser, Water |
|
- |
