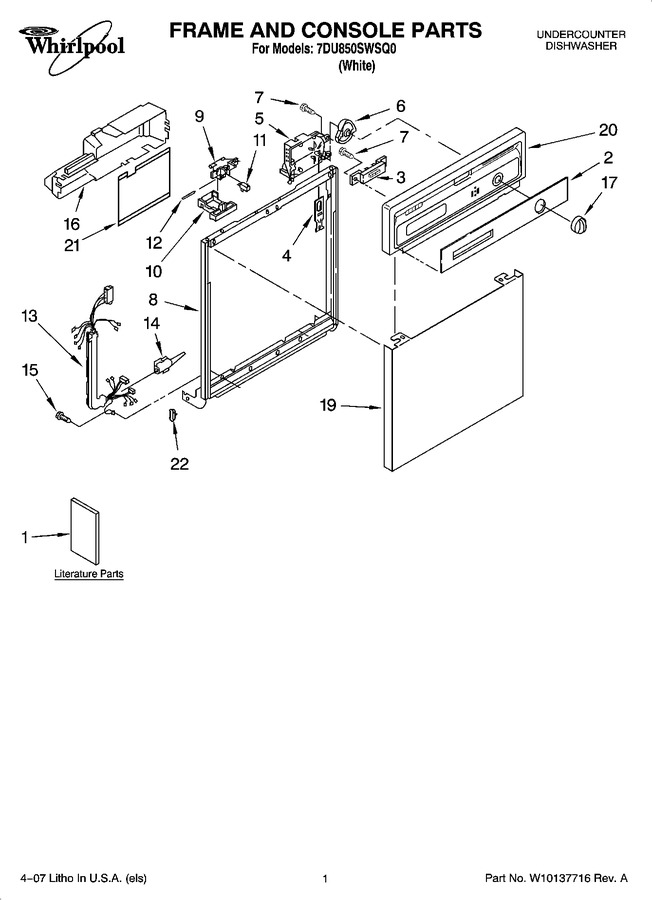

01 - Frame And Console Parts


02 - Inner Door Parts


03 - Tub Assembly Parts


04 - Pump And Spray Arm Parts


05 - Pump And Motor Parts


06 - Dishrack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10102746		Guide, Use & Care		Appelez-nous	-
2	W10039610		Insert, Console (white)				$ 136.21
3	8269366		Switch, 5 Button				$ 324.20
4	WP3369529		Follower, Cam   (Replaces: 3369529)				$ 62.31
5	WPW10199587		Timer   (Replaces: W10039480)				$ 329.34
6	WP8271510		Cam   (Replaces: 8271510)				$ 8.11
7	WP304231		Screw, 8-18 X 1/2 (5)   (Replaces: 304231)			Immediately	$ 7.75
8	9743028		Door Frame (black)				$ 62.19
9	WP3380854		Bolt, Latch   (Replaces: 3380854)			Immediately	$ 66.11
10	3372231		Lever, Latch White		Appelez-nous	-
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	8573183		Harness And Protector				$ 275.26
14	3376405		Elbow, Harness				$ 14.02
15	WP3400892		Screw   (Replaces: 3400892)				$ 7.75
16	8269526		Cover, Control		Appelez-nous	-
17	8275308		Knob, Timer (white)   (Replaces: 8275309)				$ 71.48
19	3379376		Panel Front (white)				$ 116.81
20	W10072700		Console (includes Item 2) (white)				$ 114.59
21	3379671		Shield, Control Cover		Appelez-nous	-
22	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 10.49
