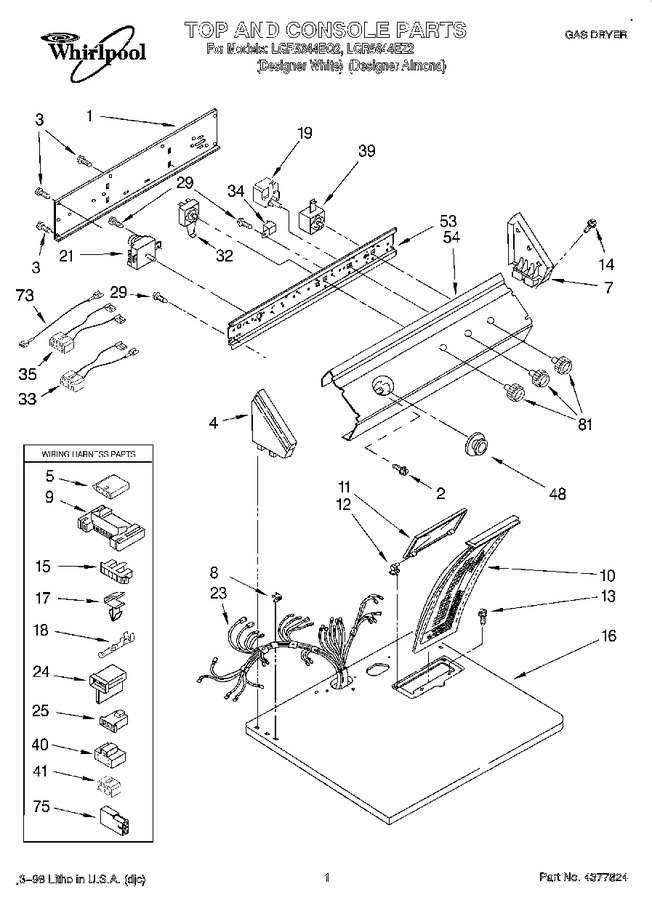

01 - Top And Console, Lit/optional


02 - Cabinet


03 - 3402844 Burner Assembly


04 - Bulkhead


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3397545		Panel, Rear Console		Appelez-nous	-
2	3400859		Screw, Grounding				$ 13.88
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
4	3358529		Cap, End (l.h.) (almond)		Appelez-nous	-
4	3358528		Cap, End (l.h.) (white)		Appelez-nous	-
5	3936144		Connector				$ 21.22
7	3358513		Cap, End (r.h.) (white)		Appelez-nous	-
7	3358514		Cap, End (r.h.) (almond)		Appelez-nous	-
8	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
9	3395683		Housing, Connector (motor)			Immediately	$ 54.45
10	339392V		Screen, Lint   (Replaces: 339392)			Immediately	$ 41.91
11	689310		Cover, Lint Screen (almond)		Appelez-nous	-
11	688150		Cover, Lint Screen (white)		Appelez-nous	-
12	WPW10044470		Hinge, R.h.   (Replaces: 339229)				$ 8.11
12	WPW10044480		Hinge, L.h.   (Replaces: 339230)				$ 8.11
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
15	3397269		Connector, Timer				$ 25.55
16	3396022		Top (white)		Appelez-nous	-
16	3396023		Top (almond)		Appelez-nous	-
17	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
18	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
19	WP3405156		Switch, Finish Guard   (Replaces: 3354285)				$ 152.79
21	WP3976580		Timer Assembly (60 Hz.)   (Replaces: 3976580)				$ 333.22
23	3394303		Harness, Wiring		Appelez-nous	-
24	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 6.02
25	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 7.30
29	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
32	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 131.16
33	3397695		Wire, Jumper (guard On/off)				$ 90.72
34	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
35	8539893		Wire, Jumper (temperature)   (Replaces: 3396029)				$ 19.78
39	WP3398095		Relay, Push-to-start   (Replaces: 3398095)			Immediately	$ 92.88
40	3401144		Connector, (pts Relay)				$ 12.81
41	3347243		Connector 6-circuit		Appelez-nous	-
48	WP3957752		Timer Knob & Dial (white)   (Replaces: 3406143)				$ 56.66
48	3957753		Timer Knob & Dial (almond)   (Replaces: 3406144)		Appelez-nous	-
53	8054298		Bracket, Control		Appelez-nous	-
54	3976753		Panel, Control (almond)		Appelez-nous	-
54	3976752		Panel, Control (white)		Appelez-nous	-
73	3401684		Wire, Jumper (black)				$ 34.57
75	717252		Receptacle, Latching (2-way)		Appelez-nous	-
81	3950760		Knob, Control (3) (almond)		Appelez-nous	-
81	WP3957796		Knob, Control (3) (white)   (Replaces: 3950759)			Immediately	$ 57.57
	LIT3405338		Instructions, Installation		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	LIT677818		Dryer		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	LIT3406692		Label, Wiring Diagram		Appelez-nous	-
	LIT3406071		Guide, Use & Care		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
