SELECT A DIAGRAM

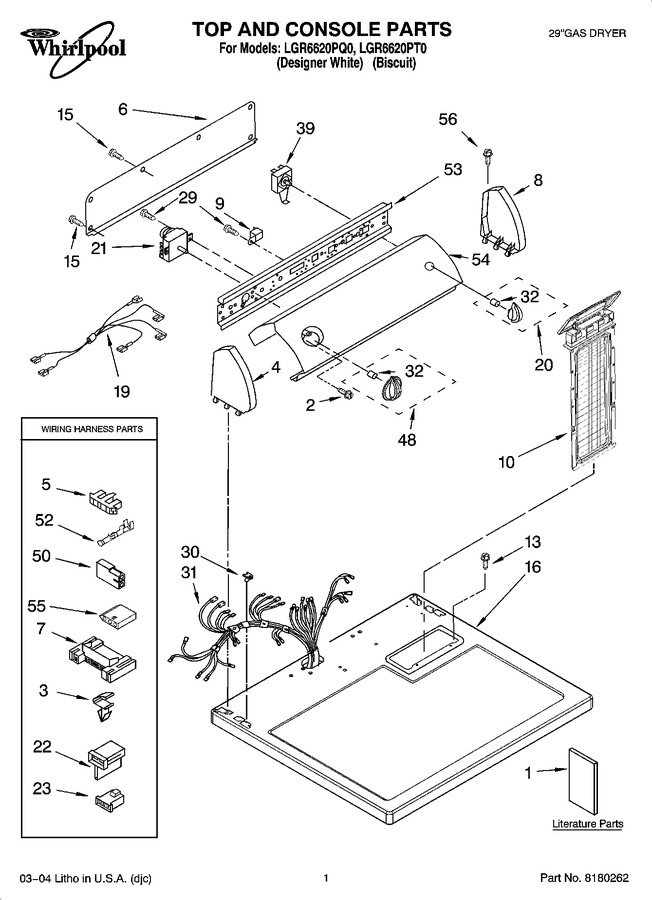

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8528187		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT677818		Literature Parts (dryer)		Appelez-nous	-
1	N/A		Following May Be Purchased Do-it-yourself Repair Manuals		Appelez-nous	-
1	LIT8535830		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT8533770		Literature Parts (sheet, Cycle Feature)		Appelez-nous	-
1	LIT8522243		Literature Parts (use & Care Guide)		Appelez-nous	-
2	3400859		Screw, Grounding				$ 13.88
3	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
4	8271365		Cap, End (l.h.) (white)		Appelez-nous	-
4	8271368		Cap, End (l.h.) (biscuit)		Appelez-nous	-
5	3397269		Connector, Timer				$ 25.55
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
7	3395683		Housing, Connector (motor)			Immediately	$ 54.45
8	8271359		Cap, End (r.h.) (white)		Appelez-nous	-
8	8271362		Cap, End (r.h.) (biscuit)		Appelez-nous	-
9	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
10	W11778253		Screen, Lint (white)   (Replaces: 8557857)			Immediately	$ 54.63
10	8557858		Screen, Lint (biscuit)		Appelez-nous	-
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
15	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
16	8557931		Top (biscuit)		Appelez-nous	-
16	8557930		Top (white)		Appelez-nous	-
19	8539888		Wire, Jumper (pts To Buzzer)		Appelez-nous	-
20	8544935		Knob, Control (white)		Appelez-nous	-
20	8544936		Knob, Control (biscuit)		Appelez-nous	-
21	WP3976584		Timer Assembly (60 Hz.)   (Replaces: 3976584)				$ 380.18
22	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 6.02
23	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 7.30
29	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
31	8299876		Harness, Wiring		Appelez-nous	-
32	WP8536939		Spring Clip   (Replaces: 8536939)			Immediately	$ 8.20
39	WP3404233		Switch, Push-to-start   (Replaces: 3404233)			Immediately	$ 115.10
48	8544956		Timer Knob Assembly (biscuit)		Appelez-nous	-
48	8544955		Timer Knob Assembly (white)				$ 41.86
50	717252		Receptacle, 2 Way		Appelez-nous	-
52	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
53	8271418		Bracket, Control				$ 57.15
54	8546011		Panel, Control (biscuit)		Appelez-nous	-
54	8545966		Panel, Control (white)		Appelez-nous	-
55	3936144		Connector				$ 21.22
56	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29

    View Diagram in Separate Window       Print Part List
