SELECT A DIAGRAM

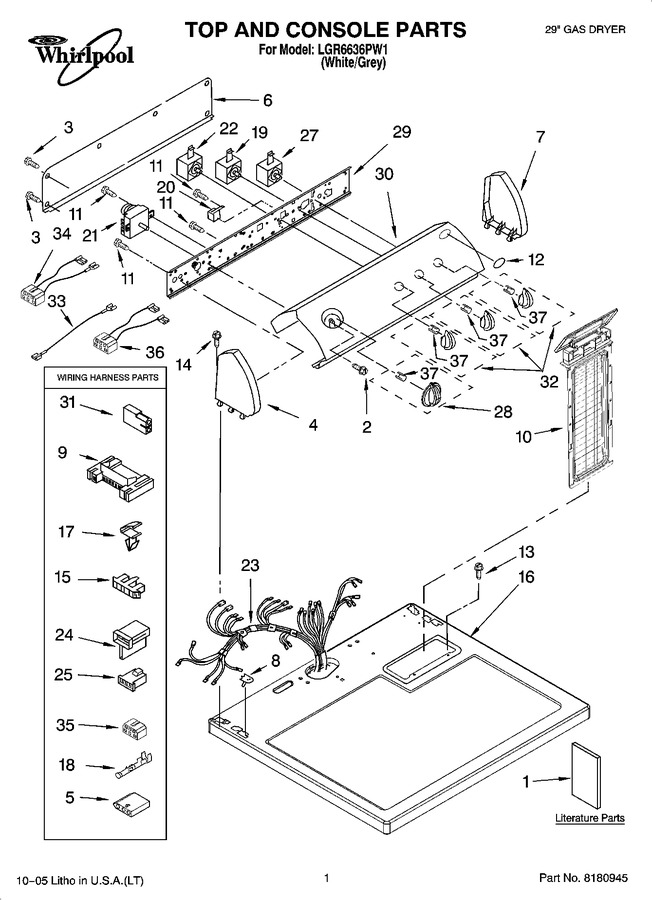

01 - Top And Console Parts


02 - Cabinet Parts


03 - 8318272 Burner Assembly


04 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Do-it-yourself Repair Manuals		Appelez-nous	-
1	677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-
1	8578183		Use And Care Guide		Appelez-nous	-
1	8562582		Installation Instructions		Appelez-nous	-
1	8533770		Sheet, Cycle Feature		Appelez-nous	-
1	3979703		Wiring Diagram		Appelez-nous	-
2	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.22
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.19
4	8271365		Cap, End (l.h.)		Appelez-nous	-
5	3936144		Connector				$ 20.21
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 128.87
7	8271359		Cap, End (r.h.)		Appelez-nous	-
8	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
9	3395683		Housing, Connector (motor)			Immediately	$ 51.86
10	W11778253		Screen, Lint   (Replaces: 8557857)			Immediately	$ 52.03
11	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.82
12	3400985		Medallion		Appelez-nous	-
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
15	3397269		Connector, Timer				$ 25.55
16	8557930		Top		Appelez-nous	-
17	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
18	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
19	WP3405156		Switch, Wrinkle Shield   (Replaces: 3405156)				$ 145.51
20	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
21	WP8299766		Timer Assembly (60 Hz.)   (Replaces: 8299766)				$ 370.70
22	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 124.91
23	8299879		Harness, Wiring		Appelez-nous	-
24	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 5.73
25	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 6.95
27	WP3398095		Switch, Push-to-start   (Replaces: 3398095)			Immediately	$ 92.88
28	8544957		Timer Knob Assembly				$ 41.86
29	8544895		Bracket, Control		Appelez-nous	-
30	8545967		Panel, Control (includes Illus. 12)		Appelez-nous	-
31	717252		Receptacle, Latching (2-way)		Appelez-nous	-
32	8544937		Knob, Control (3)				$ 24.98
33	3401684		Jumper, Wire (black)				$ 34.57
34	3397695		Jumper, Wire (guard On/off)				$ 86.40
35	3347243		Connector 6-circuit		Appelez-nous	-
36	8539893		Jumper, Wire (temperature)   (Replaces: 3396029)				$ 18.84
37	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.81

    View Diagram in Separate Window       Print Part List
