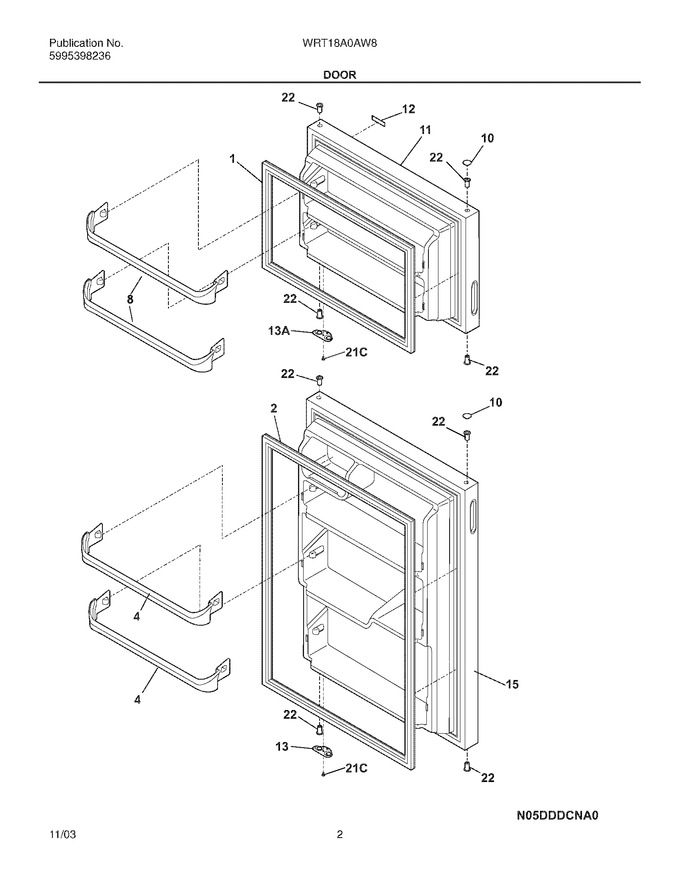

03 - Door
05 - Cabinet
07 - Shelves
09 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241872503 | Gasket-frzr Door,white ,magnetic (Replaces: 240542103) |
|
Immediately | $ 152.96 | ||||
| 2 | 242193213 | Gasket-refr Door,white ,magnetic (Replaces: 240542106) |
|
Immediately | $ 217.63 | ||||
| 4 | 240534901 | Rack-door |
|
Immediately | $ 52.25 | ||||
| 8 | 240534801 | Rack-door |
|
Immediately | $ 55.13 | ||||
| 10 | 240381301 | Plug-button,white ,hinge Brg Hole ,(2) |
|
Immediately | $ 21.06 | ||||
| 11 | 240410401 | Panel-frzr Door,white ,complete Assy |
|
- | |||||
| 12 | 241808601 | Label-nameplate,white (Replaces: 240415201) |
|
$ 14.10 | |||||
| 13 | 240312421 | Door Stop,white ,ref (Replaces: 240312403) |
|
$ 16.85 | |||||
| 15 | 240410501 | Panel-refr Door,white ,complete Assy |
|
$ 329.67 | |||||
| 22 | 5304507146 | Bearing-hinge,natural Color (Replaces: 240527101) |
|
Immediately | $ 8.43 | ||||
| 13A | 240312414 | Door Stop,white ,frzr (Replaces: 240312404) |
|
$ 21.26 | |||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 15.75 |
