SELECT A DIAGRAM

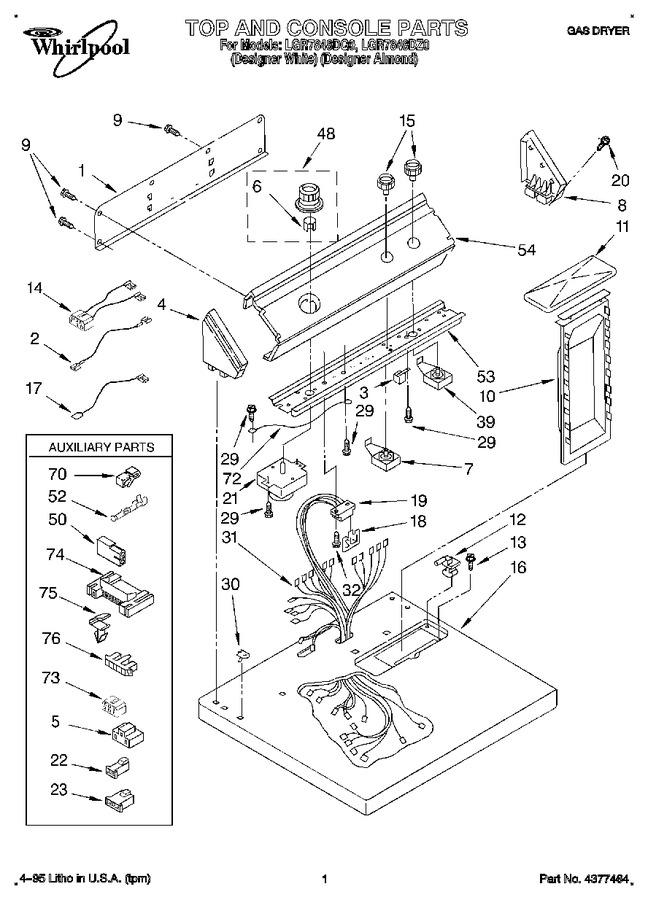

01 - Top And Console, Lit/optional


02 - Cabinet


03 - Bulkhead


04 - 3401771 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3397545		Panel, Rear Console		Appelez-nous	-
2	3401684		Wire, Jumper (black)				$ 34.57
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
4	3358529		Cap, End (l.h.) (almond)		Appelez-nous	-
4	3358528		Cap, End (l.h.) (white)		Appelez-nous	-
5	3401144		Connector (relay/buzzer)				$ 12.81
6	WP688805		Clip   (Replaces: 688805)			Immediately	$ 8.20
7	WP3399639		Switch, Temperature   (Replaces: 3396013)				$ 131.16
8	3358514		Cap, End (r.h.) (almond)		Appelez-nous	-
8	3358513		Cap, End (r.h.) (white)		Appelez-nous	-
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.55
10	WP349639		Handle & Lint Screen Assembly   (Replaces: 349639)			Immediately	$ 37.21
11	689310		Cover, Lint Screen (almond)		Appelez-nous	-
11	688150		Cover, Lint Screen (white)		Appelez-nous	-
12	WPW10044480		Hinge, L.h.   (Replaces: 339230)				$ 8.11
12	WPW10044470		Hinge, R.h.   (Replaces: 339229)				$ 8.11
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	8539893		Wire-jumper Assembly   (Replaces: 3396029)				$ 19.78
15	3950760		Knob, Control (almond)   (Replaces: 3358436)		Appelez-nous	-
15	WP3957796		Knob, Control (white)   (Replaces: 3358435)			Immediately	$ 57.57
16	3396022		Top (white)		Appelez-nous	-
16	3396023		Top (almond)		Appelez-nous	-
17	3401671		Wire, Jumper (white)		Appelez-nous	-
18	WPW10476828		Control, Electronic   (Replaces: 3390537)			Immediately	$ 329.93
19	3391885		Connector, Edge				$ 90.72
20	WP388326		Screw, Console   (Replaces: 3353145)				$ 9.29
21	WP3397273		Timer Assembly (60 Hz.)   (Replaces: 3397273)				$ 320.44
22	3399964		Connector, 2-position (gas Valve)		Appelez-nous	-
23	3399963		Connector, 3-position (gas Valve)		Appelez-nous	-
29	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
31	3401636		Harness, Wiring		Appelez-nous	-
32	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
39	WP3398095		Relay, Push-to-start   (Replaces: 3398095)			Immediately	$ 92.88
48	3957753		Timer Knob Assembly (almond)   (Replaces: 3396149)		Appelez-nous	-
48	WP3957752		Timer Knob Assembly (white)   (Replaces: 3396146)				$ 56.66
50	717252		Receptacle, 2 Way		Appelez-nous	-
52	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
53	3396293		Bracket, Control		Appelez-nous	-
54	3399040		Panel, Control (white)		Appelez-nous	-
54	3399041		Panel, Control (almond)		Appelez-nous	-
70	689180		Clip, Retainer		Appelez-nous	-
72	690853		Wire, Ground		Appelez-nous	-
73	3347243		Connector 6-circuit		Appelez-nous	-
74	3395683		Connector (motor)			Immediately	$ 54.45
75	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
76	3397269		Timer Block				$ 25.55
	LIT3401092		Guide, Use & Care		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
	LIT3401725		Label, Wiring Diagram		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	LIT3395332		Instructions, Installation		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	LIT677818		Dryer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
