SELECT A DIAGRAM
01 - Top And Console, Lit/optional

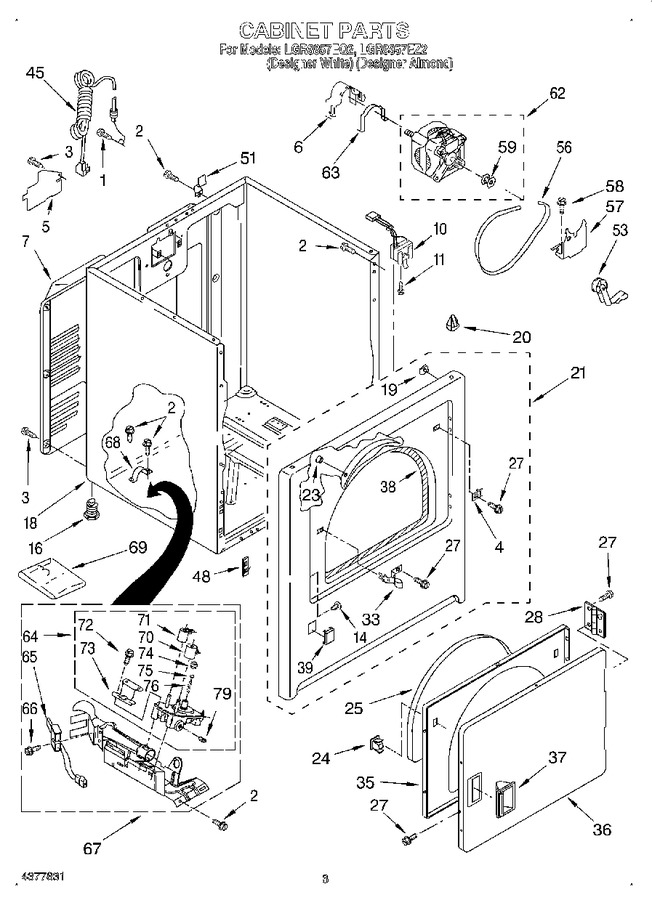

02 - Cabinet
03 - Bulkhead
04 - 3402844 Burner Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10850756 | Screw, 10-32 X 1/2 (external Ground) (Replaces: 697776) |
|
$ 8.20 | |||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | WP3403630 | Plug, Strike Hole (white) (Replaces: 3403630) |
|
$ 7.91 | |||||
| 4 | WP3403630 | Plug, Strike Hole (almond) (Replaces: 3403631) |
|
$ 7.91 | |||||
| 5 | W11539855 | Cover, Block (Replaces: 3396795) |
|
Immediately | $ 629.75 | ||||
| 6 | WP3404162 | Clamp, Motor (w/shield) (Replaces: 3404162) |
|
Immediately | $ 8.21 | ||||
| 7 | 280043 | Panel, Rear (Replaces: 3396805) |
|
$ 358.37 | |||||
| 10 | WP3406105 | Door Switch Assembly (Replaces: 3406105) |
|
Immediately | $ 36.90 | ||||
| 11 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 8.57 | |||||
| 14 | 3404414 | Plug, Hinge Hole (almond) |
|
- | |||||
| 14 | WP3404413 | Plug, Hinge Hole (white) (Replaces: 3404413) |
|
Immediately | $ 8.35 | ||||
| 16 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 16 | 49621 | Foot - Optional (extended Length Package Of 2 ) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| 18 | 3399585 | Cabinet (white) |
|
- | |||||
| 18 | 3399586 | Cabinet (almond (includes Illus. Nos. 5, 7, 16, 48, And 57.)) |
|
- | |||||
| 19 | WP98234 | Clip, Ground (2) (Replaces: 98234) |
|
Immediately | $ 11.96 | ||||
| 20 | WP18776 | Lock, Front Top (2) (Replaces: 690363) |
|
Immediately | $ 13.31 | ||||
| 21 | 3403447 | Front Panel Assembly (white) |
|
- | |||||
| 21 | 3403448 | Front, Panel Assembly (almond) |
|
- | |||||
| 23 | 279220 | Clip, Felt Pad (2) (Replaces: 685203) |
|
$ 23.55 | |||||
| 24 | 279570 | Catch, Door Assembly (Replaces: 690081) |
|
Immediately | $ 8.89 | ||||
| 25 | W10861521 | Seal, Door (Replaces: 3405246) |
|
Immediately | $ 58.69 | ||||
| 27 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 342055) |
|
$ 8.11 | |||||
| 28 | WPW10362431 | Hinge, Door (Replaces: 3405514) |
|
Immediately | $ 8.28 | ||||
| 33 | W11429589 | Strike, Door (Replaces: 3403431) |
|
Immediately | $ 20.99 | ||||
| 35 | WP3402341 | Door, Rear (Replaces: 3402341) |
|
$ 208.71 | |||||
| 36 | 3402336 | Door, Front (almond) |
|
- | |||||
| 36 | W10861227 | Door, Front (white) (Replaces: 3402335) |
|
$ 269.26 | |||||
| 37 | 3405185 | Handle, Door (almond) |
|
$ 6.18 | |||||
| 37 | WP3405184 | Handle, Door (white) (Replaces: 3405184) |
|
$ 79.81 | |||||
| 38 | W11035878 | Seal & Bearing Assembly (Replaces: 3406129) |
|
Immediately | $ 78.78 | ||||
| 39 | 3394976 | Plug, Front Panel (almond) |
|
- | |||||
| 39 | 3394975 | Plug, Front Panel (white) |
|
$ 5.70 | |||||
| 45 | W11222083 | Cord, Power (Replaces: 344020) |
|
$ 126.62 | |||||
| 48 | W10854425 | Clip, Front Panel (Replaces: 3394083) |
|
Immediately | $ 16.34 | ||||
| 51 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 8.21 | |||||
| 53 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 22.47 | ||||
| 56 | 341241 | Belt, Drive (Replaces: 660996) |
|
Immediately | $ 18.15 | ||||
| 57 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 127.65 | ||||
| 58 | 3400500 | Bolt, 5/16-18 X 3/4 |
|
Immediately | $ 14.04 | ||||
| 59 | WP8066184 | Pulley, 60 Hz. (Replaces: 3401143) |
|
Immediately | $ 51.02 | ||||
| 62 | 279827 | Motor Assembly 60 Hz. (Replaces: 3395652) |
|
Immediately | $ 191.95 | ||||
| 63 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 8.22 | |||||
| 64 | 279923 | Valve, Gas 60 Hz. (complete) (Replaces: 3401775) |
|
Immediately | $ 286.03 | ||||
| 65 | 279311 | Ignitor (Replaces: 686590) |
|
Immediately | $ 78.90 | ||||
| 66 | WPW10366705 | Lock Screw & Washer (8-32 X 5/8) (Replaces: 3393909) |
|
$ 7.88 | |||||
| 67 | 3402844 | Burner Assembly, 60 Hz. (see Parts Page For Further Burner Breakdown) |
|
- | |||||
| 68 | 341029 | Clamp, Pipe |
|
- | |||||
| 69 | 49572A | Kit, Conversion Type 1, 2 & 3 To Type 4 (lpg) (Replaces: 694572) |
|
Immediately | $ 36.19 | ||||
| 70 | 279834 | Coil, 60 Hz. (split) (3 Terminal) (pilot Position) (Replaces: 694539) |
|
Immediately | $ 32.85 | ||||
| 71 | 279834 | Coil, 60 Hz. (2 Terminal) (main) (Replaces: 694540) |
|
Immediately | $ 32.85 | ||||
| 72 | 694421 | Screw, Bracket Mounting (8-32 X 1/2) (2) |
|
- | |||||
| 73 | 694538 | Bracket, Coil |
|
$ 72.05 | |||||
| 74 | WP694424 | Leak Limiter (Replaces: 694424) |
|
$ 36.30 | |||||
| 75 | WP694423 | Screw, Regulator Adjustment (Replaces: 694423) |
|
$ 7.30 | |||||
| 76 | WP694422 | Spring, Regulator (Replaces: 694422) |
|
$ 25.48 | |||||
| 79 | W10295523 | Plug, Pipe (Replaces: 239822) |
|
- |
