SELECT A DIAGRAM

01 - Top And Console, Literature

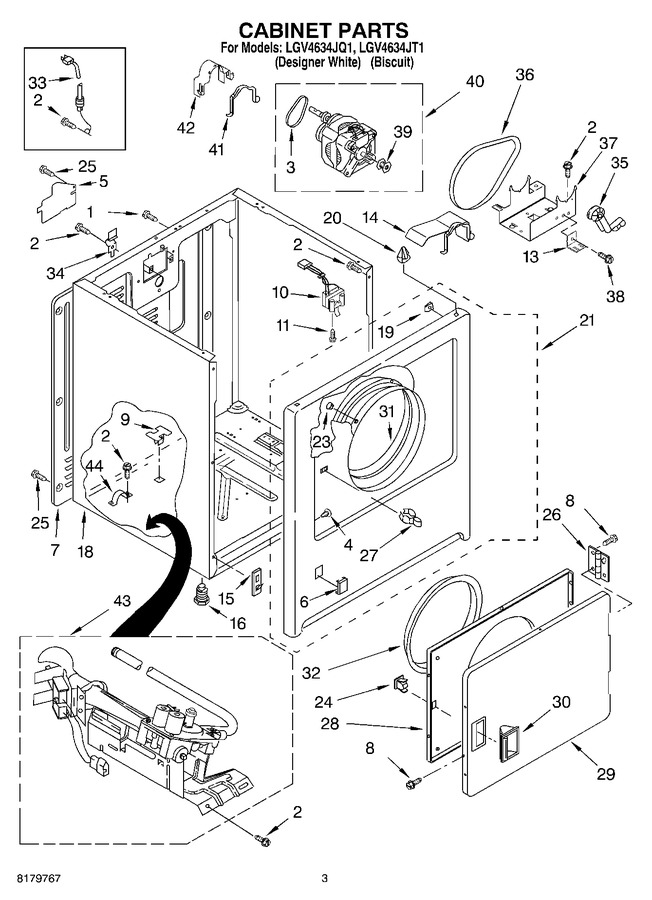

02 - Cabinet


03 - 8318272 Burner Assembly


04 - Bulkhead


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10850756		Screw, 10-32 X 5/8   (Replaces: 697776)				$ 7.76
2	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
3	WP3405160		Belt, Drive (blower Wheel)   (Replaces: 3405160)			Immediately	$ 35.23
4	WP3404413		Plug, Hinge Hole (4) (white)   (Replaces: 3404413)			Immediately	$ 7.95
4	3404415		Plug, Hinge Hole (4) (biscuit)		Appelez-nous	-
5	W11539855		Cover, Block   (Replaces: 3396795)			Immediately	$ 599.76
6	3394975		Plug, Front Panel (white)				$ 5.70
6	3394978		Plug, Front Panel (biscuit)		Appelez-nous	-
7	3396807		Panel, Rear		Appelez-nous	-
8	WP488627		Screw, 8-18 X 1/2   (Replaces: 342055)				$ 7.57
9	3404283		Plug, Cabinet		Appelez-nous	-
10	WP3406105		Door Switch Assembly   (Replaces: 3406104)			Immediately	$ 36.90
11	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 7.70
13	3401805		Bracket, Idler		Appelez-nous	-
14	3401800		Belt, Shield Assembly		Appelez-nous	-
15	W10854425		Clip, Front Panel   (Replaces: 3394083)			Immediately	$ 15.56
16	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
16	49621		Foot - Optional (extended Length Package Of 2 ) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
18	8530606		Cabinet (biscuit)		Appelez-nous	-
18	8533643		Cabinet (white)   (Replaces: 8530603)				$ 399.26
19	WP98234		Clip, Ground (2)   (Replaces: 98234)			Immediately	$ 11.39
20	WP18776		Lock, Front Top (2)   (Replaces: 690363)			Immediately	$ 12.68
21	3403574		Front Panel Assembly (white)		Appelez-nous	-
21	3403577		Front Panel Assembly (biscuit)		Appelez-nous	-
23	279220		Clip, Felt Pad   (Replaces: 685203)				$ 20.65
24	279570		Catch, Door   (Replaces: 690081)			Immediately	$ 8.89
25	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.19
26	WPW10362431		Hinge & Pin Assembly   (Replaces: 3405514)			Immediately	$ 7.91
27	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
28	3403371		Door, Rear				$ 77.01
29	WP3403363		Door, Front (biscuit)   (Replaces: 3403363)				$ 242.19
29	WP3403361		Door Front (white)   (Replaces: 3403361)				$ 181.46
30	WP3405184		Handle, Door (white)   (Replaces: 3405184)				$ 76.01
30	WP3405189		Handle, Door (biscuit)   (Replaces: 3405189)				$ 86.72
31	279264		Seal & Bearing Assembly   (Replaces: 8066124)			Immediately	$ 74.52
32	W10861521		Seal, Door   (Replaces: 3405245)			Immediately	$ 58.69
33	W11222083		Cord, Power   (Replaces: 344020)				$ 120.59
34	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 7.82
35	WP691366		Idler & Pulley Assembly   (Replaces: 691366)			Immediately	$ 22.47
36	341241		Belt, Drive   (Replaces: 8066065)			Immediately	$ 18.15
37	3401801		Base, Motor   (Replaces: 3401802)				$ 113.62
38	3400500		Bolt, 5/16-18 X 3/4			Immediately	$ 13.37
39	WP8066184		Pulley, 60 Hz.   (Replaces: 3394341)			Immediately	$ 51.02
40	WPW10396039		Motor, 60 Hz.   (Replaces: 3978856)				$ 241.68
41	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.83
42	WP3404162		Clamp, Motor (w/shield)   (Replaces: 3404162)			Immediately	$ 7.82
43	W10823508		Burner Assembly, 60 Hz.   (Replaces: 8318272)				$ 490.93
44	341029		Clamp, Pipe		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
