SELECT A DIAGRAM

01 - Top And Console, Literature


02 - Cabinet


03 - 8318273 Burner


04 - Bulkhead

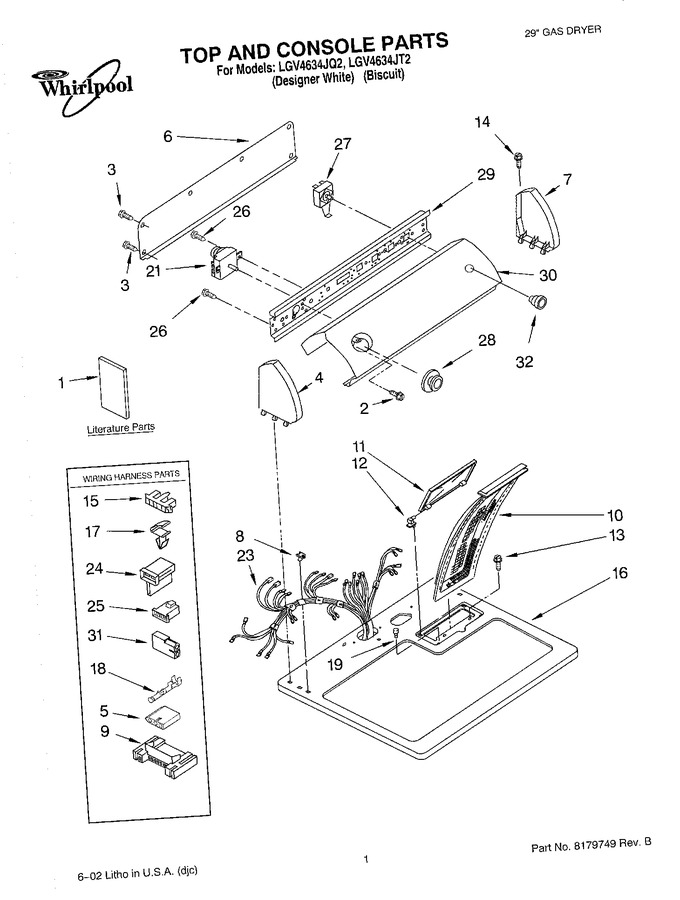

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT3978845		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT8314832		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT8528189		Literature Parts (wiring Diagram)		Appelez-nous	-
2	3400859		Screw, 8-18 X 7/32				$ 13.22
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.19
4	8271365		Cap, End (l.h.) (white)		Appelez-nous	-
4	8271368		Cap, End (l.h.) (biscuit)		Appelez-nous	-
5	3936144		Connector				$ 20.21
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 128.87
7	8271359		Cap, End (r.h.) (white)		Appelez-nous	-
7	8271362		Cap, End (r.h.) (biscuit)		Appelez-nous	-
8	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
9	3395683		Housing, Connector (motor)			Immediately	$ 51.86
10	339392V		Screen, Lint   (Replaces: 339392)			Immediately	$ 41.91
11	8283378		Cover, Lint Screen (white)				$ 44.80
11	8283380		Cover, Lint Screen (biscuit)		Appelez-nous	-
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 7.72
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 7.72
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
15	3397269		Connector, Timer				$ 25.55
16	8271392		Top (biscuit)		Appelez-nous	-
16	8271390		Top (white)		Appelez-nous	-
17	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
18	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
19	297535		Bumper, Lint Lid		Appelez-nous	-
21	WP3976584		Timer Assembly (60 Hz.)   (Replaces: 3976584)				$ 362.08
23	8299876		Harness, Wiring		Appelez-nous	-
24	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 5.73
25	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 6.95
26	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.50
27	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
28	WP3957755		Timer Knob Assembly (biscuit)   (Replaces: 8271404)				$ 2.49
28	WP3957754		Timer Knob Assembly (white)   (Replaces: 8312687)				$ 59.87
29	8271418		Bracket, Control				$ 57.15
30	3977815		Panel, Control (white)		Appelez-nous	-
30	3977816		Panel, Control (biscuit)		Appelez-nous	-
31	717252		Receptacle, Latching (2-way)		Appelez-nous	-
32	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
32	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
32	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
32	4392065		Kit, Dryer Repair			Immediately	$ 53.85
32	346764		Kit, Hold-down (gas Dryer Mobile Home Installation)		Appelez-nous	-
32	WP689790		Dry Rack   (Replaces: 689790)				$ 57.35
32	W11224254		Kit, Dryer Vent Testing   (Replaces: 8522199)				$ 11.75
32	4392899		Biscuit			Immediately	$ 26.45
32	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
32	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
32	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
32	3957804		Knob, Push To Start (white)   (Replaces: 8271341)				$ 50.37
32	8271349		Knob, Push To Start (biscuit)		Appelez-nous	-
	LIT677818		Dryer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
