SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Control Panel Parts


03 - Door Parts


04 - Dispenser Parts

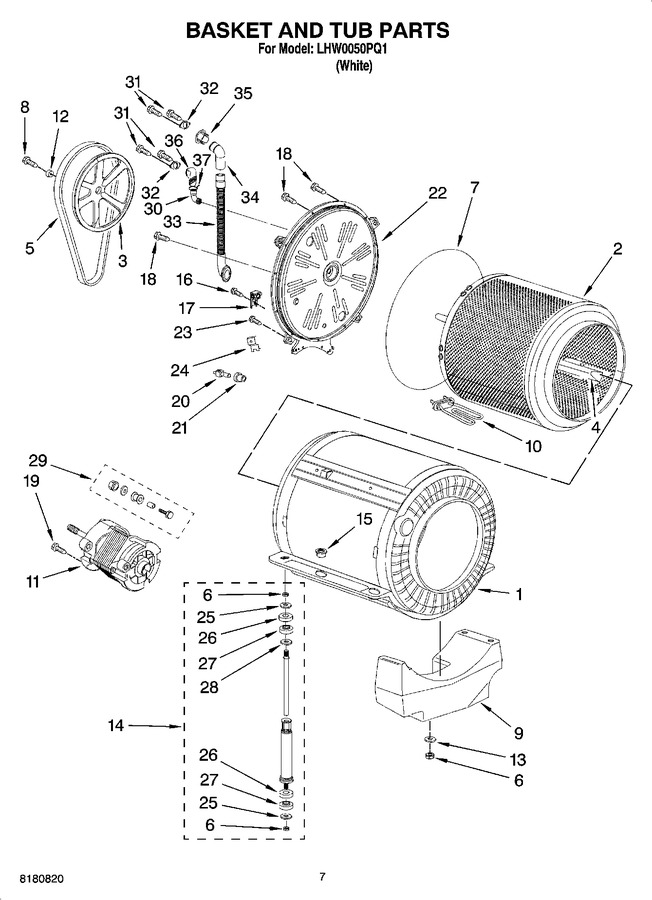

05 - Basket And Tub Parts


06 - Pump Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8182441		Tub				$ 325.94
2	8182454		Basket				$ 432.12
3	8182737		Pulley				$ 359.12
4	8182444		Baffle				$ 74.70
5	8182450		Drive Belt				$ 57.57
6	8182739		Nut   (Replaces: 8182539)				$ 352.98
7	8182445		Gasket, Tub				$ 48.64
8	8182440		Screw				$ 43.18
9	8182446		Counterweight, Bottom				$ 114.35
10	8182448		Heater				$ 140.39
11	8182447		Motor, Main Drive				$ 379.41
12	8182457		Washer				$ 52.83
13	8182453		Washer		Appelez-nous	-
14	8182439		Shock Absorber		Appelez-nous	-
15	8182451		Bushing		Appelez-nous	-
16	489392		Screw   (Replaces: 8182443)				$ 14.02
17	8182456		Thermostat				$ 120.86
18	8182432		Screw		Appelez-nous	-
19	8182458		Screw, Ground				$ 41.56
20	8182433		Thermal Cutoff				$ 101.55
21	8182435		Gasket		Appelez-nous	-
22	8182455		Cover, Rear Tub (includes Seal & Bearings)		Appelez-nous	-
23	WP12990527		Screw (ground)   (Replaces: 8182459)			Immediately	$ 8.76
24	8182434		Support, Element		Appelez-nous	-
25	8182436		Washer		Appelez-nous	-
26	8182437		Bushing, Upper		Appelez-nous	-
27	8182438		Bushing, Lower		Appelez-nous	-
28	8182442		Washer		Appelez-nous	-
29	8182739		Kit, Motor Mount				$ 352.98
30	280163		Vent Tube, Upper   (Replaces: 8182567)		Appelez-nous	-
31	WP12990527		Screw   (Replaces: 8182412)			Immediately	$ 8.76
32	8182568		Ring, Locking		Appelez-nous	-
33	8182566		Vent Tube, Lower		Appelez-nous	-
34	8055063		Elbow, Right		Appelez-nous	-
35	WP8055228		Collar   (Replaces: 8055228)				$ 19.93
36	280163		Elbow, Left   (Replaces: 8182572)		Appelez-nous	-
37	8182571		Clamp, Hose		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
