SELECT A DIAGRAM

01 - Access Panel


02 - Blower Motor-blower/plenum


03 - Blower Motor-convection


04 - Blower Motor-cooling


05 - Body


06 - Burner/manifold Assembly


07 - Control Panel


08 - Door


09 - Gas Controls (wht)


10 - Internal Controls


11 - Main Top


12 - Oven Liner

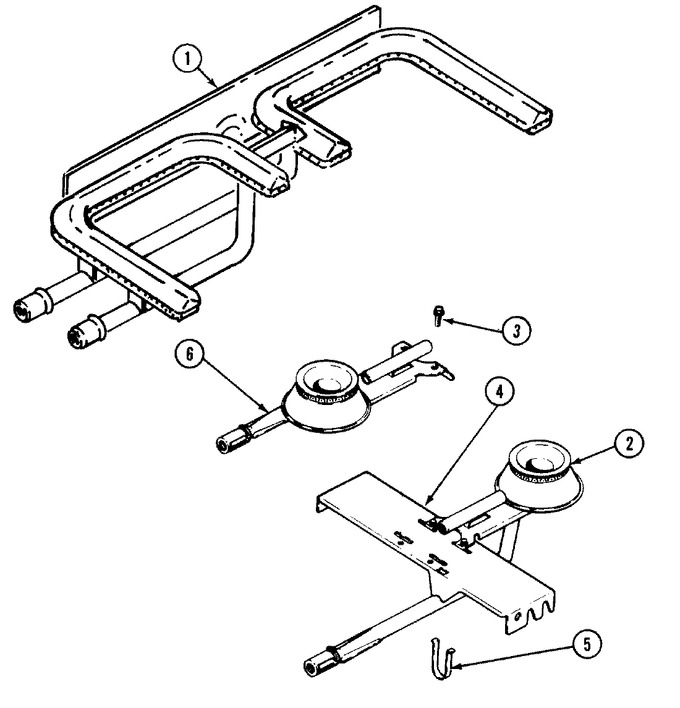

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y712601		Burner, Grill	1			$ 355.82
2	74005189		Burner, Rear   (Replaces: Y705402)	2			$ 247.02
2	705106		Burner, Rear	1	Appelez-nous	-
3	WP90767		Screw   (Replaces: 715773)	1		Immediately	$ 8.25
4	WP3801F403-80		Bracket, Burner   (Replaces: Y704519)	1			$ 83.01
5	704549		Clip, Spring	1	Appelez-nous	-
6	WP7505P283-60		Burner, Front   (Replaces: Y705401)	2			$ 290.90
6	705105		Burner, Front	1			$ 69.29
