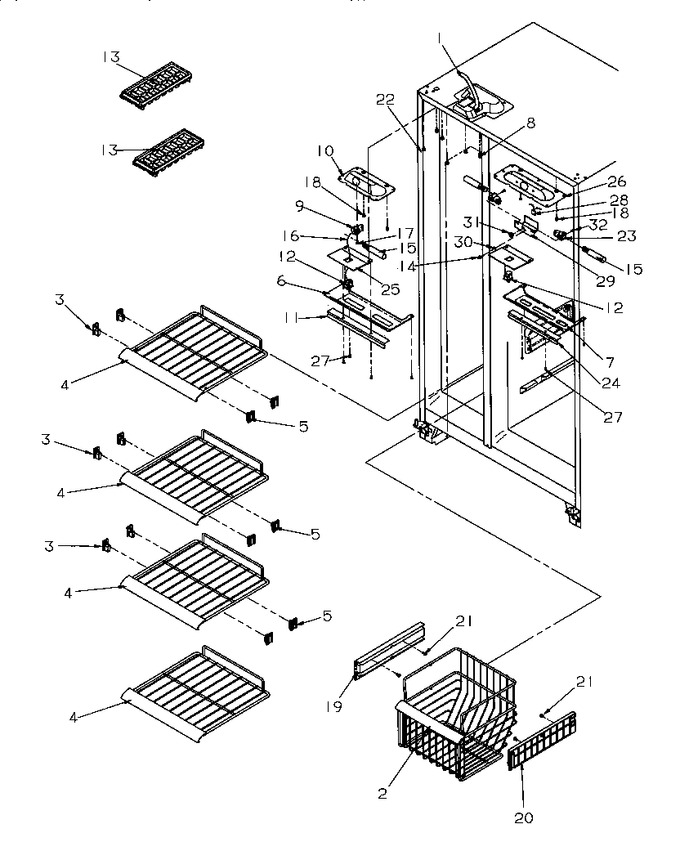

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10945703 | Harness-inner Cab |
|
- | |||||
| 2 | 12012003 | Basket, Freezer |
|
- | |||||
| 3 | 12015001 | Support-l Shelf |
|
- | |||||
| 4 | 12012603 | Shelf, Stat. Freezer |
|
- | |||||
| 5 | 10941101 | Support, R Shelf |
|
- | |||||
| 6 | 10493301 | Cover, Frz Light |
|
- | |||||
| 7 | 10493201 | Cover, Ref. Light |
|
- | |||||
| 8 | M0581001 | Grommet, Screw |
|
- | |||||
| 9 | D7845102 | Socket, Lamp |
|
- | |||||
| 10 | D7863903 | Housing Freezer Light |
|
- | |||||
| 11 | 10014715 | Shield, Light |
|
- | |||||
| 12 | W11384469 | Switch, Light (Replaces: C3680308) |
|
Immediately | $ 39.09 | ||||
| 13 | WP841180A | Tray, Ice (Replaces: D7725401) |
|
Immediately | $ 47.84 | ||||
| 14 | A4539626 | Pop Rivet |
|
- | |||||
| 15 | M0360402 | Light Bulb (230/240 Vac) |
|
- | |||||
| 16 | D7383435 | Wire Jumper |
|
- | |||||
| 17 | M0217224 | Screw |
|
- | |||||
| 18 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 19 | 12013001 | Rail, L. Dbl Shelf |
|
- | |||||
| 20 | 10991801 | Rail, R Double |
|
- | |||||
| 21 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 22 | M0580007 | Grommet, Screw |
|
- | |||||
| 23 | D7845101 | Socket, Lamp |
|
- | |||||
| 24 | 10014717 | Shield, Light |
|
- | |||||
| 25 | D7297603 | Cover, Light Sw |
|
- | |||||
| 26 | D7716410 | Housing-ref Light |
|
- | |||||
| 27 | M0219546 | Screw |
|
- | |||||
| 28 | Y10244001 | Harness, Ref Light |
|
- | |||||
| 29 | D7844803 | Socket Shield |
|
- | |||||
| 30 | M0320905 | Terminal Ground A |
|
- | |||||
| 31 | A4554813 | Snap Bushing |
|
- | |||||
| 32 | M0217225 | Screw |
|
- |
