SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Drain System, Rollers, And Evap Assy


04 - Fz Door


05 - Fz Shelves And Light


06 - Ice Bucket Auger And Ice Maker Parts


07 - Ice Maker/control Assy


08 - Ice/water Cavity & Elec Brkt Assy


09 - Machine Compartment


10 - Ref Door


11 - Ref/fz Shelves, Lights, And Hinges


12 - Shelf, Crisper Assemblies & Toe Grille

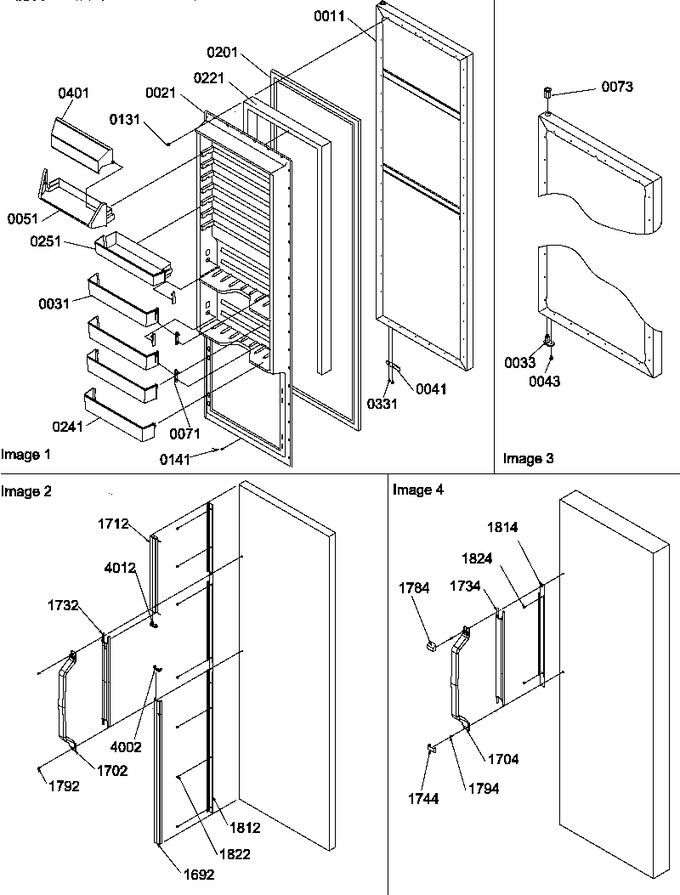

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10881301W		Assy Ref. Door		Appelez-nous	-
21	10866101		Liner-ref Dr		Appelez-nous	-
31	10520405		Shelf, Chiller				$ 31.15
33	R0181181		Closure, Door (wht)   (Replaces: 12113202)			Immediately	$ 7.55
41	C8972405		Stop-w Door		Appelez-nous	-
43	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
51	12083301		Shelf, Dairy		Appelez-nous	-
71	10202001		Clip, Retainer		Appelez-nous	-
73	10961001		Bushing, Door (wht)		Appelez-nous	-
131	M0219730		Screw				$ 7.65
141	M0226705		Screw, Shoulder		Appelez-nous	-
201	10359708		Gasket, Door (w Ref)		Appelez-nous	-
221	B0523563		Insulation Ft. K		Appelez-nous	-
241	10521812		Shelf-ref Door		Appelez-nous	-
251	12083401		Bucket, Ref Door		Appelez-nous	-
331	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
401	10527307		Door, Dairy		Appelez-nous	-
1692	10810508		Trim, Bottom Door W Ref		Appelez-nous	-
1702	12139304		Handle, Door (white)		Appelez-nous	-
1712	10810308		Trim-w Top Ref Dr		Appelez-nous	-
1732	10810401		Trim-w Ctr Dr		Appelez-nous	-
1792	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
1794	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
1812	10852214		Retainer-ref Trim		Appelez-nous	-
1822	M0216517		Screw		Appelez-nous	-
1824	M0216517		Screw		Appelez-nous	-
4002	10953111		Insert, Trim(white)		Appelez-nous	-
4012	10953112		Insert, Trim(white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
