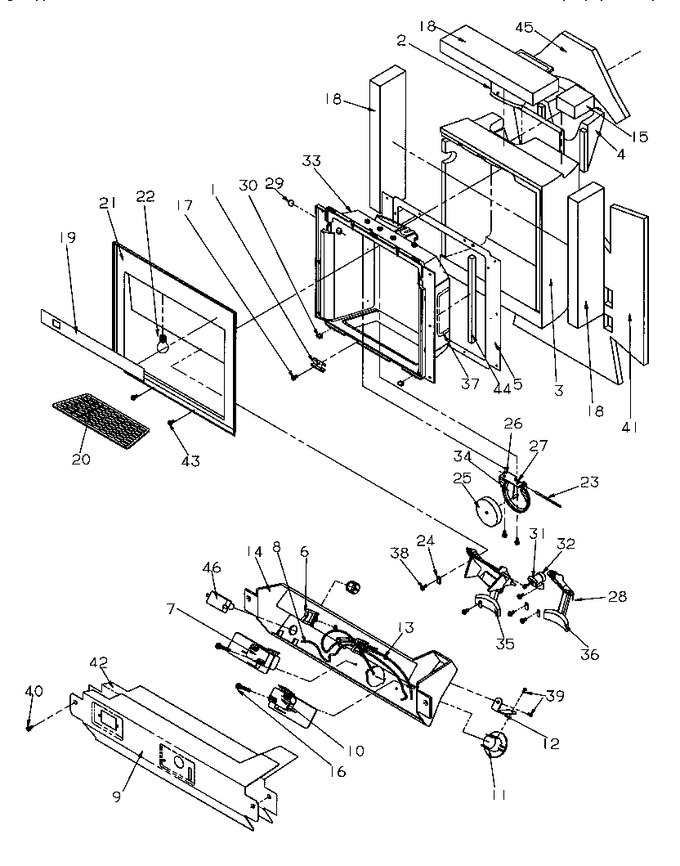

08 - Ice And Water Cavity


09 - Ice Maker


10 - Machine Compartment


11 - Ref Door


12 - Ref Door Hinge And Trim


13 - Ref Shelving And Drawers


14 - Ref/fz Controls & Cabinet


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8992901		Clip		Appelez-nous	-
2	10504101		Chute, Ice		Appelez-nous	-
3	10895401		Insul., I/w Cavity		Appelez-nous	-
4	10895501		Insul, Ice Chute		Appelez-nous	-
5	D7791003		Gasket Cavity		Appelez-nous	-
6	B5667304		Wire Clip		Appelez-nous	-
7	C8972704		Switch , Light		Appelez-nous	-
8	D7383470		Wire, Jumper		Appelez-nous	-
9	10131804		Cover Elect Brkt		Appelez-nous	-
10	C8972703		Switch		Appelez-nous	-
11	D7845102		Socket, Lamp		Appelez-nous	-
12	10295701		Bracket, Socket Mtg		Appelez-nous	-
13	D7383469		Wire-jumper		Appelez-nous	-
14	10323305		Bracket, Elec Mtg		Appelez-nous	-
15	B0523562		Insul. By The Ft.		Appelez-nous	-
16	M0237809		Screw, T.f.		Appelez-nous	-
17	M0216517		Screw		Appelez-nous	-
18	B0523596		Insul. By The Ft.		Appelez-nous	-
19	10984620		Insert-e Facade		Appelez-nous	-
20	D7750602		Grille Sump (black)		Appelez-nous	-
21	10986111		Facade- E Disp		Appelez-nous	-
22	M0360401		Light Bulb (220/250) 6 Watt		Appelez-nous	-
23	A1061501		Pin, Chute Door		Appelez-nous	-
24	A1061601		Retainer, Ice Arm		Appelez-nous	-
25	B8380701		Insulation, Chute Door		Appelez-nous	-
26	B8380801		Brkt-chute Door		Appelez-nous	-
27	B8380901		Spring,chute Door				$ 7.18
28	B8385401		Spring, Return		Appelez-nous	-
29	M0311601		Plug, Button		Appelez-nous	-
30	B8390301		Clip, Facade		Appelez-nous	-
31	C8972501		Retainer Door Delay		Appelez-nous	-
32	C8973601		Delay, Door		Appelez-nous	-
33	10876003		Cavity, Disp (black)		Appelez-nous	-
34	10246601		Kit,chute Dr No.3		Appelez-nous	-
35	10872004		Arm, Ice Disp.		Appelez-nous	-
36	10872104		Arm,wtr Disp B		Appelez-nous	-
37	10295902		Heater, Cavity		Appelez-nous	-
38	M0211116		Screw, Sm		Appelez-nous	-
39	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
40	M0216705		Screw				$ 5.81
41	10941501		Insul, Batt		Appelez-nous	-
42	10419402		Insulation, Dispenser Control		Appelez-nous	-
43	M0219601		Screw		Appelez-nous	-
44	A3030357		Gasket		Appelez-nous	-
45	12044501		Gasket-ice Chute		Appelez-nous	-
46	C8988902		Switch, Cavity Light		Appelez-nous	-
NI	R0156692		Kit,chute Dr No.3		Appelez-nous	-
