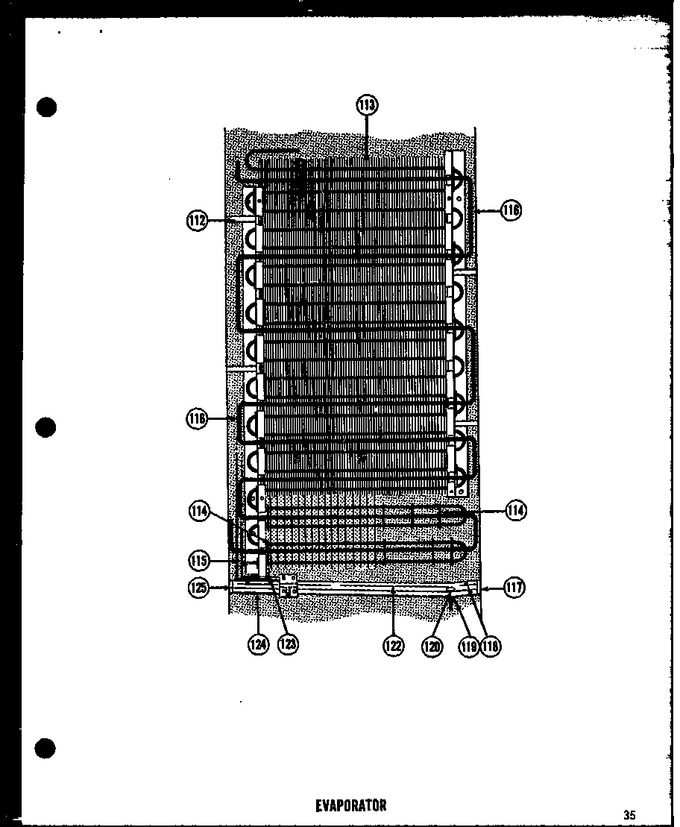

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 112 | A3095503 | Air Block |
|
- | |||||
| 113 | D7001601 | Evaporator Coil |
|
- | |||||
| 114 | M0110301 | Clip |
|
- | |||||
| 115 | B5605701 | Heater Drip Tr A-k |
|
- | |||||
| 116 | C3614701 | Heater, Defrost |
|
- | |||||
| 117 | A3098302 | Gasket K |
|
- | |||||
| 118 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 119 | C3607401 | Drain Tube |
|
- | |||||
| 120 | A3113701 | Drain Screen |
|
- | |||||
| 122 | A3077901 | Gasket A-k |
|
- | |||||
| 123 | DTS60 | Thermostat (Replaces: B0592401) |
|
Immediately | $ 12.22 | ||||
| 124 | C3597801 | Drip Tray A-k |
|
- | |||||
| 125 | A3098301 | Gasket Drip Tray K |
|
- | |||||
| NI | A3080001 | Plug, Button (blk) |
|
- | |||||
| NI | M0211543 | Screw |
|
- | |||||
| NI | A0382901 | Cover Plate -g |
|
- | |||||
| NI | 67006425 | Screw (Replaces: M0230917) |
|
Immediately | $ 7.30 | ||||
| NI | M0580001 | Grommet, Screw |
|
- | |||||
| NI | M0211530 | Screw |
|
- | |||||
| NI | A3102501 | Cover A-k |
|
- | |||||
| NI | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| NI | A0382801 | Gasket |
|
- |
