SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor


03 - Controls


04 - Evaporator Area & Rollers


05 - Freezer Door


06 - Interior Cabinet & Freezer Shelving


07 - Optional Ice Maker Kit Ic11b P1328003w


08 - Refrigerator Door


09 - Refrigerator Shelving


10 - Supplemental Information


11 - Wiring Information

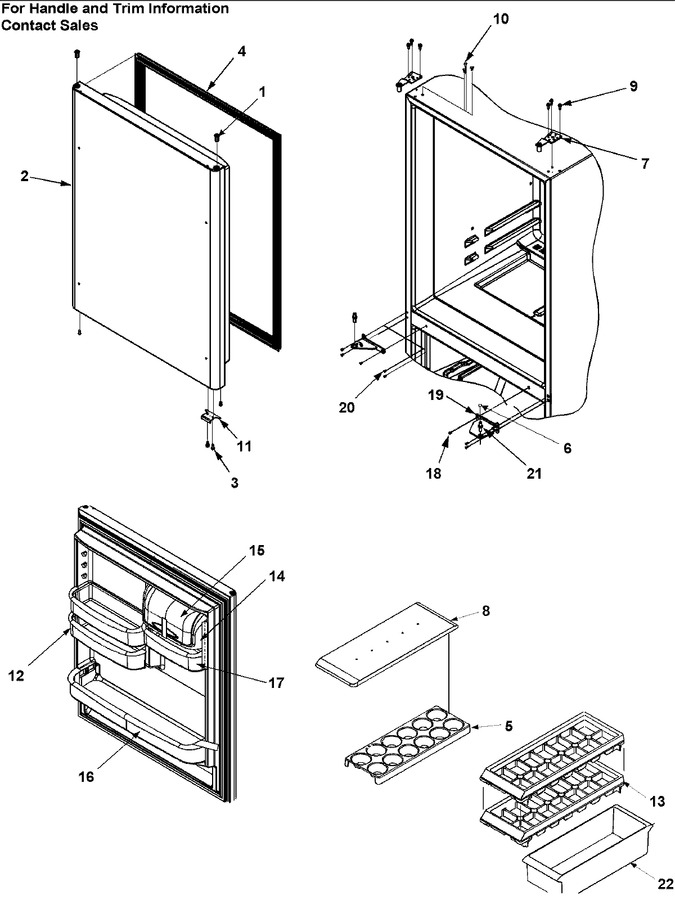

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP67004977		Bushing, Door (wht)   (Replaces: 67003368)				$ 7.38
2	67002622		Ref Dr Foam Assy (wht)		Appelez-nous	-
3	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 7.38
4	W10443317		Gasket, Ref Door (wht)   (Replaces: 67003556)				$ 330.11
5	10436506		Tray, Egg				$ 8.28
6	WPM0274057		Shim, Non Metal (wht)   (Replaces: M0274057)			Immediately	$ 7.56
7	67002519		Hinge, Top (rt-wht)		Appelez-nous	-
7	67002520		Hinge,top(lt-wht)		Appelez-nous	-
8	10436404		Lid, Utility				$ 60.85
9	R9800670		Screw, Tf   (Replaces: M0238731)				$ 9.52
10	WP67001130		Plug, Top Hinge Button (wht)   (Replaces: M0310729)			Immediately	$ 7.39
11	12968202W		Stop, Door (wht)   (Replaces: 10447108)				$ 62.36
12	67003610		Bucket, Ref Door Lrg		Appelez-nous	-
13	WP841180A		Tray, Ice   (Replaces: 67001205)			Immediately	$ 43.06
14	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 79.21
15	WP67003637		Door, Dairy   (Replaces: 67003637)			Immediately	$ 74.40
16	67002477		Retainer, Door		Appelez-nous	-
17	WPW10324005		Bucket, Ref Door Med   (Replaces: 67003614)				$ 69.98
18	W11573362		Screw, T. F.   (Replaces: M0226233)				$ 13.25
19	12655102AP		Hinge, Center (wht)   (Replaces: 67002028)				$ 135.78
20	WP489349		Screw, Tf   (Replaces: M0239730)			Immediately	$ 7.59
21	12002311		Pin, Hinge (ctr)   (Replaces: 10351003)				$ 7.42
22	10423131		Bin, Utility				$ 31.13

    View Diagram in Separate Window       Print Part List
