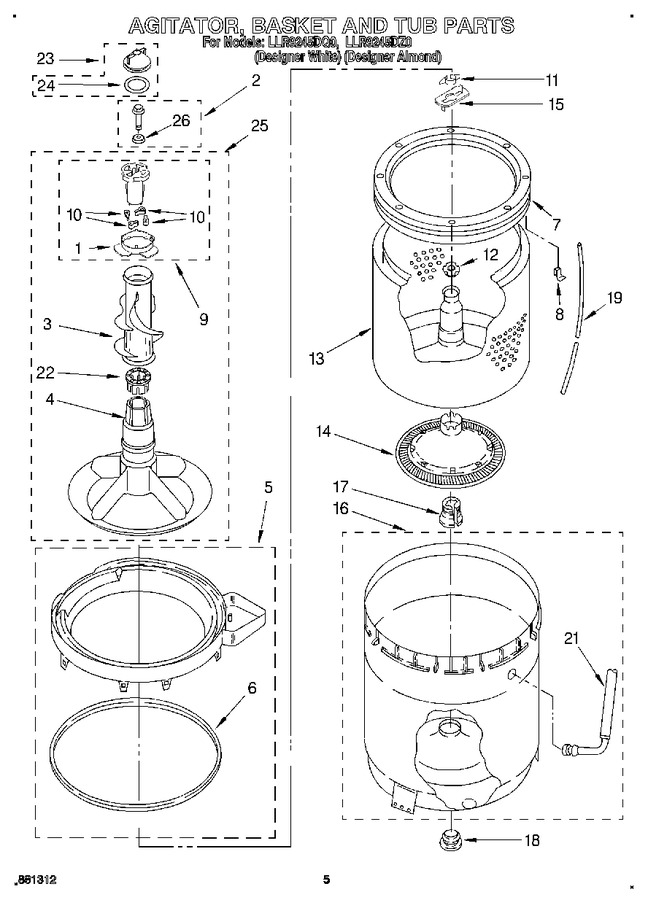

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3363661 | Bearing, Driven Cam (Replaces: 3363661) |
|
$ 8.23 | |||||
| 2 | WP358237 | Screw & Washer (5-16-24 X 1) (Replaces: 358237) |
|
Immediately | $ 8.86 | ||||
| 3 | WP3349019 | Clothes Mover (Replaces: 3349019) |
|
$ 227.26 | |||||
| 4 | WP3350830 | Agitator (Replaces: 3350830) |
|
$ 177.60 | |||||
| 5 | 3360611 | Tub Ring & Gasket |
|
$ 88.45 | |||||
| 6 | WP3359586 | Gasket, Tub Ring (Replaces: 3359586) |
|
$ 94.63 | |||||
| 7 | WP8519815 | Clip, Balance Ring (8) (Replaces: 387867) |
|
$ 9.17 | |||||
| 8 | 387868 | Balance Ring |
|
- | |||||
| 9 | 285811 | Cam Driven (Replaces: 3363663) |
|
Immediately | $ 32.59 | ||||
| 10 | 80040 | Dog, Agitator Clutch (Replaces: 3366877) |
|
Immediately | $ 3.64 | ||||
| 11 | WP3354845 | Clip, Agitator (Replaces: 3354845) |
|
$ 24.74 | |||||
| 12 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 11.56 | ||||
| 13 | 3357245 | Basket |
|
- | |||||
| 14 | 285868 | Filter-plate (Replaces: 3361948) |
|
Immediately | $ 22.76 | ||||
| 15 | WP8543666 | Washer, Agitator (Replaces: 3355921) |
|
Immediately | $ 12.31 | ||||
| 16 | 63039 | Tub |
|
- | |||||
| 17 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 27.49 | ||||
| 18 | W10814296 | Gasket, Center Post (Replaces: 383727) |
|
Immediately | $ 9.98 | ||||
| 19 | WP353244 | Hose, Pressure Switch (Replaces: 3347780) |
|
Immediately | $ 59.93 | ||||
| 21 | 3358198 | Hose, Bleach |
|
- | |||||
| 22 | 285587 | Spacer, Thrust (Replaces: 3350389) |
|
Immediately | $ 4.42 | ||||
| 23 | WPW10074580 | Cap, Barrier (Replaces: 3354733) |
|
Immediately | $ 13.02 | ||||
| 24 | WPW10072840 | Seal-inner Cap (Replaces: 3348855) |
|
Immediately | $ 8.72 | ||||
| 25 | 3350829 | Agitator Assy |
|
- | |||||
| 26 | WP21365 | Washer (Replaces: 21365) |
|
$ 11.83 |
