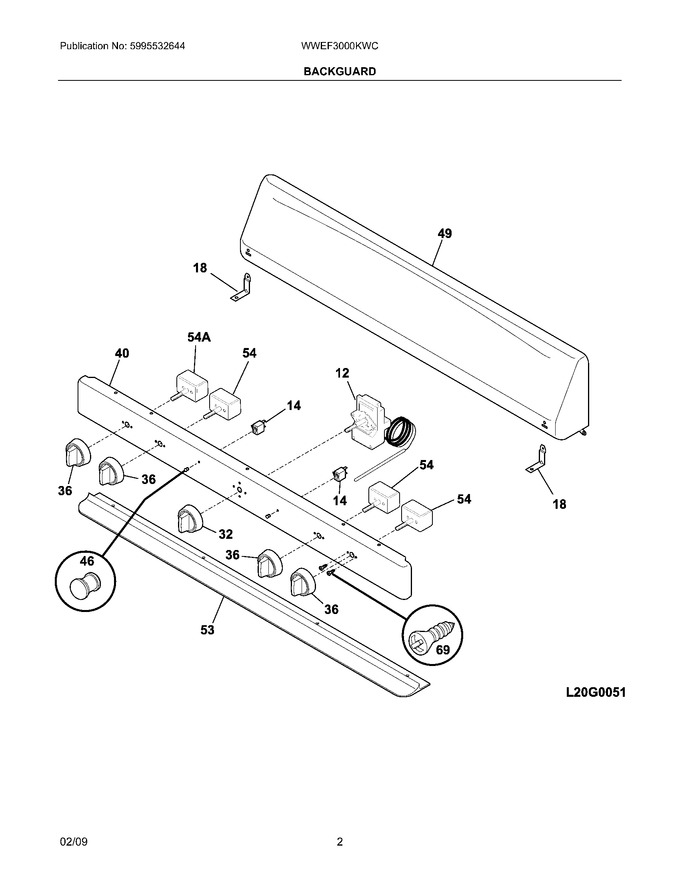

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	316022503		Light/lamp,indicator ,surface ,250 V			Immediately	$ 77.96
18	316263900		Bracket,backguard		Appelez-nous	-
32	316102331		Knob,thermostat ,white		Appelez-nous	-
36	316102327		Knob,control ,white		Appelez-nous	-
40	316201851		Panel-manifold,white ,w/graphic		Appelez-nous	-
46	316557300		Lens-light/lamp,indicator ,clear			Immediately	$ 18.63
49	316263802		Panel,backguard ,white		Appelez-nous	-
53	316238500		Shield,heat ,extrusion		Appelez-nous	-
69	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg				$ 3.47
F12	316215901		Thermostat				$ 376.66
F54	316498602		Switch,infinite ,small Element				$ 98.20
F54A	316498603		Switch,infinite ,large Element				$ 90.98
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 30.55
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 11.13
