SELECT A DIAGRAM

01 - Back Unit


02 - Evap And Air Handler


03 - Fz Door


04 - Fz Door


05 - Fz Shelving And Ref Light


06 - Machine Compartment - Pan Comp


07 - Ref Door


08 - Ref Door

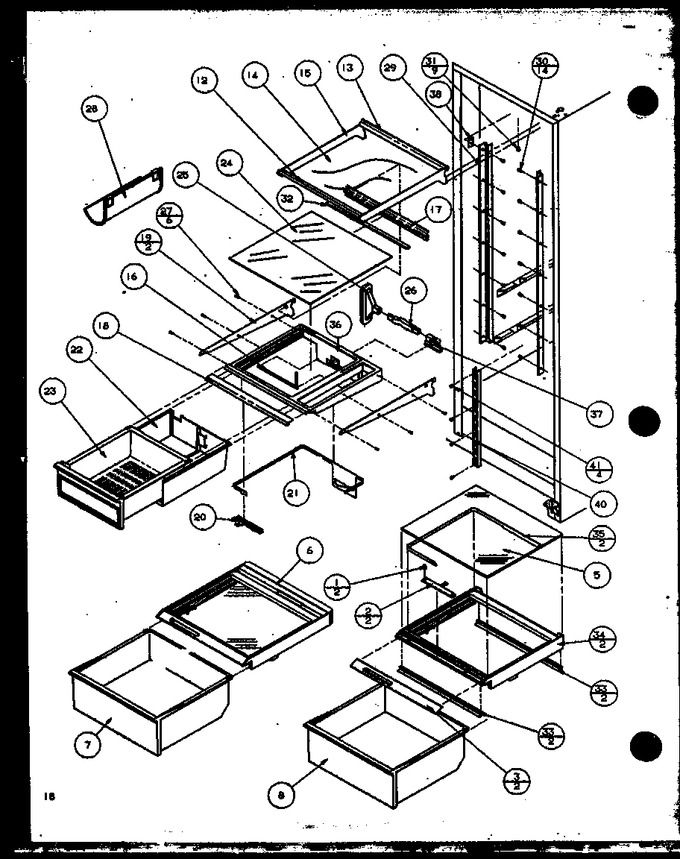

09 - Ref Shelving And Drawers


10 - Ref/fz Controls And Cabinet Parts


11 - Rollers And Cabinet Back


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10038401		Knob, Crisper Control		Appelez-nous	-
2	D7860601		Slide, Crisper Control		Appelez-nous	-
3	D7616628		Trim		Appelez-nous	-
5	D7421274		Glass Crisper Top		Appelez-nous	-
6	D7421273		Glass Crisper Top		Appelez-nous	-
7	D7782106		Crisper Pan		Appelez-nous	-
8	D7782105		Fruit Pan		Appelez-nous	-
12	10049925		Trim - Front Shelf		Appelez-nous	-
12	10049926		Trim -front Shelf		Appelez-nous	-
13	C8913604		Trim, Shelf Rear		Appelez-nous	-
13	C8913617		Trim, Glass Shelf Rear		Appelez-nous	-
14	10036080		Glass - Shelf		Appelez-nous	-
14	D7421246		Glass Shelf		Appelez-nous	-
15	D7871018		Frame Cant. Door		Appelez-nous	-
15	D7871009		Frame-cantilever Shelf		Appelez-nous	-
16	A3263905		Gasket-per Ft		Appelez-nous	-
17	C8990402		Trim, Rear Shelf		Appelez-nous	-
18	10049930		Trim -front Shelf		Appelez-nous	-
19	D7862925		Blank Side Rail (silver)		Appelez-nous	-
19	D7862924		Blank Side Rail		Appelez-nous	-
20	D7859401		Slide-mk Control		Appelez-nous	-
21	D7859503		Band M.k. Control		Appelez-nous	-
22	D7698105		Sleeve, Meat Keeper		Appelez-nous	-
23	D7698316		Meat Pan		Appelez-nous	-
24	D7421268		Glass Shelf M.k.		Appelez-nous	-
25	D7873601		Grommet, Mk		Appelez-nous	-
26	D7869001		Xduct M.k. Air		Appelez-nous	-
27	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
28	D7547604		Bottle Rack		Appelez-nous	-
29	D7789807		Ladder Cantilever		Appelez-nous	-
30	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
31	M0580007		Grommet, Screw		Appelez-nous	-
32	10043102		Ext. Rear Glass		Appelez-nous	-
33	D7718403		Seal, Crisper Front		Appelez-nous	-
33	D7718404		Seal, Crisper Rear		Appelez-nous	-
34	D7853206		Frame Crisper		Appelez-nous	-
34	D7853204		Frame Crisper		Appelez-nous	-
35	D7859603		Band Crisper Control		Appelez-nous	-
36	D7857001		Frame M.k.		Appelez-nous	-
37	D7869102		Ext. Air Duct		Appelez-nous	-
38	C8992301		Bracket		Appelez-nous	-
40	D7599003		Ladder, Center		Appelez-nous	-
41	M0230923		Screw		Appelez-nous	-
NI	R0179137		Crisper Top Assy, Lower		Appelez-nous	-
NI	R0179138		Crisper Top Assy, Upper		Appelez-nous	-
NI	10279118		Glass Full Shelf Assembly		Appelez-nous	-
NI	10279119		Glass, Full Shelf Assembly		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
