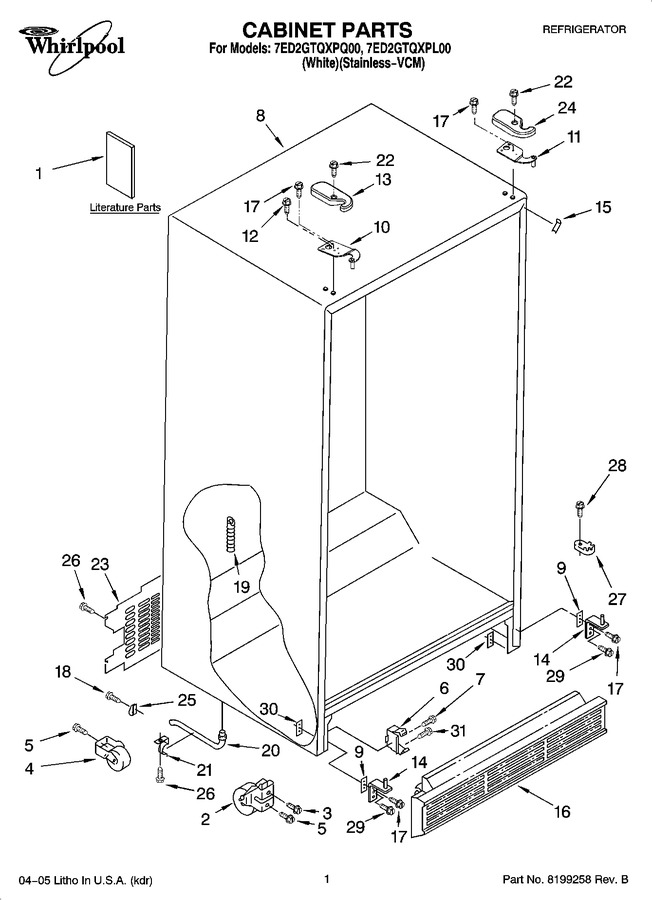

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 628370 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | 2261383 | Use & Care Guide |
|
- | |||||
| 1 | 2255137 | Service & Wiring Sheet |
|
- | |||||
| 1 | 2308161 | Energy Guide |
|
- | |||||
| 2 | 2174748 | Front Roller (2) |
|
- | |||||
| 3 | W10850698 | Screw (Replaces: 3400517) |
|
$ 14.42 | |||||
| 4 | WPW10250570 | Roller (rear) (2) (Replaces: 2196236) |
|
$ 42.18 | |||||
| 5 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 8.11 | ||||
| 7 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 8 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 9 | 2209697 | Shim |
|
$ 41.25 | |||||
| 10 | WP2203770 | Hinge Top (fc) (Replaces: 2203770) |
|
$ 100.30 | |||||
| 11 | WP2203771 | Hinge Top (rc) (Replaces: 2203771) |
|
$ 103.13 | |||||
| 12 | WP489128 | Screw (Replaces: 8281149) |
|
$ 11.40 | |||||
| 13 | WP2203407B | Hinge Cover (fc) (black) (Replaces: 2203407B) |
|
$ 20.50 | |||||
| 13 | WP2203407W | Hinge Cover (fc) (white) (Replaces: 2203407W) |
|
$ 21.79 | |||||
| 14 | 8201707 | Hinge Bottom (2) (Replaces: 2217075) |
|
$ 97.45 | |||||
| 15 | 2196097 | Filler, Wrapper (black) |
|
- | |||||
| 15 | 2196094 | Filler, Wrapper (white) |
|
- | |||||
| 16 | 2198469B | Grille (black) |
|
- | |||||
| 16 | W11167901 | Grille (white) (Replaces: 2198469W) |
|
$ 116.76 | |||||
| 17 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 18 | W11693756 | Screw (Replaces: 488687) |
|
Immediately | $ 14.76 | ||||
| 19 | W11566763 | Drain Fitting (Replaces: 940139) |
|
Immediately | $ 53.45 | ||||
| 20 | WP1108438 | Tube, Extension (Replaces: 1108438) |
|
Immediately | $ 32.90 | ||||
| 21 | WP1108439 | Clip, Drain Tube (Replaces: 1108439) |
|
$ 11.28 | |||||
| 22 | WP8281227 | Screw (Replaces: 8281227) |
|
$ 10.96 | |||||
| 23 | 2214543 | Cover, Unit |
|
- | |||||
| 24 | WP2203408W | Hinge Cover (rc) (white) (Replaces: 2203408W) |
|
$ 22.02 | |||||
| 24 | WP2203408B | Hinge Cover (rc) (black) (Replaces: 2203408B) |
|
$ 19.56 | |||||
| 25 | 489348 | Clamp, Service Cord |
|
- | |||||
| 26 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 8.05 | |||||
| 27 | WPW10329686 | Door Closer, Lower Cam (2) (Replaces: 2155311) |
|
Immediately | $ 5.90 | ||||
| 28 | WP489483 | Screw (Replaces: 489483) |
|
$ 11.41 | |||||
| 29 | W10856122 | Screw (Replaces: 3400103) |
|
$ 8.27 | |||||
| 30 | WP2304249 | Plate, Screw (Replaces: 2304249) |
|
$ 14.94 | |||||
| 31 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 |
