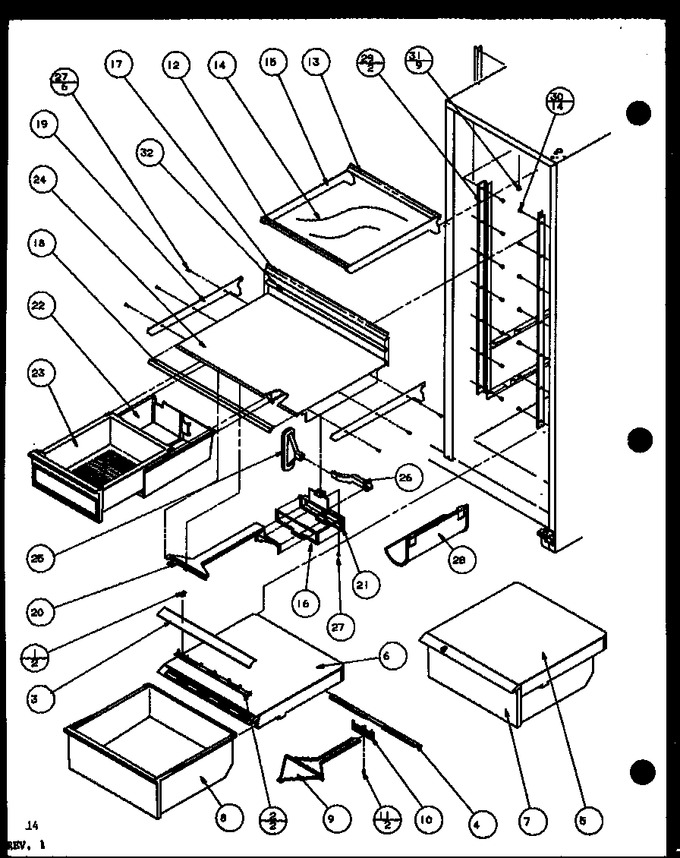

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8908301 | Knob Humidity A-k |
|
- | |||||
| 2 | D7587705 | Slide Humidity |
|
- | |||||
| 3 | D7616604 | Trim |
|
- | |||||
| 4 | D7764101 | Damper Humidity |
|
- | |||||
| 5 | D7781902 | Crisper Top |
|
- | |||||
| 6 | D7781903 | Crisper Top |
|
- | |||||
| 7 | D7782105 | Fruit Pan |
|
- | |||||
| 8 | D7782106 | Crisper Pan |
|
- | |||||
| 9 | D7782201 | Slide Crisper Cont. |
|
- | |||||
| 10 | D7807601 | Support |
|
- | |||||
| 11 | M0230017 | Screw,tc |
|
- | |||||
| 12 | C8913511 | Trim, Front Shelf |
|
- | |||||
| 13 | C8913604 | Trim, Shelf Rear |
|
- | |||||
| 14 | D7421246 | Glass Shelf |
|
- | |||||
| 15 | D7788402 | Frame, Cont. Shelf A |
|
- | |||||
| 16 | A3030305 | Gasket-per Ft |
|
- | |||||
| 17 | C8831811 | Trim, Rear |
|
- | |||||
| 18 | C8913512 | Trim Front |
|
- | |||||
| 19 | D7600037 | Blank Side Rail / |
|
- | |||||
| 20 | D7697903 | M.k. Control Slide |
|
- | |||||
| 21 | D7698003 | Housing M.k. Slide |
|
- | |||||
| 22 | D7698105 | Sleeve, Meat Keeper |
|
- | |||||
| 23 | D7698316 | Meat Pan |
|
- | |||||
| 24 | D7781802 | Top, Meat Keeper |
|
- | |||||
| 25 | D7788001 | Grommet, Mk |
|
- | |||||
| 26 | D7788101 | Duct, M.k. Air |
|
- | |||||
| 27 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 28 | D7547604 | Bottle Rack |
|
- | |||||
| 29 | D7789801 | Ladder, Cantilever |
|
- | |||||
| 30 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 7.30 | ||||
| 31 | M0580007 | Grommet, Screw |
|
- | |||||
| 32 | M0275163 | Tape Per Roll |
|
- | |||||
| NI | R0179106 | Crisper Top Assy |
|
- | |||||
| NI | D7714647 | Glass Shelf Assy |
|
- | |||||
| NI | R0179105 | Crisper Top Assy |
|
- |
