SELECT A DIAGRAM

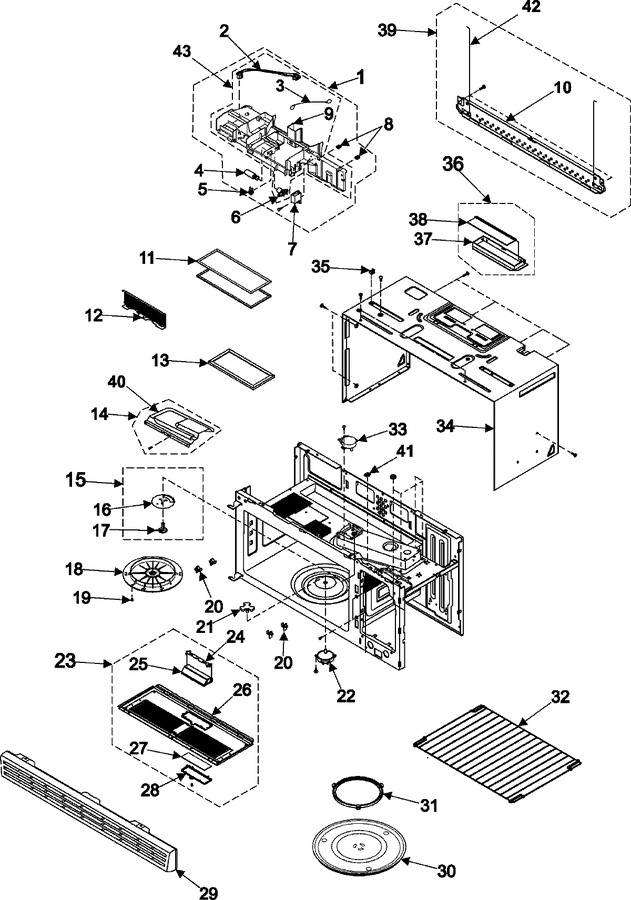

01 - Body/cavity/elements


02 - Control Panel/door Assembly


03 - Internal Controls/latch Asy/base


04 - Supplemental Information


05 - Wiring Information Sheet 1


06 - Wiring Information Sheet 2


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE97-00366C		Assy-duct Upper;smh7175,humidi		Appelez-nous	-
2	DE97-00585A		Assy-sensor Humidity;smh7175we				$ 10.28
3	DE39-40673F		Wire Harness-h;smh7175we/xaa,-		Appelez-nous	-
4	4713-001013		Lamp-incandescent			Immediately	$ 20.00
5	555555		Sw-thermo   (Replaces: DE47-20059A)				$ 168.82
6	DE47-00006A		Holder-lamp				$ 19.53
7	DE59-50002A		Capacitor-motor			Immediately	$ 30.38
8	DE60-30063A		Nut-mounting				$ 12.63
9	DE67-00168A		Duct-upper		Appelez-nous	-
10	555555		Plate-mounting   (Replaces: DE70-00378A)				$ 168.82
11	DE63-00196A		Filter-air			Immediately	$ 16.41
12	DE63-00138A		Cover-front		Appelez-nous	-
13	555555		Filter-charcoal   (Replaces: DE63-30016D)				$ 168.82
14	DE97-00411A		Assy-bkt Duct Upper		Appelez-nous	-
15	DE97-00367A		Assy-stirrer;smh7175,h/stirrer				$ 22.31
16	DE31-00023A		Blade-stirrer				$ 113.25
17	DE61-00505A		Holder-stirrer				$ 119.94
18	DE71-60121A		Cover-stirrer				$ 18.69
19	DE66-20095B		Button-lock				$ 19.53
20	DE61-00375A		Holder-rack				$ 19.53
21	DE67-00179A		Coupler			Immediately	$ 25.88
22	555555		Motor, Drive   (Replaces: DE31-10172A)				$ 168.82
23	DE97-00360B		Assy-base Bottom;smh7175,gry,-		Appelez-nous	-
24	4713-001013		Lamp-incandescent			Immediately	$ 20.00
25	Y00000000		See Note Bracket-bottom Lamp Currently Unavailable		Appelez-nous	-
26	DE61-00406A		Base-bottom		Appelez-nous	-
27	DE64-00911A		Glass-cooktop Lamp				$ 20.00
28	DE63-00137B		Cover-glass Cooktop				$ 28.25
29	DE64-00755A		Grille		Appelez-nous	-
30	DE74-20002A		Tray-cooking				$ 120.31
31	DE97-00368A		Assy-guide Roller			Immediately	$ 39.06
32	DE97-00369A		Assy-wire Rack				$ 114.29
33	DE31-10173A		Motor-drive				$ 60.97
34	DE64-00754B		Panel-outer (wht)				$ 196.28
35	DE92-90508A		Assy-holder Nut			Immediately	$ 19.53
36	555555		Assy-hood Damper   (Replaces: DE92-90242A)				$ 168.82
37	DE72-40022A		Damper-main				$ 13.41
38	DE71-60051A		Cover-damper				$ 25.88
39	DE97-00363A		Assy-mounting Plate				$ 24.90
40	DE61-00410A		Bracket-duct Upper		Appelez-nous	-
41	DE63-00359A		Clip		Appelez-nous	-
42	DE66-00121A		Wire-mounting				$ 17.88
43	DE97-00371B		Assy-duct Upper(sub);jmv8186,h		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
