Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 DE94-00881C Assy Door Appelez-nous -
2 DE97-00358C Assy-handle Appelez-nous -
3 DE64-00757C Door-a Appelez-nous -
4 555555 Spring-es   (Replaces: 6107-001175) Special Order $ 168.82

5 DE64-00760A Key-door Special Order $ 22.16

6 DE64-00910A Screen-door(b) Special Order $ 102.03

7 DE64-00864A Door-sub Appelez-nous -
8 DE94-00882B Assy Door-e(coating) Special Order $ 131.23

9 DE64-00759A Door-c Special Order $ 29.56

10 DE94-00933J Assy Control Box Appelez-nous -
11 DE94-00939F Assy Control-panel Appelez-nous -
12 DE34-00178K Switch Membrane Appelez-nous -
13 DE64-00766B Window-display;4150,san,t2.0,w Special Order $ 14.81

14 DE64-00763C Control-panel Appelez-nous -
15 DE97-00359A Assy-bracket C/panel Appelez-nous -
16 YRASSOTR200 Assy Pcb Parts Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

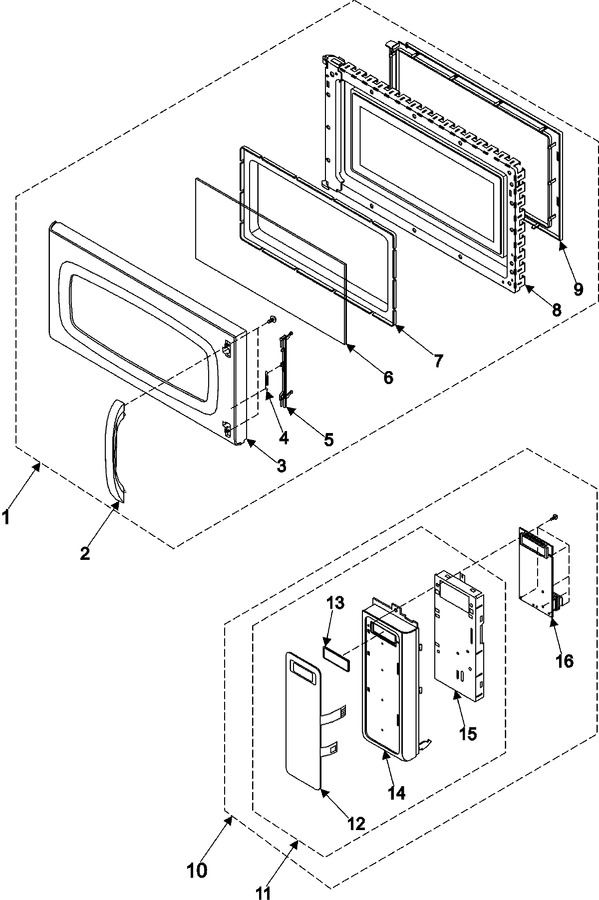

Diagram for SMH7174CC
