SELECT A DIAGRAM

01 - Body/cavity/elements


02 - Control Panel/door Assembly


03 - Internal Controls/latch Asy/base


04 - Supplemental Information


05 - Wiring Information Sheet 1


06 - Wiring Information Sheet 2

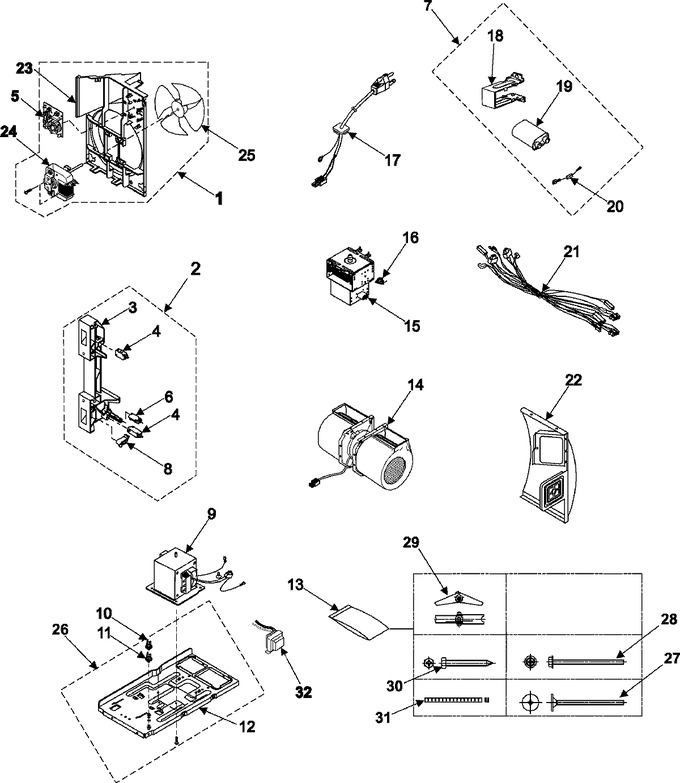

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE97-00365C		Assy-cover Motor;smh7175/smh71		Appelez-nous	-
2	DE96-00082C		Assy Body Latch;smh7175we/xaa,				$ 72.42
3	DE66-00084B		Latch-body   (Replaces: DE66-00084A)				$ 45.53
4	3405-001034		Switch, Micro (125/250 Vac)			Immediately	$ 16.50
5	DE96-00400B		Assy Noise Filter;sn-uf12b,250				$ 92.97
6	3405-001033		Switch-micro			Immediately	$ 19.53
7	DE96-00269A		Assy-hvc			Immediately	$ 97.41
8	DE66-90106B		Lever-switch Lower				$ 19.53
9	DE26-00082D		Trans H.v;shv-u1870b,120v,60hz				$ 199.29
10	DE47-20034A		Thermostat			Immediately	$ 22.32
11	555555		Sw-thermo   (Replaces: DE47-20059A)				$ 168.82
12	DE61-00415A		Base-plate		Appelez-nous	-
13	DE92-90505E		Assy-hard Ware				$ 46.00
14	555555		Motor Ventilation;smv-460ua-1,   (Replaces: DE31-00029B)				$ 168.82
15	W10126785		Assy-magnetron		Appelez-nous	-
16	555555		Thermostat   (Replaces: DE47-20007A)				$ 168.82
17	DE96-00218A		Assy-power Cord				$ 87.50
18	DE61-00115A		Bracket-hvc				$ 20.00
19	2501-001011		Capacitor			Immediately	$ 82.41
20	DE91-70063D		Assy-hvd			Immediately	$ 17.65
21	DE96-00491A		Assy-wire Harness A;smh7175we/		Appelez-nous	-
22	DE61-00411A		Bracket-duct Rear		Appelez-nous	-
23	DE63-00141A		Cover-motor		Appelez-nous	-
24	555555		Motor Fan   (Replaces: DE31-10177E)				$ 168.82
25	DE31-90051A		Blade-fan				$ 7.72
26	DE96-00268A		Assy Base Plate;smh7175,b/plat		Appelez-nous	-
27	DE60-20066A		Bolt-flat			Immediately	$ 22.91
28	DE60-20022A		Bolt-toggle				$ 20.75
29	DE60-30063A		Nut-mounting				$ 12.63
30	DE60-10111A		Screw-lag				$ 19.53
31	DE63-10011A		Grommet				$ 2.26
32	DE26-20144A		Trans-l.v				$ 98.34

    View Diagram in Separate Window       Print Part List
