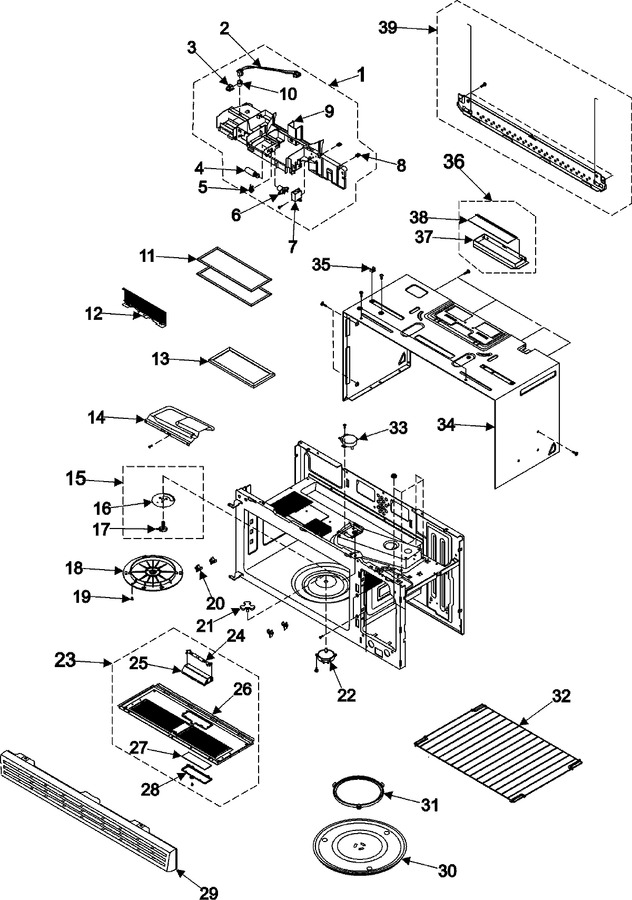

01 - Body/cavity/elements
02 - Control Panel/door Assembly
03 - Internal Control/latch Asy/base
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE97-00371A | Assy-duct Upper(sub) |
|
- | |||||
| 2 | DE39-40678A | Wire Harness-s |
|
$ 32.34 | |||||
| 3 | DE61-90111A | Holder-sensor |
|
$ 0.98 | |||||
| 4 | 4713-001013 | Lamp-incandescent |
|
Immediately | $ 20.00 | ||||
| 5 | 555555 | Sw-thermo (Replaces: DE47-20059A) |
|
$ 168.82 | |||||
| 6 | DE47-00006A | Holder-lamp |
|
$ 19.53 | |||||
| 7 | DE59-50002A | Capacitor-motor |
|
Immediately | $ 30.38 | ||||
| 8 | DE60-30063A | Nut-mounting |
|
$ 12.63 | |||||
| 9 | DE67-00168A | Duct-upper |
|
- | |||||
| 10 | DE32-60013A | Sensor-gas |
|
$ 105.22 | |||||
| 11 | DE63-00196A | Filter-air |
|
Immediately | $ 16.41 | ||||
| 12 | DE63-00138A | Cover-front |
|
- | |||||
| 13 | 555555 | Filter-charcoal (Replaces: DE63-30016D) |
|
$ 168.82 | |||||
| 14 | DE97-00411A | Assy-bkt Duct Upper |
|
- | |||||
| 15 | DE97-00367A | Assy-stirrer;smh7175,h/stirrer |
|
$ 22.31 | |||||
| 16 | DE31-00023A | Blade-stirrer |
|
$ 113.25 | |||||
| 17 | DE61-00505A | Holder-stirrer |
|
$ 119.94 | |||||
| 18 | DE71-60121A | Cover-stirrer |
|
$ 18.69 | |||||
| 19 | DE66-20095B | Button-lock |
|
$ 19.53 | |||||
| 20 | DE61-00375A | Holder-rack |
|
$ 19.53 | |||||
| 21 | DE67-00179A | Coupler |
|
Immediately | $ 25.88 | ||||
| 22 | 555555 | Motor, Drive (Replaces: DE31-10172A) |
|
$ 168.82 | |||||
| 23 | DE97-00360A | Assy-base Bottom;smh7175bc,inc |
|
- | |||||
| 24 | 4713-001013 | Lamp-incandescent |
|
Immediately | $ 20.00 | ||||
| 25 | DE61-00407A | Bracket-bottom Lamp |
|
$ 19.53 | |||||
| 26 | DE61-00406A | Base-bottom |
|
- | |||||
| 27 | DE64-00911A | Glass-cooktop Lamp |
|
$ 20.00 | |||||
| 28 | DE63-00137A | Cover-glass Cooktop ----sna |
|
$ 34.10 | |||||
| 29 | DE64-00755A | Grille |
|
- | |||||
| 31 | DE97-00368A | Assy-guide Roller |
|
Immediately | $ 39.06 | ||||
| 32 | DE97-00369A | Assy-wire Rack |
|
$ 114.29 | |||||
| 33 | DE31-10173A | Motor-drive |
|
$ 60.97 | |||||
| 34 | DE64-00754A | Panel-outer (blk) |
|
$ 17.58 | |||||
| 35 | DE92-90508A | Assy-holder Nut |
|
Immediately | $ 19.53 | ||||
| 36 | 555555 | Assy-hood Damper (Replaces: DE92-90242A) |
|
$ 168.82 | |||||
| 37 | DE72-40022A | Damper-main |
|
Immediately | $ 13.41 | ||||
| 38 | DE71-60051A | Cover-damper |
|
$ 25.88 | |||||
| 39 | DE97-00363A | Assy-mounting Plate |
|
$ 24.90 |
