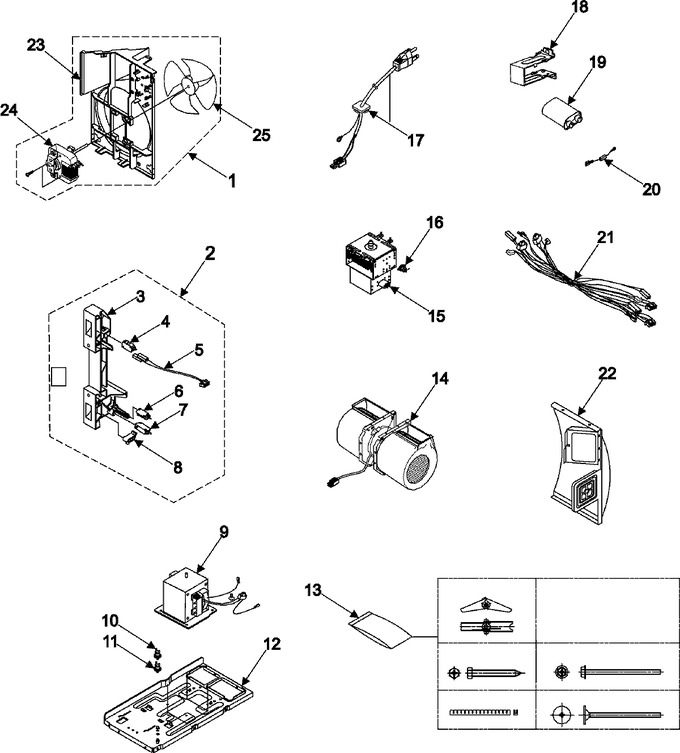

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE97-00365A | Assy-cover Motor |
|
$ 70.76 | |||||
| 2 | DE96-00082A | Assy Body Latch |
|
- | |||||
| 3 | DE66-00084B | Latch-body (Replaces: DE66-00084A) |
|
$ 45.53 | |||||
| 4 | 3405-001034 | Switch, Micro (125/250 Vac) |
|
Immediately | $ 16.50 | ||||
| 5 | DE39-40674A | Wire Harness-b |
|
- | |||||
| 6 | 3405-001033 | Switch-micro |
|
Immediately | $ 19.53 | ||||
| 7 | 3405-001034 | Switch, Micro (125/250 Vac) |
|
Immediately | $ 16.50 | ||||
| 8 | DE66-90106B | Lever-switch Lower |
|
$ 19.53 | |||||
| 9 | DE26-00082A | Trans-h.v |
|
$ 181.71 | |||||
| 10 | DE47-20034A | Thermostat |
|
Immediately | $ 22.32 | ||||
| 11 | 555555 | Sw-thermo (Replaces: DE47-20059A) |
|
$ 168.82 | |||||
| 12 | DE61-00415A | Base-plate |
|
- | |||||
| 13 | DE92-90505E | Assy-hard Ware |
|
$ 46.00 | |||||
| 14 | DE31-00029A | Motor Ventilation |
|
- | |||||
| 15 | W10126785 | Assy-magnetron |
|
- | |||||
| 16 | 555555 | Thermostat (Replaces: DE47-20007A) |
|
$ 168.82 | |||||
| 17 | DE96-00218A | Assy-power Cord |
|
$ 87.50 | |||||
| 18 | DE61-00115A | Bracket-hvc |
|
$ 20.00 | |||||
| 19 | 2501-001011 | Capacitor |
|
Immediately | $ 82.41 | ||||
| 20 | DE91-70063D | Assy-h.v.d. (Replaces: DE91-70063A) |
|
Immediately | $ 17.65 | ||||
| 21 | DE39-00024B | Wire Harness-a |
|
- | |||||
| 22 | DE61-00411A | Bracket-duct Rear |
|
- | |||||
| 23 | DE63-00141A | Cover-motor |
|
- | |||||
| 24 | 555555 | Motor Fan (Replaces: DE31-10177E) |
|
$ 168.82 | |||||
| 25 | DE31-90051A | Blade-fan |
|
$ 7.72 |
