01 - Body/cavity/elements


02 - Ctrl Panel/door Asy-smh7178ste


03 - Internal Control/latch Asy/base

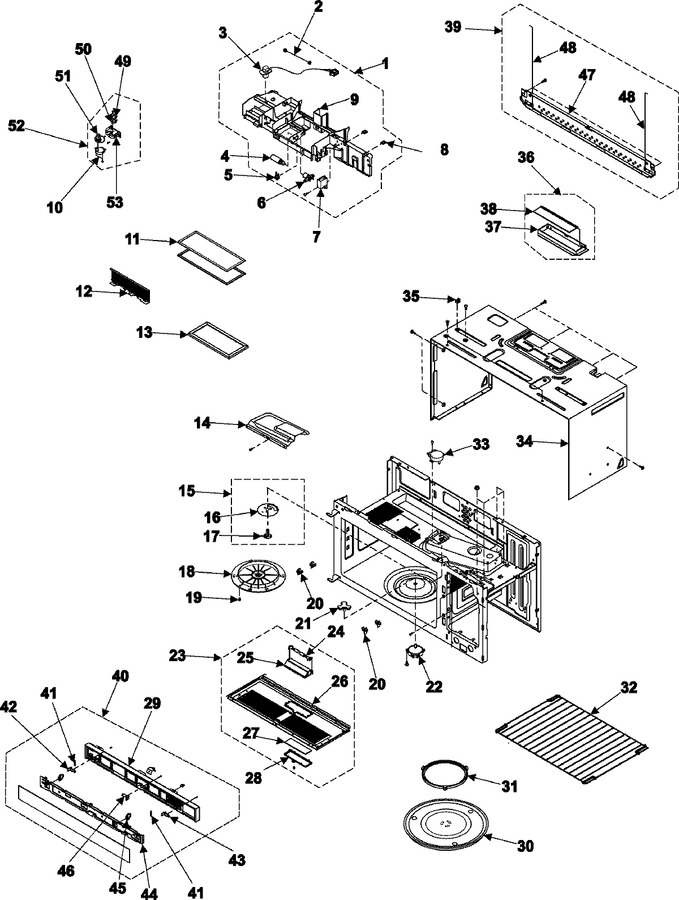

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE97-00371B		Assy-duct Upper(sub);jmv8186,h		Appelez-nous	-
2	DE39-40673F		Wire Harness-h;smh7175we/xaa,-		Appelez-nous	-
3	DE39-30099A		Assy Wire Lead-f;l140 Jvm-1340		Appelez-nous	-
4	4713-001013		Lamp-incandescent			Immediately	$ 20.00
5	555555		Sw-thermo   (Replaces: DE47-20059A)				$ 168.82
6	DE47-00006A		Holder-lamp				$ 19.53
7	DE59-50002A		Capacitor-motor			Immediately	$ 30.38
8	DE60-30063A		Nut-mounting				$ 12.63
9	DE67-00168A		Duct-upper		Appelez-nous	-
10	DE31-10154C		Motor-drive				$ 62.31
11	DE63-00196A		Filter-air			Immediately	$ 16.41
12	DE63-00138A		Cover-front		Appelez-nous	-
13	555555		Filter-charcoal   (Replaces: DE63-30016D)				$ 168.82
14	DE97-00411A		Assy-bkt Duct Upper		Appelez-nous	-
15	DE97-00367A		Assy-stirrer;smh7175,h/stirrer				$ 22.31
16	DE31-00023A		Blade-stirrer				$ 113.25
17	DE61-00505A		Holder-stirrer				$ 119.94
18	DE71-60121A		Cover-stirrer				$ 18.69
19	DE66-20095B		Button-lock				$ 19.53
20	DE61-00375A		Holder-rack				$ 19.53
21	DE67-00179A		Coupler			Immediately	$ 25.88
22	555555		Motor, Drive   (Replaces: DE31-10172A)				$ 168.82
23	DE97-00360A		Assy-base Bottom;smh7175bc,inc		Appelez-nous	-
24	4713-001013		Lamp-incandescent			Immediately	$ 20.00
25	DE61-00407A		Bracket-bottom Lamp				$ 19.53
26	DE61-00406B		Base-bottom				$ 103.96
27	DE64-00911A		Glass-cooktop Lamp				$ 20.00
28	DE63-00137B		Cover-glass Cooktop				$ 28.25
29	DE64-01294A		Grille;smh7178,pc,t2.5,w75,l75		Appelez-nous	-
30	DE74-20002A		Tray-cooking				$ 120.31
31	DE97-00368A		Assy-guide Roller			Immediately	$ 39.06
32	DE97-00369A		Assy-wire Rack				$ 114.29
33	DE31-10173A		Motor-drive				$ 60.97
34	DE64-00754A		Panel-outer (blk)				$ 17.58
35	DE92-90508A		Assy-holder Nut			Immediately	$ 19.53
36	555555		Assy-hood Damper   (Replaces: DE92-90242A)				$ 168.82
37	DE72-40022A		Damper-main				$ 13.41
38	DE71-60051A		Cover-damper				$ 25.88
39	DE97-00363A		Assy-mounting Plate				$ 24.90
40	DE97-00496A		Assy-grille;smh7178,-,-,-		Appelez-nous	-
41	DE61-00527A		Spring Etc-louver;jvm-2070,hsw				$ 18.69
42	DE61-00129A		Hinge-grille(l)				$ 18.69
43	DE61-00128A		Hinge-grille(r)				$ 18.69
44	DE97-00497A		Assy-cover Grille;smh7178,chas		Appelez-nous	-
45	DE61-00150A		Bracket-barrier Gr				$ 19.53
46	DE61-00177A		Hinge-grille(m)				$ 19.53
47	DE66-00121A		Wire-mounting				$ 17.88
48	555555		Plate-mounting   (Replaces: DE70-00378A)				$ 168.82
49	3405-001050		Switch-micro				$ 30.38
50	3405-001051		Switch-micro		Appelez-nous	-
51	DE72-00145A		Cam-louver				$ 14.81
52	DE97-00181A		Assy-cam Louver;jvm-1860,assem		Appelez-nous	-
53	DE61-00118A		Bracket-cam Plate		Appelez-nous	-
