View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet Parts
02 - Liner Parts
03 - Door Parts
04 - Unit Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

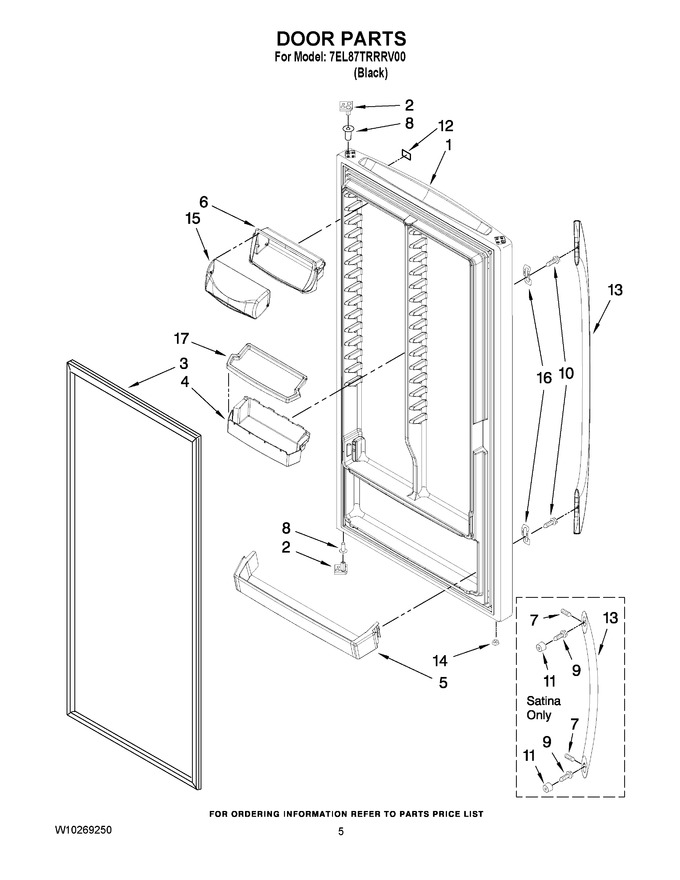

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8210354 | Exterior Door (includes Interior Liner) (black) |
|
$ 326.35 | |||||
| 2 | W10206524 | Stop, Door (top) (black) |
|
$ 32.71 | |||||
| 3 | 8210343 | Gasket (black) |
|
$ 347.13 | |||||
| 4 | 8210380 | Bin, Door |
|
- | |||||
| 5 | 8210379 | Rail, Door (lower) |
|
- | |||||
| 6 | 8210381 | Housing, Dairy Compartment |
|
- | |||||
| 7 | 8533976 | Screw, Set |
|
$ 8.35 | |||||
| 8 | 4390869 | Bushing, Hinge (black) |
|
- | |||||
| 9 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 10 | WP489491 | Screw (Replaces: 489491) |
|
$ 6.57 | |||||
| 11 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 9.12 | ||||
| 12 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 83.86 | ||||
| 13 | 2317777S | Handle (stainless Steel (includes Item 8)) |
|
- | |||||
| 14 | 3-24898-007 | Vent Plug (Replaces: 4357067) |
|
$ 10.21 | |||||
| 15 | 8210382 | Door, Compartment |
|
- | |||||
| 16 | WP2255411 | Clip, Handle (Replaces: 2255411) |
|
$ 32.90 | |||||
| 17 | 8210383 | Cover, Bin |
|
$ 35.04 |
