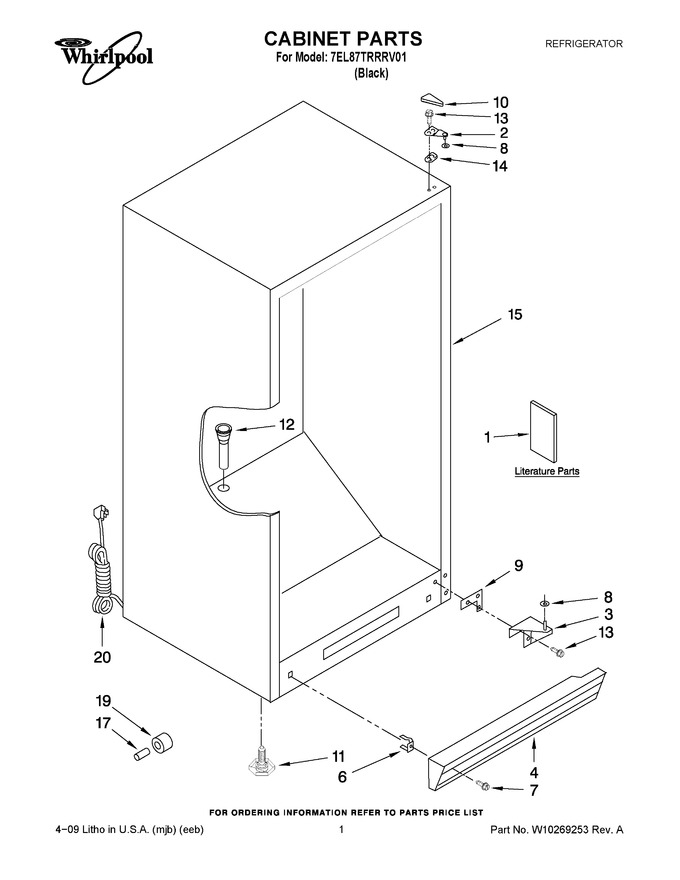

01 - Cabinet Parts
02 - Liner Parts
03 - Door Parts
04 - Unit Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10206525 | Owners Manual |
|
- | |||||
| 1 | W10206526 | Energy Guide/tag |
|
- | |||||
| 2 | 8210251 | Top Hinge (black) |
|
$ 159.95 | |||||
| 3 | 8210268 | Bottom Hinge (black) |
|
$ 59.33 | |||||
| 4 | 8210294 | Grille (includes 6 & 7) (black) |
|
$ 82.87 | |||||
| 8 | W10851331 | Washer (Replaces: 4390520) |
|
$ 10.57 | |||||
| 9 | 4390489 | Shim, Bottom |
|
$ 7.30 | |||||
| 10 | 4390763 | Cover, Hinge (black) |
|
$ 31.92 | |||||
| 11 | W11117769 | Leg, Leveller (Replaces: 4390866) |
|
Immediately | $ 19.37 | ||||
| 12 | W10164544 | Grommet, Drain |
|
- | |||||
| 13 | WP8204624 | Screw (Replaces: 4356830) |
|
$ 17.48 | |||||
| 14 | 4390489 | Shim, Hinge |
|
$ 7.30 | |||||
| 17 | 4390755 | Axle |
|
$ 13.86 | |||||
| 19 | 3-60315-001 | Roller, Front (Replaces: 4390754) |
|
$ 32.89 | |||||
| 20 | W10269499 | Powercord |
|
- |
