SELECT A DIAGRAM

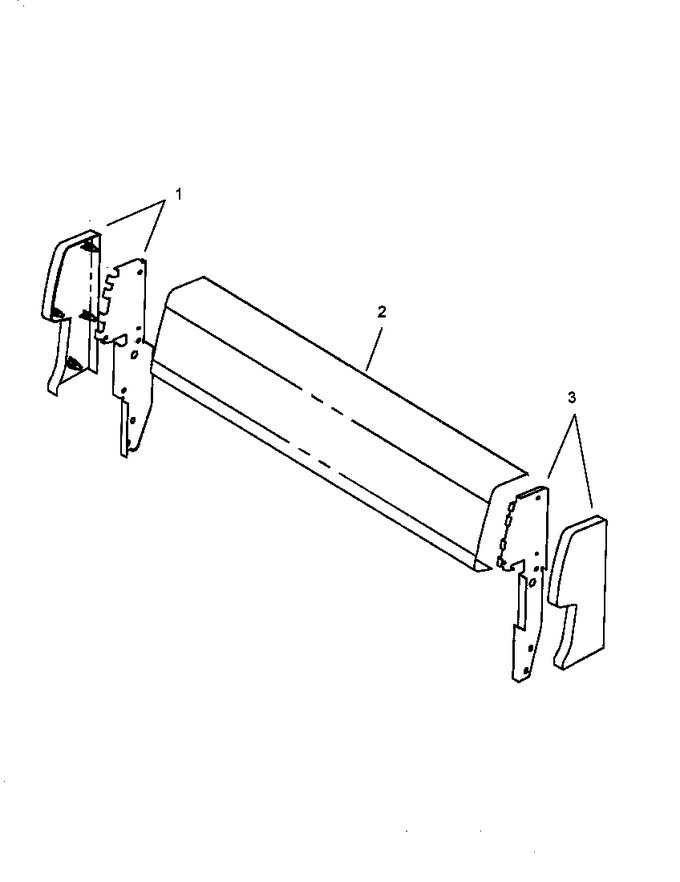

01 - Backguard Assy
02 - Cabinet Assy
03 - Main Top Assy
04 - Oven Components
05 - Solid Oven Door Assy
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y07712605 | End Cap, Bkgd 4`` L.h. |
|
- | |||||
| 2 | Y06565715W | Pnl, Filler 4x30 |
|
- | |||||
| 3 | Y07712604 | End Cap, Bkgd 4`` R.h. |
|
- | |||||
| NI | WP7101P126-60 | Screw, No.10-12 X 500`` Ab (zn) (Replaces: Y01063001) |
|
Immediately | $ 8.36 | ||||
| NI | Y07712300 | Screw, No.10 X 3/8`` |
|
- |
