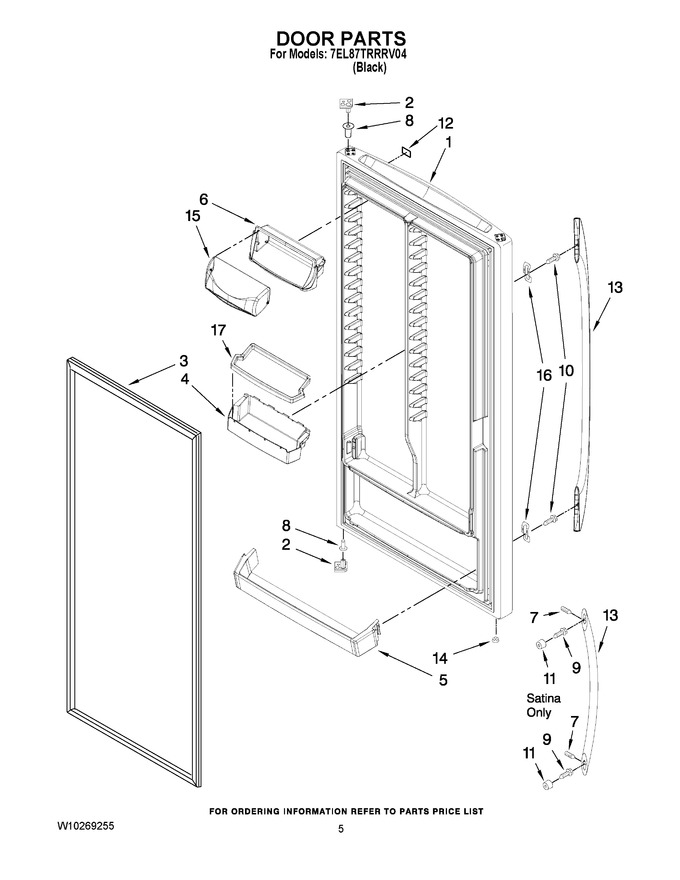

03 - Door Parts


04 - Unit Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8210354		Exterior Door (includes Interior Liner) (black)				$ 326.35
2	W10206524		Stop, Door (top) (black)				$ 32.71
3	8210343		Gasket (black)				$ 385.70
4	W10179592		Bin, Door		Appelez-nous	-
5	8210379		Rail, Door (lower)		Appelez-nous	-
6	8210381		Housing, Dairy Compartment		Appelez-nous	-
7	8533976		Screw, Set				$ 8.35
8	4390869		Bushing, Hinge (black)		Appelez-nous	-
9	WP488163		Screw   (Replaces: 488208)				$ 7.92
10	WP489491		Screw   (Replaces: 489491)				$ 7.30
11	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
12	WP2213265		Nameplat   (Replaces: 2255121)			Immediately	$ 93.18
13	W10202711		Handle (brushed Aluminum (includes Item 8))		Appelez-nous	-
14	3-24898-007		Vent Plug   (Replaces: 4357067)				$ 11.34
15	8210382		Door, Compartment		Appelez-nous	-
16	WP2255411		Clip, Handle   (Replaces: 2255411)				$ 36.55
17	8210383		Cover, Bin				$ 35.04
