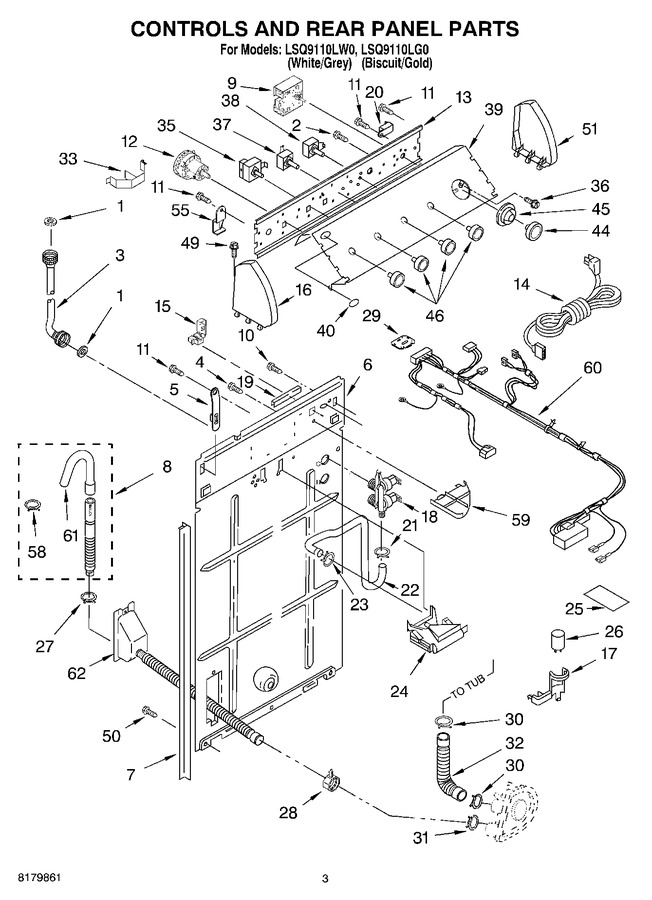

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (4) 1-1/16 X 5/8 (Replaces: 3976300) |
|
$ 8.16 | |||||
| 2 | 3400073 | Screw, Ground |
|
- | |||||
| 3 | WP89503 | Hose, Water Inlet (2) ((red Coupler)) (Replaces: 3949375) |
|
Immediately | $ 24.09 | ||||
| 3 | WP89503 | Hose, Water Inlet (2) ((blue Coupler)) (Replaces: 3949374) |
|
Immediately | $ 24.09 | ||||
| 4 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 5 | WP8568314 | Strap, Console (2) (Replaces: 8318255) |
|
$ 8.17 | |||||
| 6 | 3357978 | Panel, Rear |
|
- | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 27.57 | |||||
| 8 | 285702 | Extension, Drain Hose (21 Inches) (not Included) (Replaces: 3357090) |
|
Immediately | $ 63.94 | ||||
| 8 | 285664 | Hose, Drain (4 Ft.) (Replaces: 3951609) |
|
Immediately | $ 36.89 | ||||
| 8 | 285666 | Hose, Drain (9 Ft.) (not Included) (Replaces: 661577) |
|
Immediately | $ 62.34 | ||||
| 9 | WP3954071 | Timer, Control (60 Hz.) (motor Not A Service Part) (Replaces: 3954071) |
|
$ 331.41 | |||||
| 10 | WP3351614 | Screw (Replaces: 3351614) |
|
Immediately | $ 7.30 | ||||
| 11 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 12 | W10337780 | Switch, Water Level (Replaces: 3366847) |
|
Immediately | $ 88.20 | ||||
| 13 | WP3948608 | Bracket, Control (Replaces: 3948608) |
|
$ 122.00 | |||||
| 14 | W10820044 | Cord, Power (Replaces: 3948063) |
|
$ 149.87 | |||||
| 15 | 3952821 | Strain Relief, Power Cord |
|
- | |||||
| 16 | 8271368 | Cap, End (l.h.) (biscuit) |
|
- | |||||
| 16 | 8271365 | Cap, End (l.h.) (white) |
|
- | |||||
| 17 | 8318201 | Clip, Capacitor |
|
- | |||||
| 18 | WP3979346 | Valve, Water Inlet & Thermistor Assy. (Replaces: 3979346) |
|
Immediately | $ 76.88 | ||||
| 19 | 303294 | Edge Protector |
|
- | |||||
| 20 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 21 | WP596669 | Clamp, Hose (Replaces: 370451) |
|
Immediately | $ 8.82 | ||||
| 22 | WP8317926 | Hose, Vacuum Break (Replaces: 8317926) |
|
Immediately | $ 24.87 | ||||
| 23 | WP596669 | Clamp, Hose (Replaces: 371503) |
|
Immediately | $ 8.82 | ||||
| 24 | WP3360977 | Break, Vacuum (Replaces: 387606) |
|
Immediately | $ 50.46 | ||||
| 25 | 3976286 | Shield, Capacitor |
|
- | |||||
| 26 | WP8572720 | Capacitor, Motor Start (Replaces: 661605) |
|
$ 134.20 | |||||
| 27 | WP356138 | Clamp, Hose (Replaces: 3366912) |
|
Immediately | $ 8.52 | ||||
| 28 | 3976395 | Clamp, Hose |
|
$ 11.96 | |||||
| 29 | 3407125 | Control, Etc |
|
- | |||||
| 30 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 8.58 | ||||
| 31 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.81 | ||||
| 32 | 285871 | Hose, Pump To Tub (includes No.30) (Replaces: 3951449) |
|
Immediately | $ 28.99 | ||||
| 33 | 8055003 | Clip, Harness & Pressure Hose |
|
$ 36.24 | |||||
| 35 | W10168360 | Switch, Water Temperature (Replaces: 3955774) |
|
$ 146.23 | |||||
| 36 | WP3400064 | Screw, Timer Mounting (2) (Replaces: 3400064) |
|
$ 7.30 | |||||
| 37 | WPW10168257 | Switch-rotary (Replaces: 3949180) |
|
$ 140.00 | |||||
| 38 | WPW10168262 | Switch, Rotary (Replaces: 3949187) |
|
$ 136.25 | |||||
| 39 | 3955800 | Panel, Console (grey (includes No.40)) |
|
- | |||||
| 39 | 3955801 | Panel, Console (gold (includes No.40)) |
|
- | |||||
| 40 | 3955775 | Medallion |
|
- | |||||
| 44 | 8538951 | Knob, Timer ((for Lsq9110lg0)) |
|
- | |||||
| 44 | 8538950 | Knob, Timer ((for Lsq9110lw0)) |
|
$ 26.59 | |||||
| 45 | 8538956 | Dial, Timer ((for Lsq9110lg0)) |
|
- | |||||
| 45 | WP8538955 | Dial, Timer ((for Lsq9110lw0)) (Replaces: 8538955) |
|
$ 55.68 | |||||
| 46 | WP8538957 | Knob, Control ((for Lsq9110lw0)) (Replaces: 8538957) |
|
$ 58.53 | |||||
| 46 | 8538958 | Knob, Control ((for Lsq9110lg0)) |
|
- | |||||
| 49 | WP388326 | Screw, 8-18 X 1.25 (panel To Top) (Replaces: 388326) |
|
$ 9.29 | |||||
| 50 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 8.25 | |||||
| 51 | 8271362 | Cap, End (r.h.) (biscuit) |
|
- | |||||
| 51 | 8271359 | Cap, End (r.h.) (white) |
|
- | |||||
| 55 | 8283343 | Retainer, Harness |
|
- | |||||
| 58 | WP3357331 | Clamp, Hose (Replaces: 3366913) |
|
$ 8.19 | |||||
| 59 | 3348424 | Shield, Suds |
|
- | |||||
| 60 | 3956008 | Harness, Wiring (for Detail See Parts Page) |
|
- | |||||
| 61 | WP3357027 | Nozzle-drain Hose (Replaces: 3357027) |
|
$ 97.86 | |||||
| 62 | WPW10358149 | Drain Hose Assembly (Replaces: 8317940) |
|
Immediately | $ 48.16 |
