SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Deli, Shelf, And Crisper Assemblies


04 - Drain System, Rollers, And Evap Assy


05 - Fz Door


06 - Fz Shelves And Light


07 - Ice & Water Cav/elec Brkt/& Toe Grille


08 - Ice Bucket Auger And Ice Maker Parts


09 - Ice Maker/control Assy


10 - Machine Compartment


11 - Ref Door And Accessories


12 - Ref/fz Shelves, Lights, And Hinges

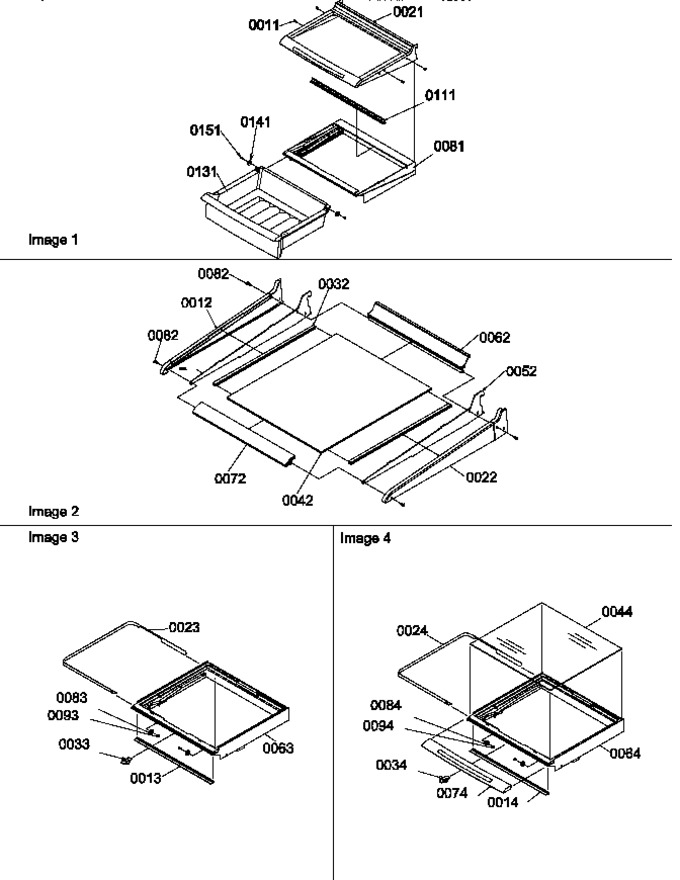

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	M0238229		Screw		Appelez-nous	-
12	10436603		Cover, Glass Shelf Rail		Appelez-nous	-
13	10968801		Seal-crisp Front		Appelez-nous	-
14	10968801		Seal-crisp Front		Appelez-nous	-
21	10809604		Shelf-full Sta		Appelez-nous	-
22	10436604		Cover, Glass Shelf Rail		Appelez-nous	-
23	10882701		Band, Crisper		Appelez-nous	-
24	10882701		Band, Crisper		Appelez-nous	-
32	10562502		Ext, Gl Shelf Side		Appelez-nous	-
33	10852501		Slide, Crisper/deli		Appelez-nous	-
34	10852501		Slide, Crisper/deli		Appelez-nous	-
42	10370095		Glass-shelf		Appelez-nous	-
44	Y10370066		Glass, Shelf		Appelez-nous	-
52	10681402		Rail, Pntd		Appelez-nous	-
62	10436904		Extr-gl Shlf Rear		Appelez-nous	-
63	10782901		Frame,crisper		Appelez-nous	-
64	10782901		Frame,crisper		Appelez-nous	-
72	10436812		Extr-gl Shlf Front		Appelez-nous	-
74	12113003		Trim-crisper Fr		Appelez-nous	-
81	10783803		Frame, Deli		Appelez-nous	-
82	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
83	10481001		Roller, Pan				$ 10.99
84	10481001		Roller, Pan				$ 10.99
93	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
94	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
111	10876302		Director-deli		Appelez-nous	-
131	10784201		Pan, Deli		Appelez-nous	-
141	10481001		Roller, Pan				$ 10.99
151	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79

    View Diagram in Separate Window       Print Part List
