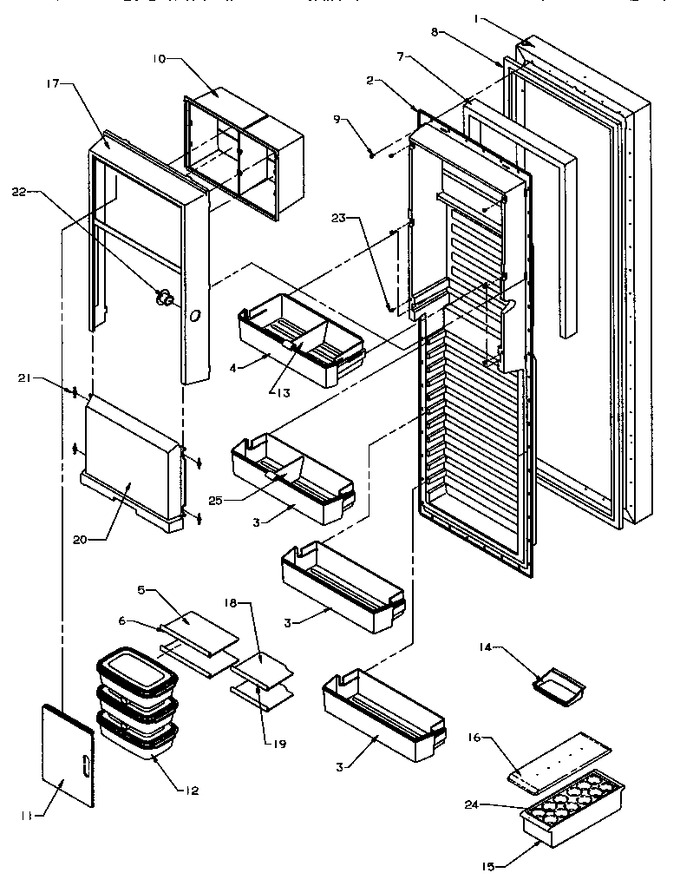

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10057509L		Assy Ref. Door Fm		Appelez-nous	-
2	10111302		Liner Ref Door		Appelez-nous	-
3	10111104		Ref Dr Bucket		Appelez-nous	-
4	10111006		Bucket, Igloo		Appelez-nous	-
5	10161902		Ass``y, Shelf		Appelez-nous	-
6	10162004		Ass``y, Shelf		Appelez-nous	-
7	B0523563		Insulation Ft. K		Appelez-nous	-
8	10359701		Gasket, Door (w Ref)		Appelez-nous	-
9	M0219730		Screw				$ 7.65
10	10154801		Cavity Dairy		Appelez-nous	-
11	10161611		Door, Dairy		Appelez-nous	-
12	D7806405		Container Sec. Ser.		Appelez-nous	-
13	10169005		Snugger, Shelf		Appelez-nous	-
14	10310901		Tray, Butter		Appelez-nous	-
15	10423127		Bin, Egg		Appelez-nous	-
16	10436404		Lid, Utility				$ 60.85
17	10154902		Frame, Igloo/dairy		Appelez-nous	-
18	10161901		Ass`y, Shelf Remove		Appelez-nous	-
19	10162003		Ext. Hz Dairy Shelf		Appelez-nous	-
20	10111809		Door, Igloo		Appelez-nous	-
21	10162101		Glide-igloo Door		Appelez-nous	-
22	10165001		Tunnel-air		Appelez-nous	-
23	10165101		Clip-tubular		Appelez-nous	-
24	10436504		Tray, Egg		Appelez-nous	-
25	10169004		Snugger, Shelf		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
