SELECT A DIAGRAM

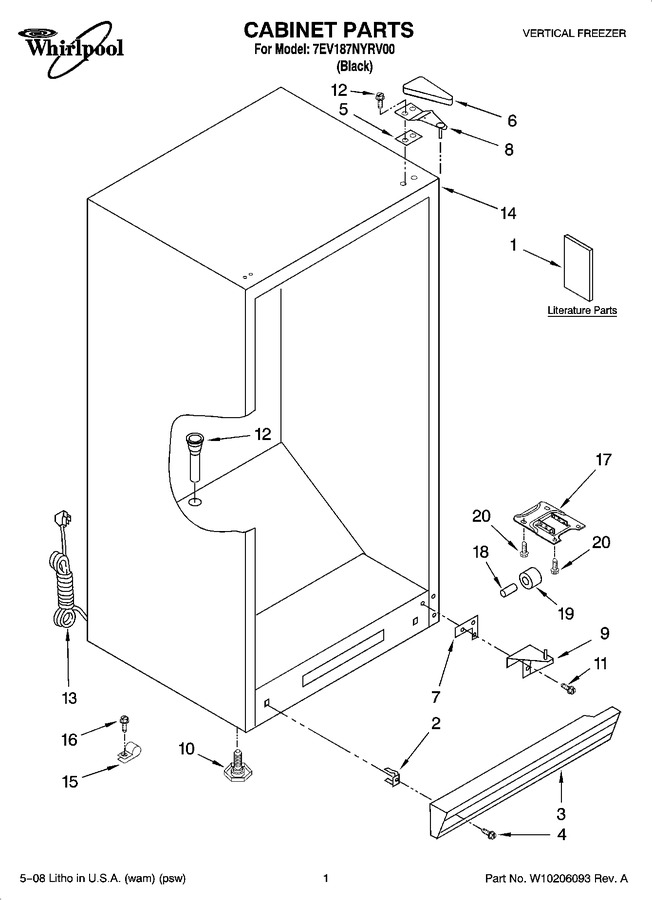

01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts


04 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10206097		Owners Manual		Appelez-nous	-
1	W10206098		Energy Label/tag		Appelez-nous	-
2	1-80247-101		Clip, Grille   (Replaces: 4356803)			Immediately	$ 11.50
3	8210294		Grille				$ 82.87
4	8210262		Screw		Appelez-nous	-
5	4390489		Shim, Hinge				$ 7.30
6	4390763		Cover, Hinge				$ 31.92
7	4390489		Shim, Bottom				$ 7.30
8	8210251		Hinge, Top				$ 159.95
9	8210235		Hinge, Bottom		Appelez-nous	-
10	W11117769		Leveler Leg Kit   (Replaces: 4390866)			Immediately	$ 19.37
11	W10204670		Screw		Appelez-nous	-
12	W10164544		Grommet, Drain		Appelez-nous	-
13	8210394		Cord, Power (w/wiring Harness)		Appelez-nous	-
15	4357268		Clamp, Tube		Appelez-nous	-
16	8210266		Screw		Appelez-nous	-
17	8210265		Bracket, Roller		Appelez-nous	-
18	4390755		Axle, Front				$ 13.86
19	3-60315-001		Roller, Front   (Replaces: 4390754)				$ 32.89
20	WP3-24838-048		Screw   (Replaces: 4357277)				$ 8.33

    View Diagram in Separate Window       Print Part List
