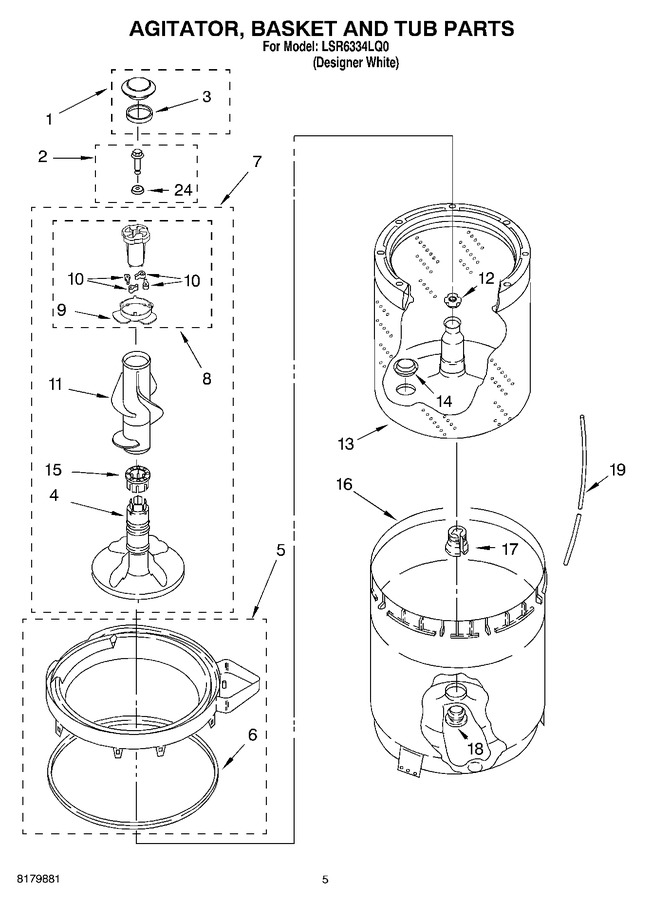

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3362061 | Cap, Agitator (Replaces: 63973) |
|
Immediately | $ 68.66 | ||||
| 2 | WP358237 | Screw & Washer (5-16-24 X 1) (Replaces: 358237) |
|
Immediately | $ 8.86 | ||||
| 3 | WP358912 | Seal-cap (Replaces: 358912) |
|
$ 8.27 | |||||
| 4 | WP389386 | Agitator (Replaces: 389386) |
|
$ 202.44 | |||||
| 5 | W10880720 | Tub Ring & Gasket (Replaces: 8528150) |
|
Immediately | $ 233.34 | ||||
| 6 | WP3976308 | Gasket, Tub Ring (Replaces: 3359585) |
|
Immediately | $ 29.66 | ||||
| 7 | 285727 | Agitator Assembly (complete) (Replaces: 3347674) |
|
Immediately | $ 345.45 | ||||
| 8 | 285748 | Cam-driven (Replaces: 3363662) |
|
Immediately | $ 35.75 | ||||
| 9 | WP3363661 | Bearing, Driven Cam (Replaces: 3363661) |
|
$ 8.23 | |||||
| 10 | 80040 | Dog-agitator (Replaces: 3366877) |
|
Immediately | $ 3.64 | ||||
| 11 | WP3360824 | Auger-agitator (Replaces: 389141) |
|
$ 222.57 | |||||
| 12 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 11.56 | ||||
| 13 | W10389329 | Basket & Balance Ring (also Order No.14) (Replaces: 3951989) |
|
Immediately | $ 318.45 | ||||
| 14 | 285868 | Filter Plug (Replaces: 8522271) |
|
Immediately | $ 22.76 | ||||
| 15 | 285587 | Spacer, Thrust (Replaces: 3350389) |
|
Immediately | $ 4.42 | ||||
| 16 | 63849 | Tub |
|
$ 306.29 | |||||
| 17 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 27.49 | ||||
| 18 | W10814296 | Gasket, Center Post (Replaces: 383727) |
|
Immediately | $ 9.98 | ||||
| 19 | WP353244 | Hose, Pressure Switch (Replaces: 3347780) |
|
Immediately | $ 59.93 | ||||
| 24 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 11.09 |
