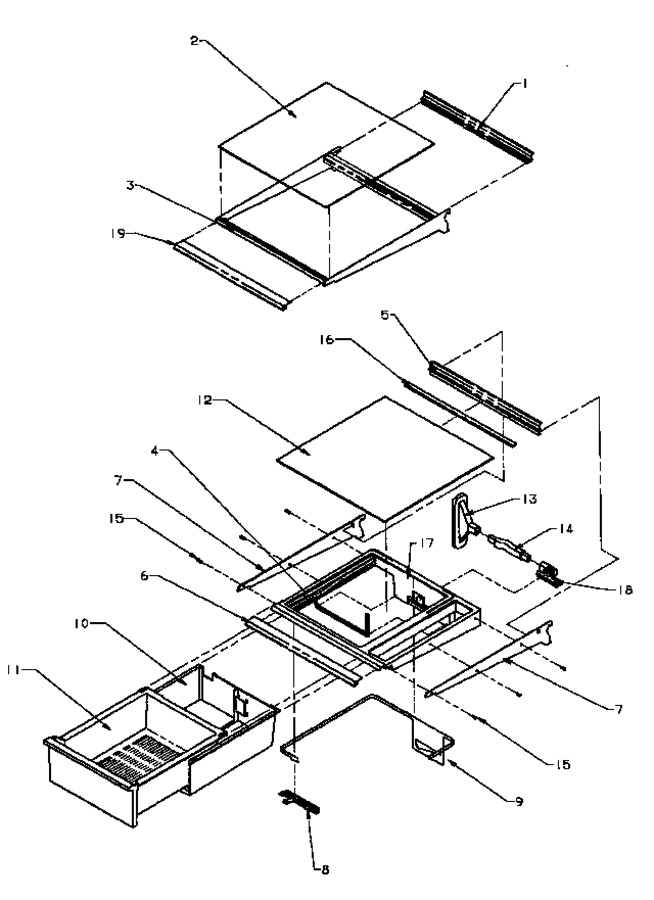

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8913608		Trim		Appelez-nous	-
2	10370023		Glass, Shelf		Appelez-nous	-
3	D7871026		Frame, Cantilever Shelf		Appelez-nous	-
4	A3030353		Gasket		Appelez-nous	-
5	C8990405		Trim, Rear		Appelez-nous	-
6	10049941		Trim, Shelf Frt		Appelez-nous	-
7	D7862993		Rail, Blank Side		Appelez-nous	-
7	D7862992		Rail, Blank Side		Appelez-nous	-
8	D7859402		Slide-mk Control		Appelez-nous	-
9	D7859504		Band M.k. Control		Appelez-nous	-
10	D7698112		Sleeve M.k. V		Appelez-nous	-
11	D7698341		Pan-meat		Appelez-nous	-
12	10370032		Glass Shelf		Appelez-nous	-
13	10546701		Grommet, Meat Keeper		Appelez-nous	-
14	D7869001		Xduct M.k. Air		Appelez-nous	-
15	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
16	10043102		Ext. Rear Glass		Appelez-nous	-
17	D7857005		Frame, M.k		Appelez-nous	-
18	D7869101		Ext. Air Duct		Appelez-nous	-
19	10049949		Trim, Shelf (front)		Appelez-nous	-
NI	10279136		Glass Shelf Assembly		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
